Steering Angle Sensor: Installation
Courtesy of DAIMLERCHRYSLER CORP.

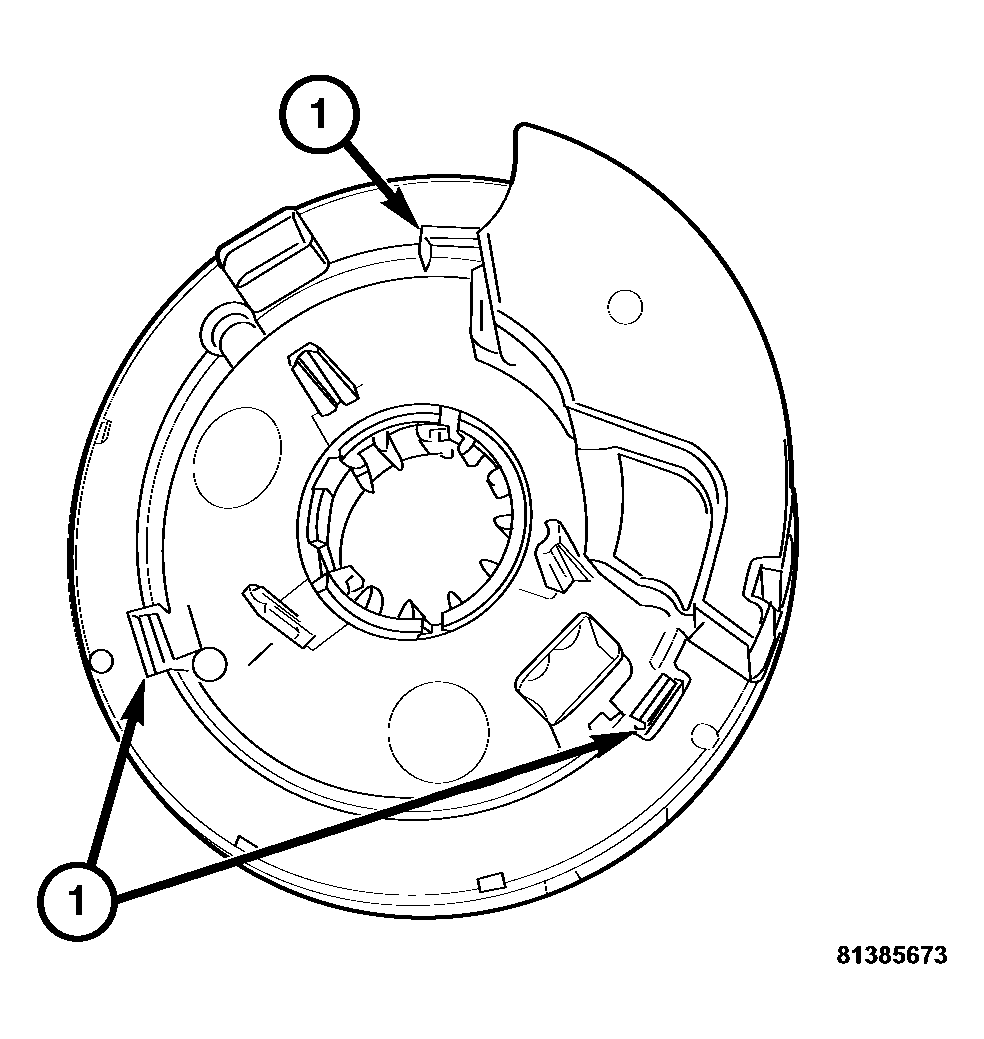

- Locate and align the alignment points on the component housings (1).
- Install the steering angle sensor to the clockspring.
Courtesy of DAIMLERCHRYSLER CORP.
- Snap the steering angle sensor retaining tabs (1) onto the clockspring.
Courtesy of DAIMLERCHRYSLER CORP.
- Install the clockspring onto the steering column. (Refer to ELECTRICAL/RESTRAINTS/CLOCKSPRING - INSTALLATION)
.
