Battery System: Tray: Installation: RHD

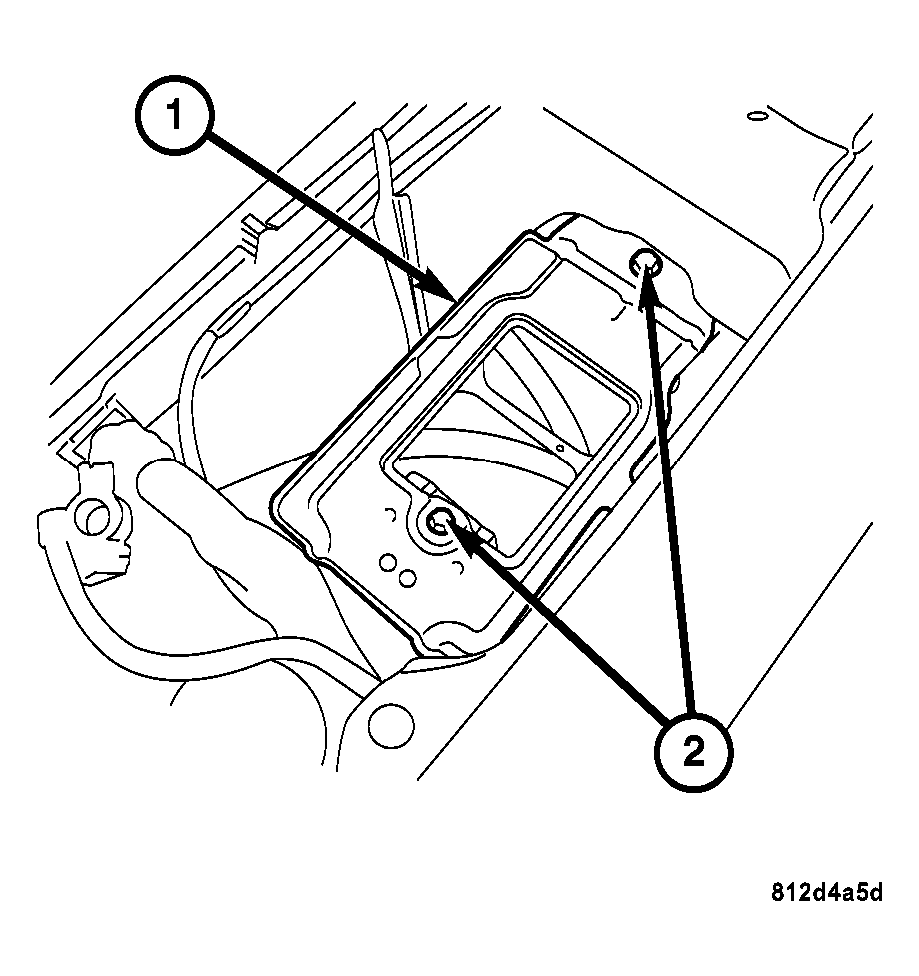

Fig 1: View Of Battery Tray (RHD)

Courtesy of DAIMLERCHRYSLER CORP.

Install the battery tray (1).
Install the battery tray (1) retaining bolts (2). Tighten the bolts to 15 N.m (11 ft. lbs.).
Install the battery. (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - INSTALLATION) .
