Exhaust System: Muffler: Removal: Notes

WARNING: THE NORMAL OPERATING TEMPERATURE OF THE EXHAUST SYSTEM IS VERY HIGH. THEREFORE, NEVER ATTEMPT TO SERVICE ANY PART OF THE EXHAUST SYSTEM UNTIL IT IS COOLED. SPECIAL CARE SHOULD BE TAKEN WHEN WORKING NEAR THE CATALYTIC CONVERTER. THE TEMPERATURE OF THE CONVERTER RISES TO A HIGH LEVEL AFTER A SHORT PERIOD OF ENGINE OPERATION TIME.

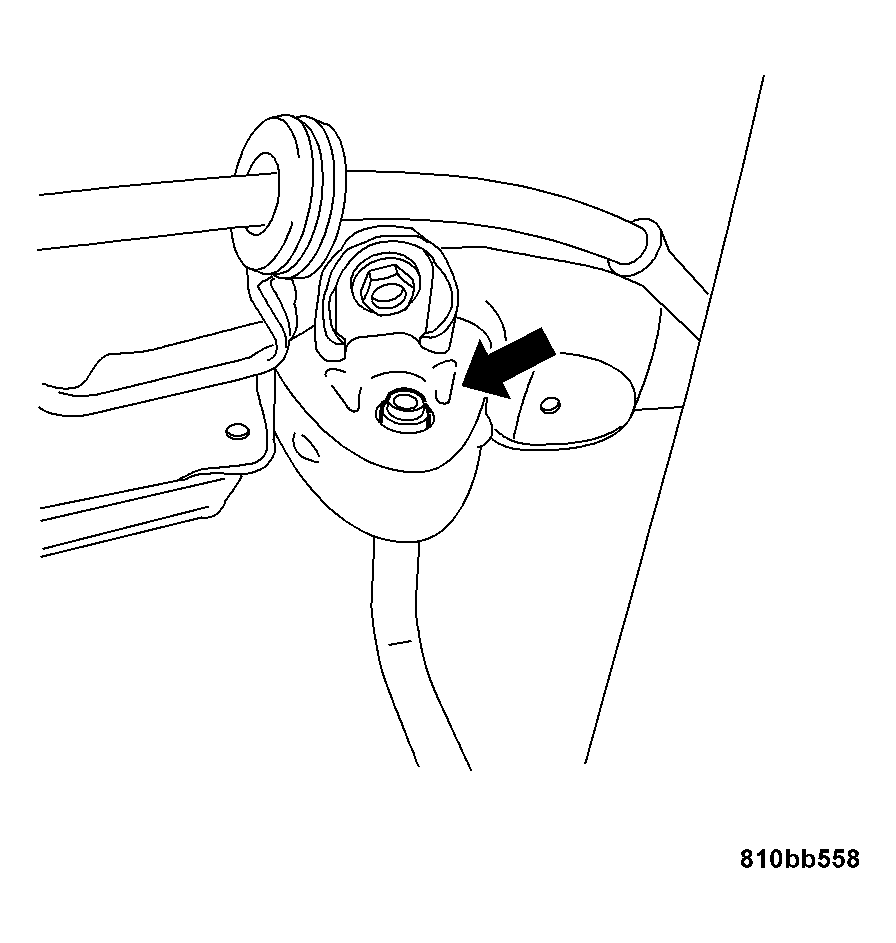

Fig 1: Removing/Installing Bolts From Center Connection Flange

Courtesy of DAIMLERCHRYSLER CORP.

Raise and support vehicle.
Remove the rear support bracket. (Convertible only). (Refer to FRAME & BUMPERS/FRAME/BRACKET - REMOVAL) .
Support the rear section of the exhaust system.
Remove bolts (1) from the center connection flange.

Fig 2: Disconnecting/Connecting Ground Strap At Muffler
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the ground (1) strap at the muffler.

Fig 3: Removing Pipe From Exhaust Hanger
Courtesy of DAIMLERCHRYSLER CORP.
Remove the pipe (1) from the exhaust hanger (2).

Fig 4: Prying Rubber Exhaust Hangers Off Of Bracket
Courtesy of DAIMLERCHRYSLER CORP.
Pry the rubber exhaust hangers (1) off of the bracket.
Remove the muffler with the pipe from the vehicle.
