Accelerator Pedal Position Sensor: Description

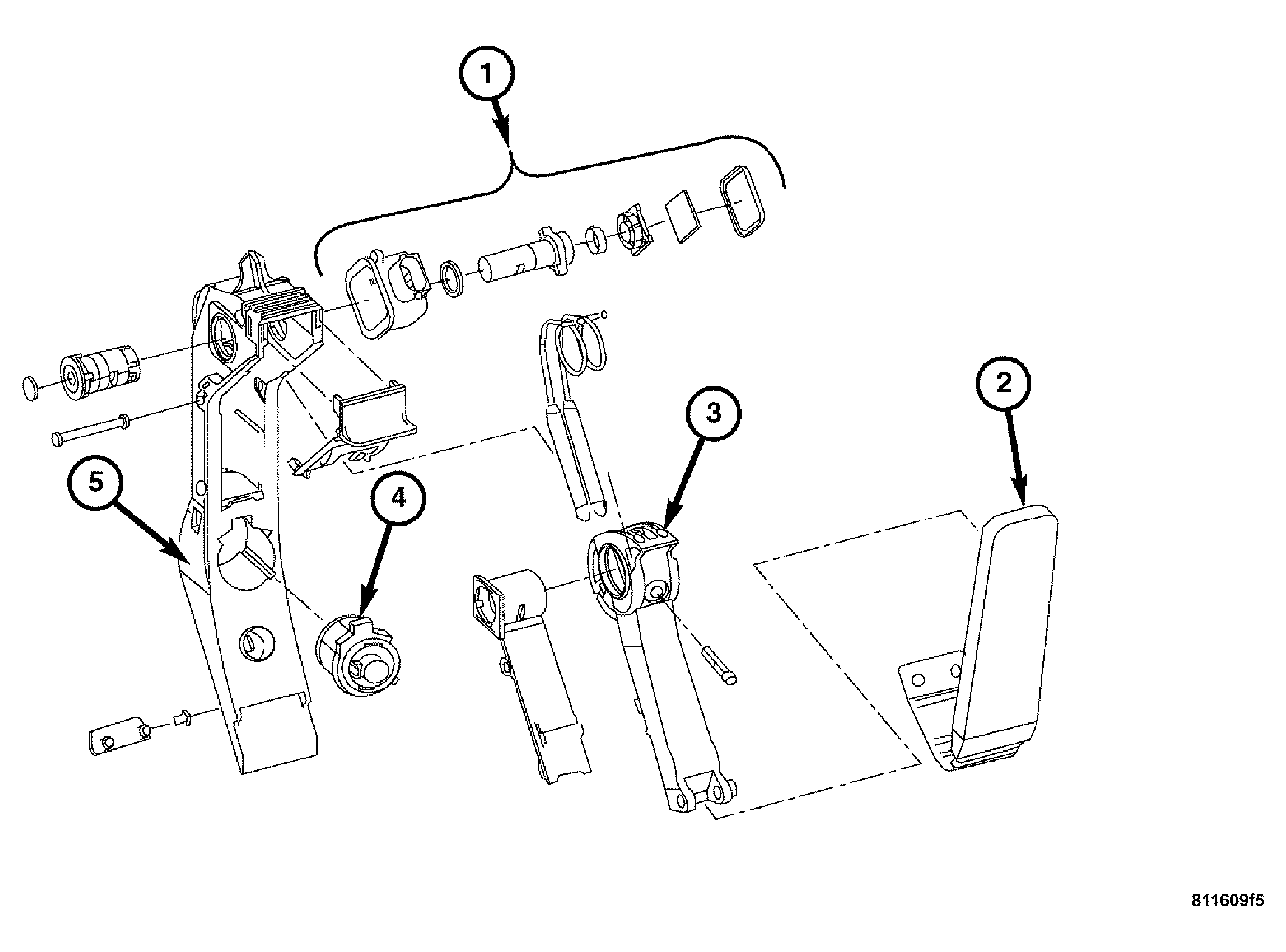

Fig 1: Identifying Accelerator Pedal Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - ACCELERATOR PEDAL POSITION SENSOR

2 - ACCELERATOR PEDAL

3 - PEDAL LEVER

4 - KICKDOWN SIMULATOR

5 - BASE PLATE

The Accelerator Pedal Position Sensor (1) is located inside the Accelerator Pedal. The Accelerator Pedal Position Sensor (1) can not be serviced by itself. The Accelerator Pedal must be replaced as an assembly. (Refer to FUEL SYSTEM/FUEL INJECTION/ACCELERATOR PEDAL - REMOVAL) .
