Fuel Injector: Description
Courtesy of DAIMLERCHRYSLER CORP.

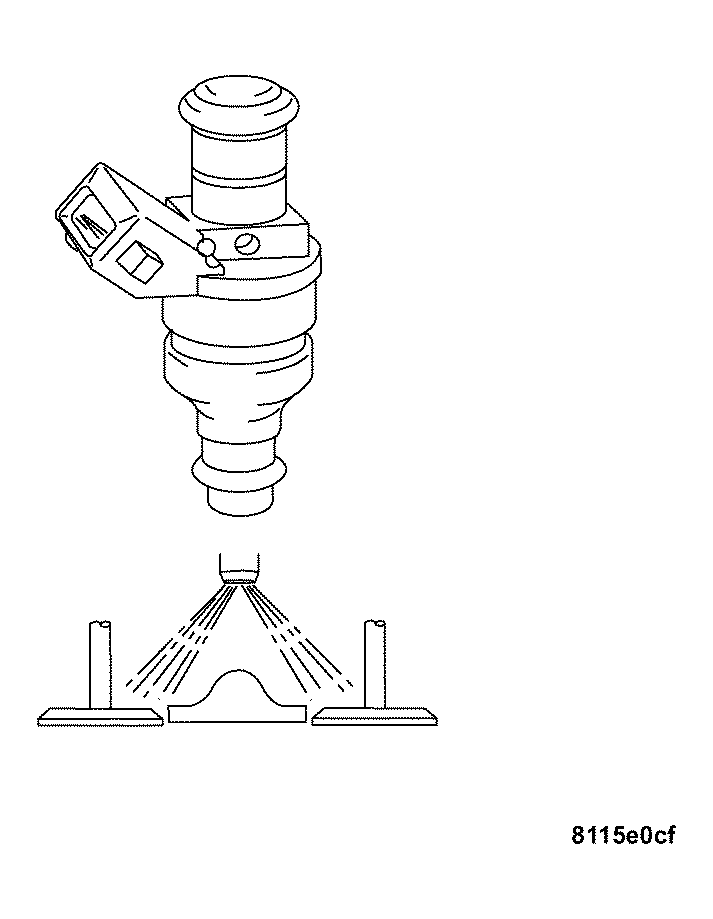

The Fuel Injectors are positioned in the cylinder heads with the nozzle ends directly above the intake valve port. The Fuel Injectors are electrical solenoids controlled by the Powertrain Control Module.
