Exhaust Gas RECIRCULATION Valve: Solenoid: Installation

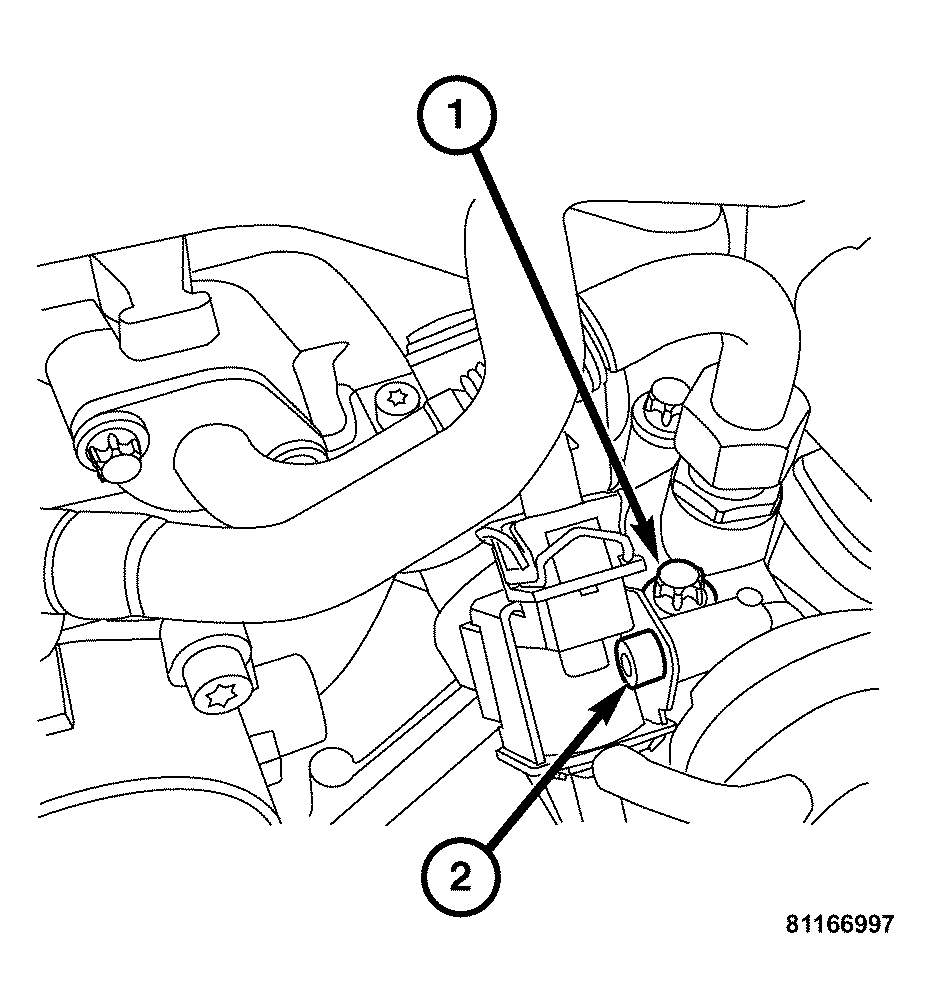

Fig 1: Locating Solenoid Mounting Bolts
GC0033611Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the solenoid to valve and loosely install solenoid to valve bolt (2).
  2. Install the valve bolt (1) to cylinder head. Tighten to 31 N.m (23 ft. lbs.).
  3. Tighten the solenoid to valve bolt (2) to 11 N.m (95 in. lbs.).

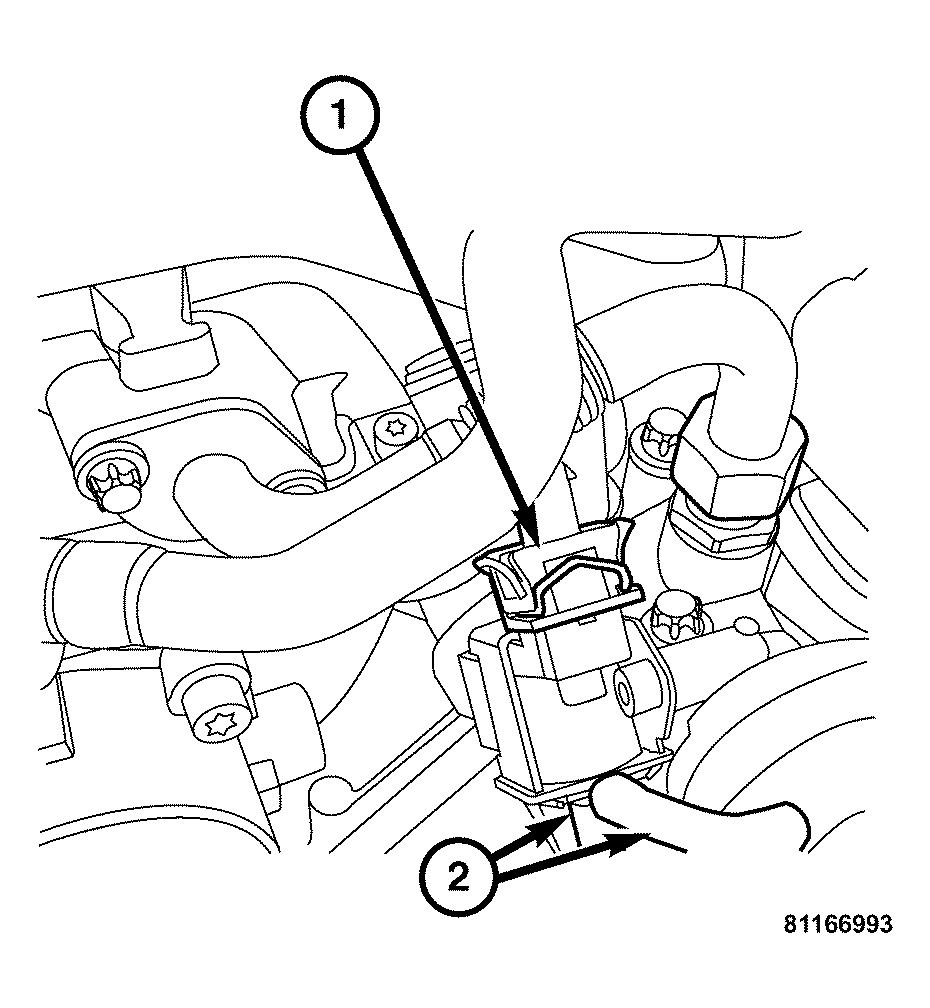

    Fig 2: Locating Solenoid & Vacuum Lines
    GC0033610Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect the vacuum hoses (2).
  5. Connect the EGR solenoid harness connector (1).
  6. Install the air cleaner housing.
  7. Connect the negative battery cable.
