Torque References

Individual torque charts appear within many of the information . Refer to the Standard Torque Specifications Chart (Fig 1) for torque references not listed in the individual torque charts.

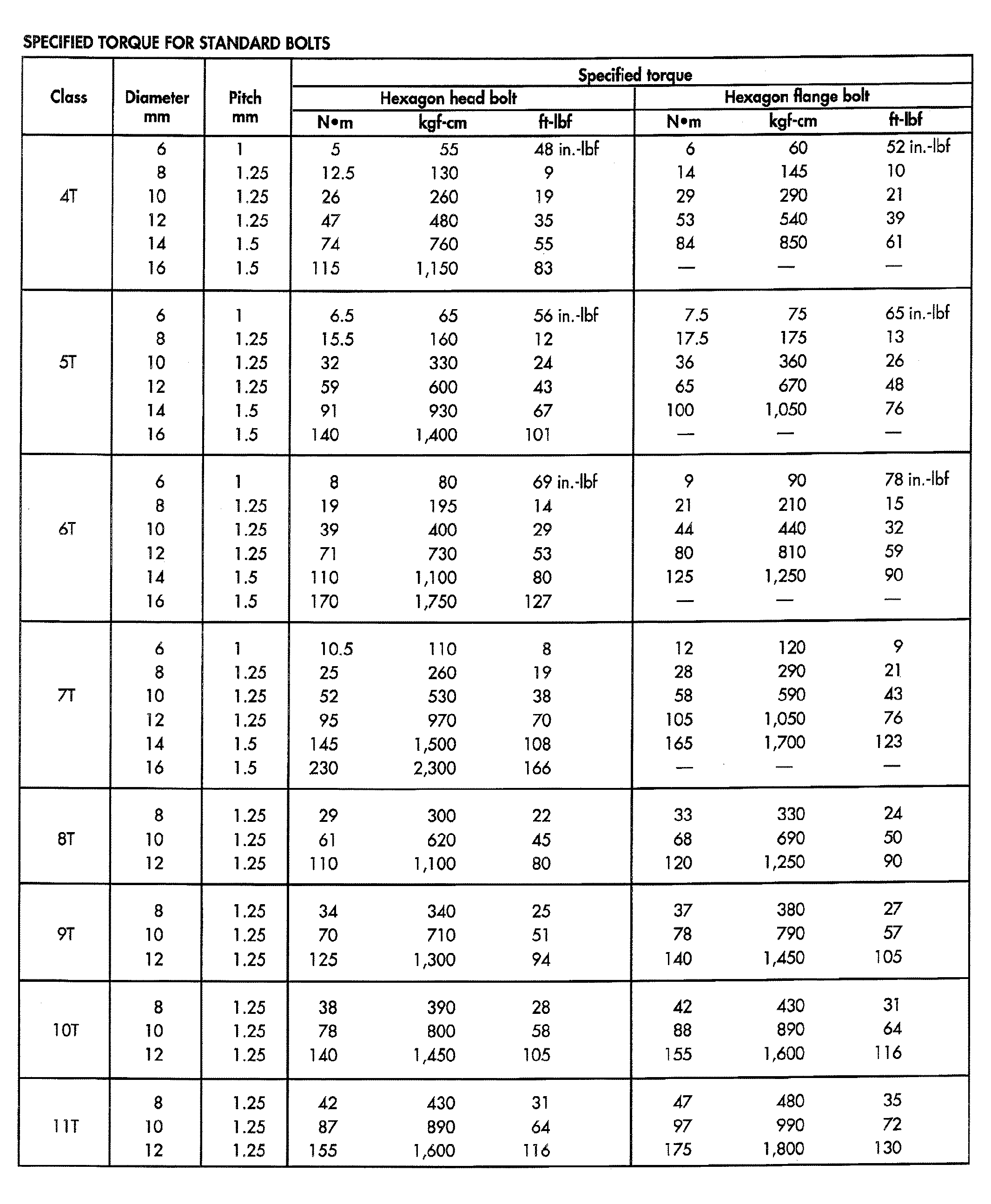

Fig 1: Standard Torque Specifications Chart

Courtesy of DAIMLERCHRYSLER CORP.
