Passenger Seat Belt Switch Circuit: Notes

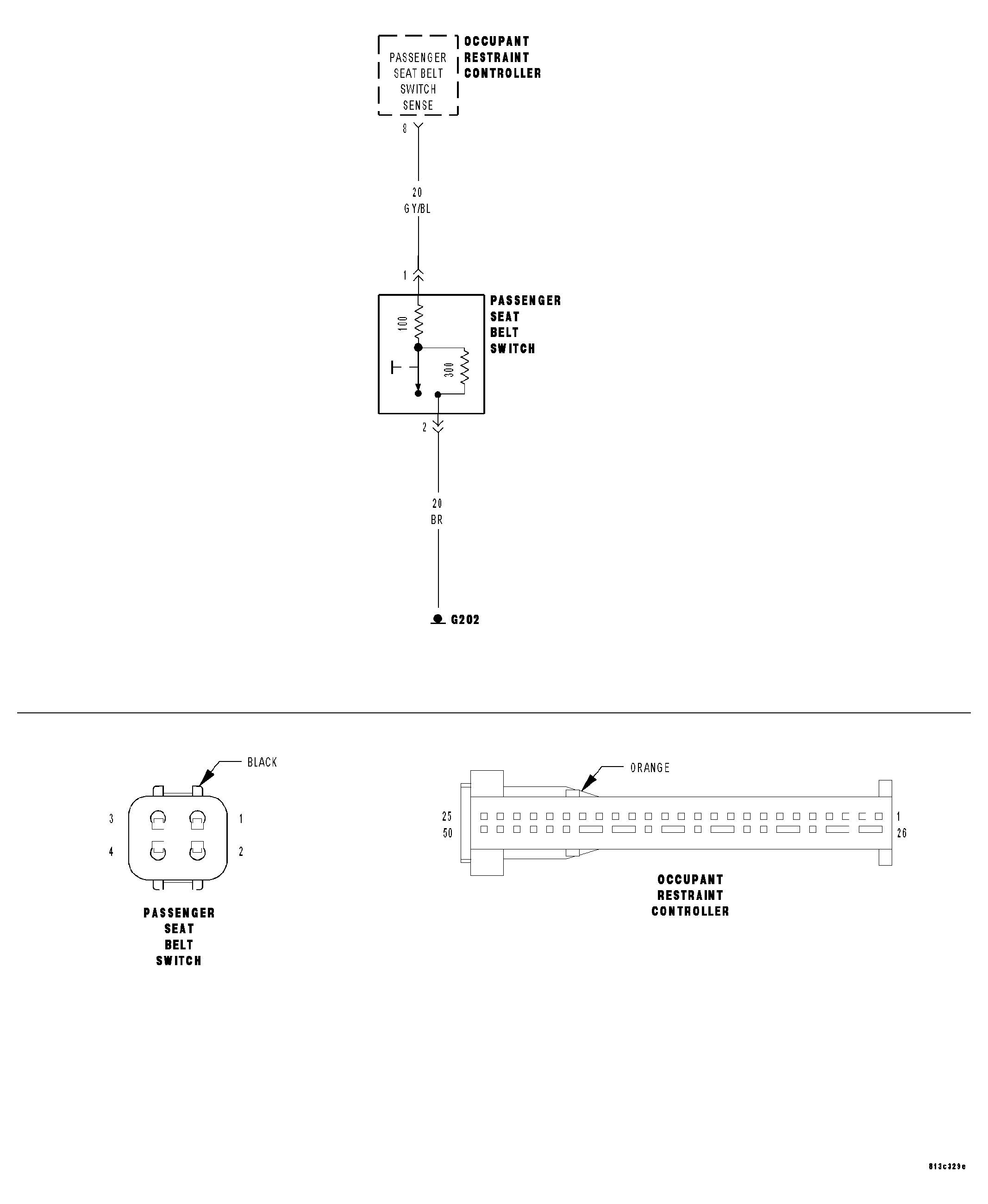

Fig 1: Passenger Seat Belt Switch Circuit Diagram

GC0035647

Courtesy of DAIMLERCHRYSLER CORP.
