Diagnostic Test

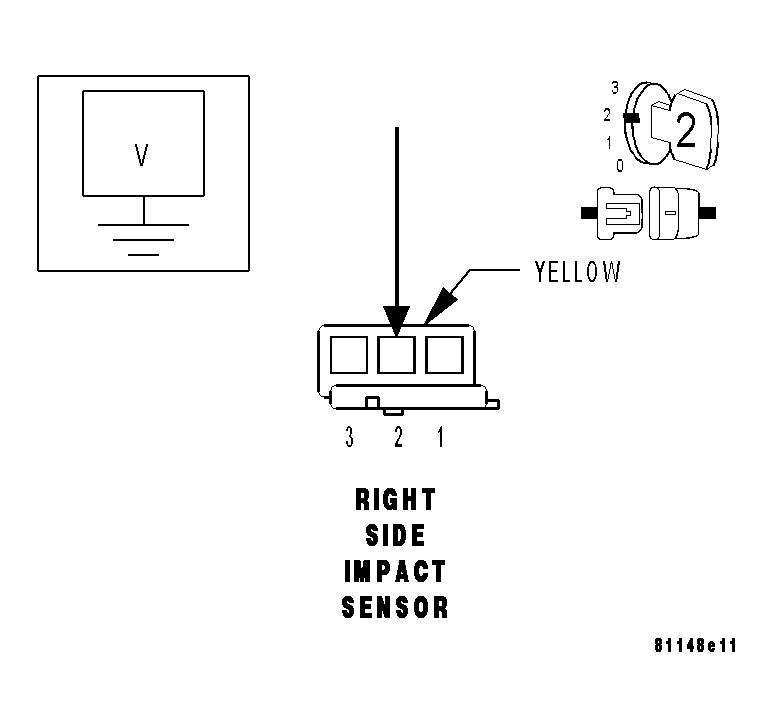

1) MEASURE THE RIGHT SIDE IMPACT SENSOR FUSED IGNITION SWITCH OUTPUT VOLTAGE

Fig 1: Measuring Right Side Impact Sensor Fused Ignition Switch Output Voltage
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Inspect Fuse 2 located in the Underhood Accessory Fuse Block. If the fuse is open, repair the cause of the open first before continuing.

NOTE: When reconnecting the Airbag System components, the ignition must be turned off and the battery must be disconnected.

WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BEFORE PROCEEDING.

Disconnect the Right Side Impact Sensor harness connector.

NOTE: Check connectors - Clean/repair as necessary.

WARNING: TURN THE IGNITION ON, THEN RECONNECT THE BATTERY.

Measure the voltage of the Fused Ignition Switch Output circuit at the Right Side Impact Sensor harness connector.

Is the voltage above 10 volts?

Yes
1. Go to step 2).
No
1. Repair the Right Side Impact Sensor Fused Ignition Switch Output circuit.
2. Perform AIRBAG VERIFICATION TEST .

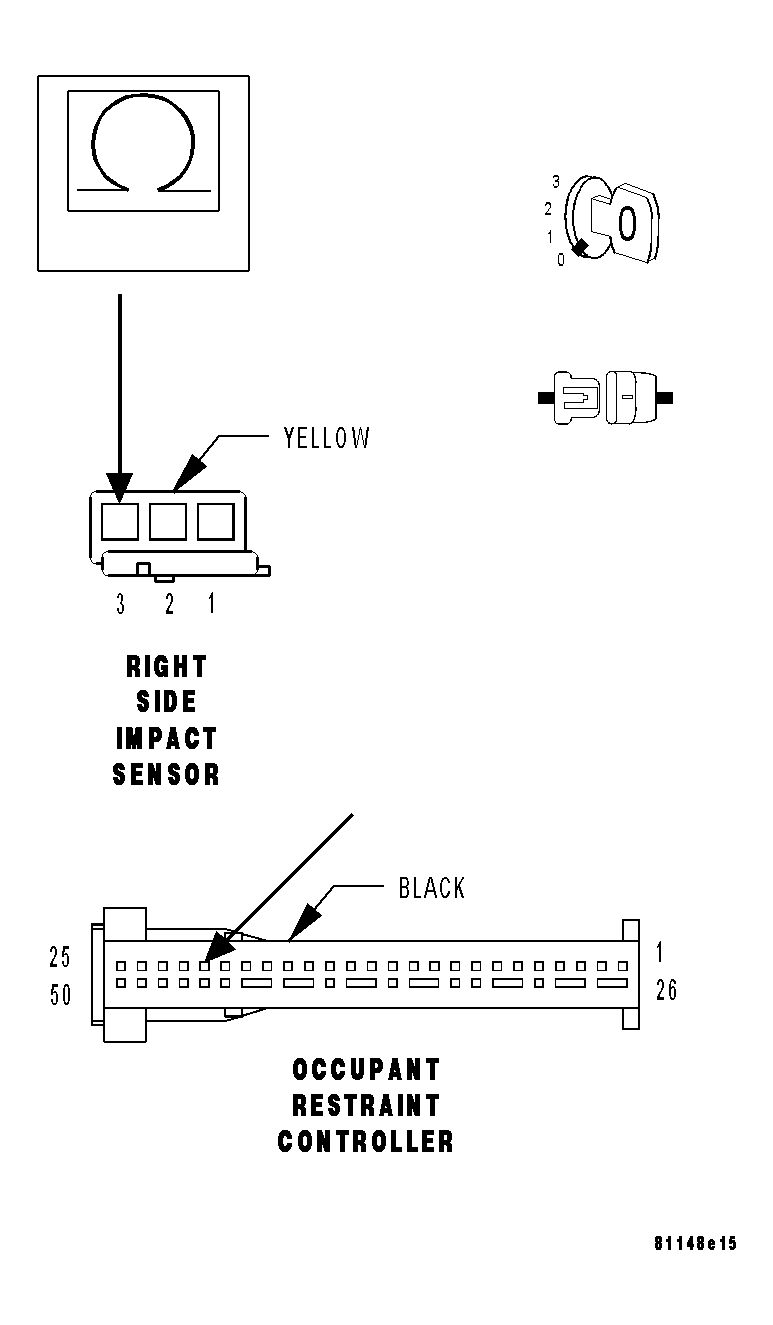

2) MEASURE THE RIGHT SIDE IMPACT SENSOR SIGNAL CIRCUIT RESISTANCE

Fig 2: Measuring Right Side Impact Sensor Signal Circuit Resistance
Courtesy of DAIMLERCHRYSLER CORP.

WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BEFORE PROCEEDING.

Disconnect the ORC harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance of the Right Side Impact Sensor Signal circuit from the Right Side Impact Sensor harness connector to the ORC harness connector.

Is the resistance below 1.0 ohm?

Yes
1. Go to step 3).
No
1. Repair the Right Side Impact Sensor Signal circuit for an open.
2. Perform AIRBAG VERIFICATION TEST .
  NOTE: When reconnecting the Airbag System components, the ignition must be turned off and the battery must be disconnected.

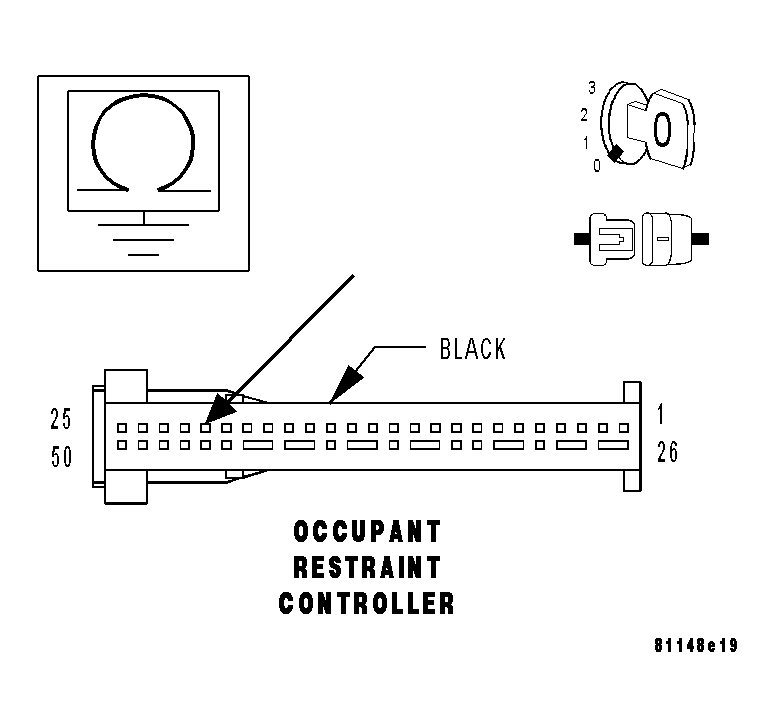

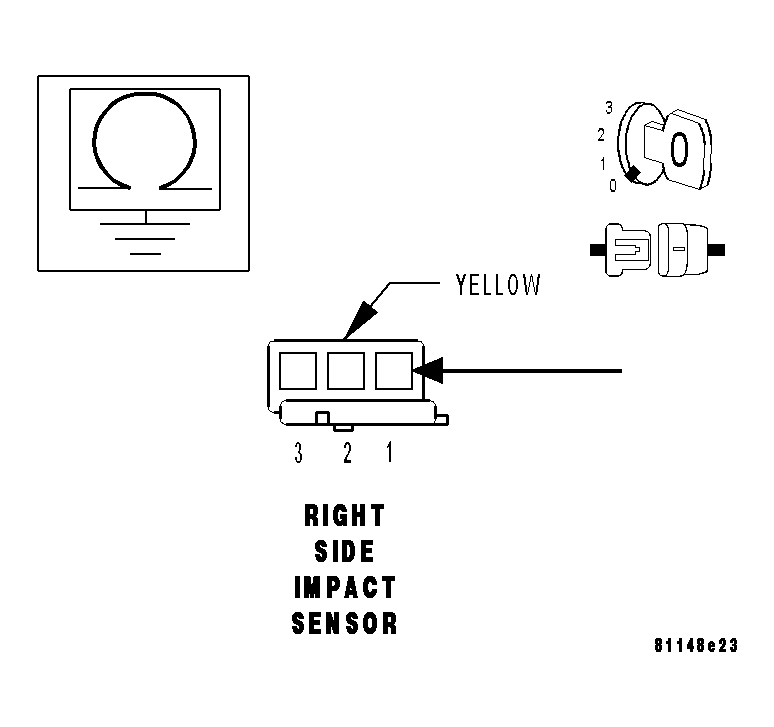

3) MEASURE THE RIGHT SIDE IMPACT SENSOR SIGNAL CIRCUIT RESISTANCE

Fig 3: Measuring Right Side Impact Sensor Signal Circuit Resistance
Courtesy of DAIMLERCHRYSLER CORP.

With the ignition off.

Measure the resistance between ground and the Right Side Impact Sensor Signal circuit.

Is the resistance below 10K ohms?

Yes
1. Repair the Right Side Impact Sensor Signal circuit for a short to ground.
2. Perform AIRBAG VERIFICATION TEST .
  NOTE: When reconnecting the Airbag System components, the ignition must be turned off and the battery must be disconnected.
No
1. Go to step 4).
4) MEASURE THE VOLTAGE OF THE RIGHT SIDE IMPACT SENSOR SIGNAL CIRCUIT

Fig 4: Measuring Voltage Of Right Side Impact Sensor Signal Circuit
Courtesy of DAIMLERCHRYSLER CORP.

WARNING: TURN THE IGNITION ON, THEN RECONNECT THE BATTERY.

Measure the voltage of the Right Side Impact Sensor Signal circuit at the Right Side Impact Sensor harness connector.

Is voltage present?

Yes
1. Repair the Right Side Impact Sensor Signal circuit for a short to voltage.
2. Perform AIRBAG VERIFICATION TEST .
  NOTE: When reconnecting the Airbag System components, the ignition must be turned off and the battery must be disconnected.
No
1. Go to step 5).
5) MEASURE THE RIGHT SIDE IMPACT SENSOR GROUND CIRCUIT RESISTANCE

Fig 5: Measuring Right Side Impact Sensor Ground Circuit Resistance
Courtesy of DAIMLERCHRYSLER CORP.

WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BEFORE PROCEEDING.

Measure the resistance between ground and the Right Side Impact Sensor Ground circuit.

Is the resistance below 1.0 ohm?

Yes
1. Replace the Right Side Impact Sensor. (Refer to ELECTRICAL/RESTRAINTS/IMPACT SENSOR - REMOVAL) .
2. Perform AIRBAG VERIFICATION TEST .
No
1. Repair the open Right Side Impact Sensor Ground circuit.
2. Perform AIRBAG VERIFICATION TEST .
  NOTE: When reconnecting the Airbag System components, the ignition must be turned off and the battery must be disconnected.
