Coolant Level Sensor: Installation
- Lubricate the new coolant level sensor o-ring with coolant.

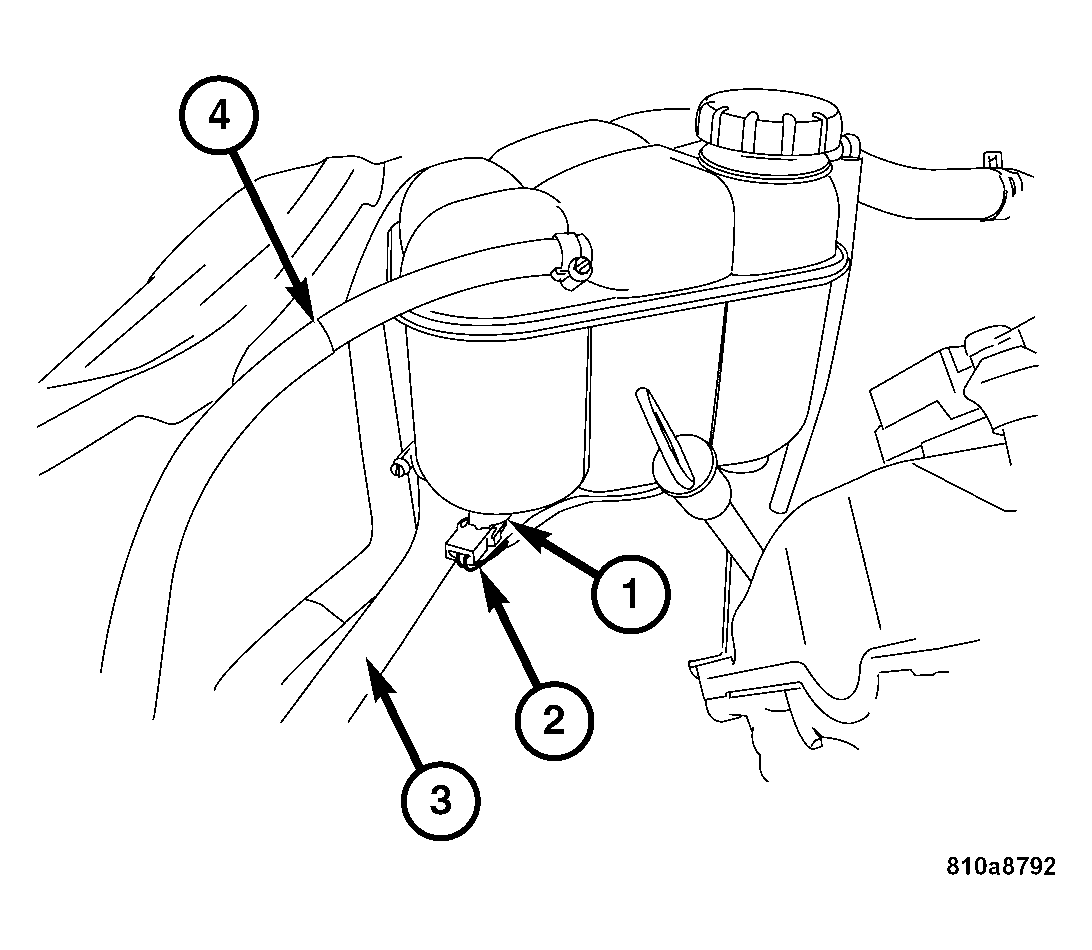

- Push the coolant level sensor (1) into the coolant recovery reservoir until it snaps into place.
- Connect the coolant level sensor harness connector (2).
- Refill the cooling system. (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
- Start the engine and check for coolant leaks.
- Recheck the coolant level and adjust as necessary.
