Upstream Oxygen Sensor 2/1 Connector End View

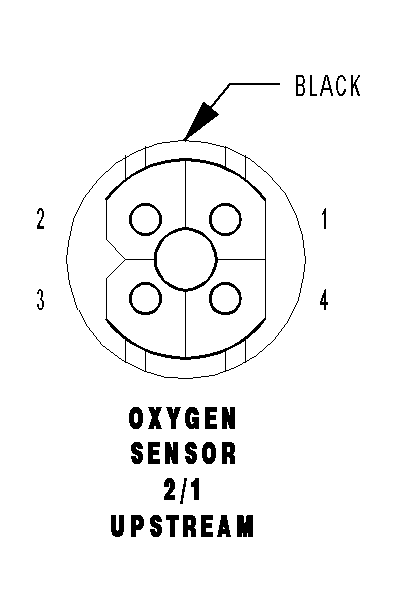

OXYGEN SENSOR 2/1 UPSTREAM - BLACK 4 WAY

GCZH580171Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 18RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
2 18BR/BK (EXCEPT SRT) OXYGEN SENSOR 2/1 HEATER CONTROL
2 18BR/GY (SRT) OXYGEN SENSOR 2/1 HEATER CONTROL
3 20DG SENSOR GROUND
4 20BK (EXCEPT SRT) OXYGEN SENSOR 2/1 SIGNAL
4 20BK/BR (SRT) OXYGEN SENSOR 2/1 SIGNAL
