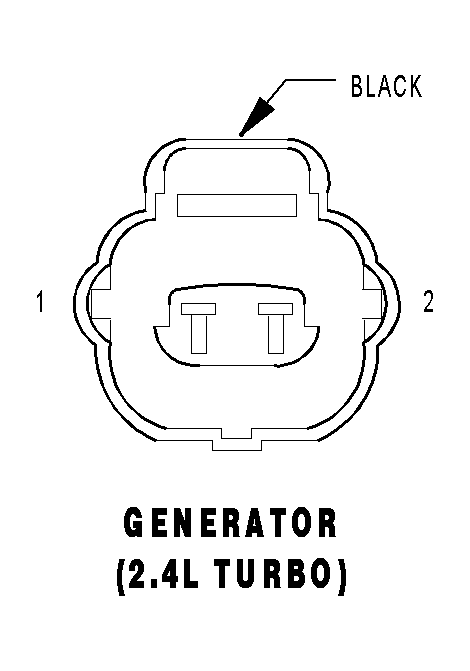

Generator (2.4L Turbo) Connector End View
GENERATOR (2.4L TURBO) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z1 20BK |
GROUND |
| 2 |
K20 20DG |
GEN FIELD CONTROL |
