Sentry Key Immobilizer Module - Black 6 Way

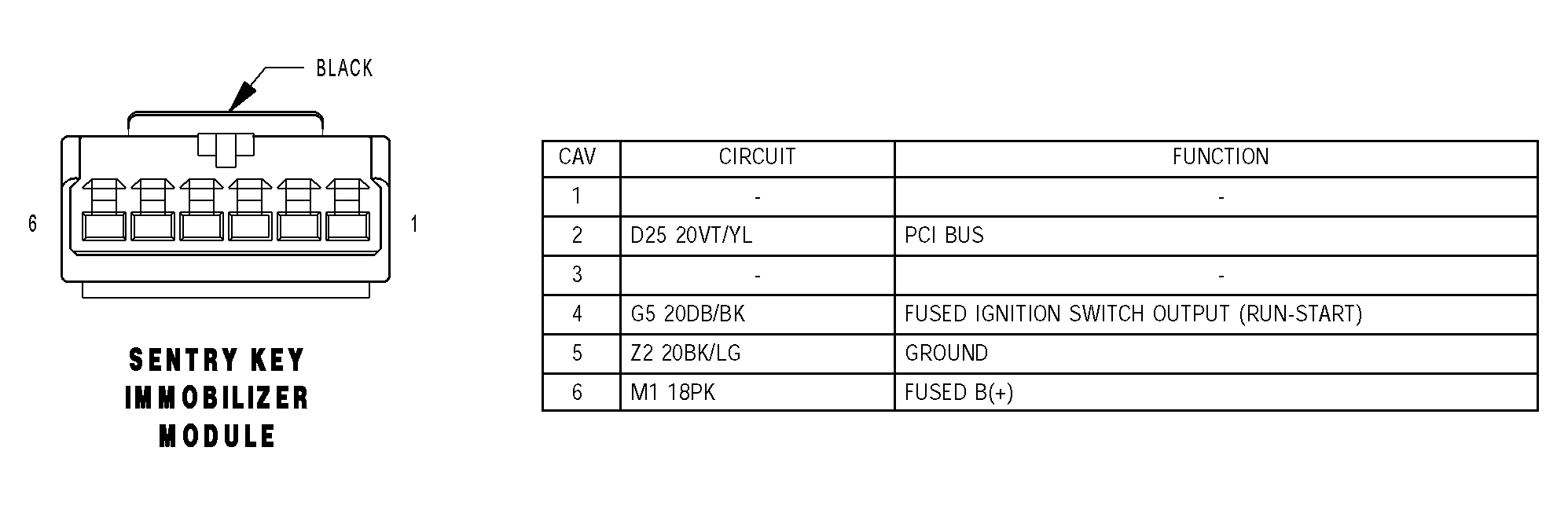

Fig 1: Identifying Sentry Key Immobilizer Module - Connector Pinouts
G04549114Courtesy of DAIMLERCHRYSLER CORP.
