Installation - 2.0L

WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the assembly, PCM and bracket.
  2. Loose install the mounting nut.

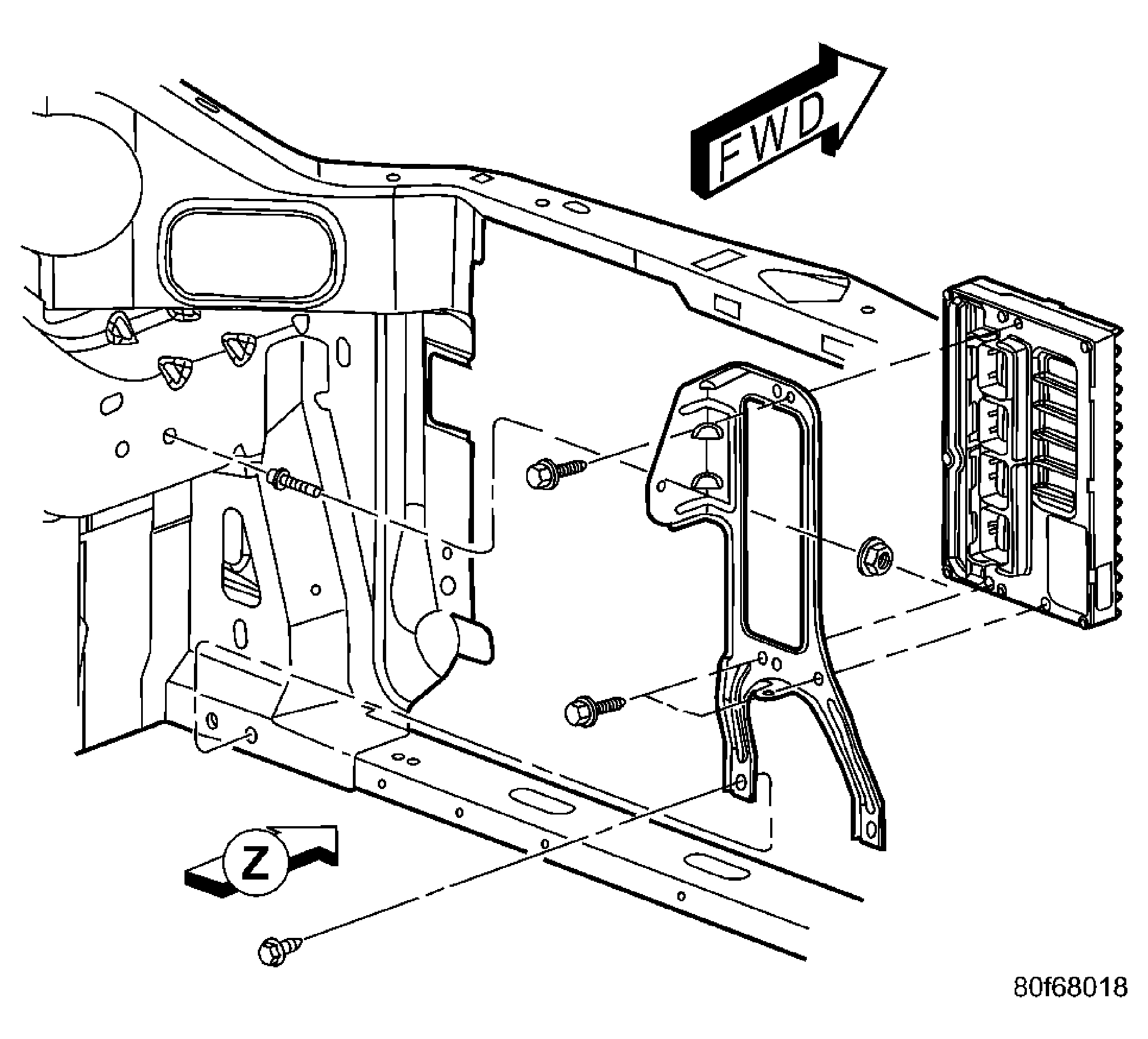

  3. Install the mounting bolts to the bottom of the PCM bracket. See Figure.
  4. Tighten the mounting nut, tighten to
  5. Install the wiring harness clip to the PCM bracket. See Figure.
    NOTE: The electrical connector for the PCM are COLOR Coded.

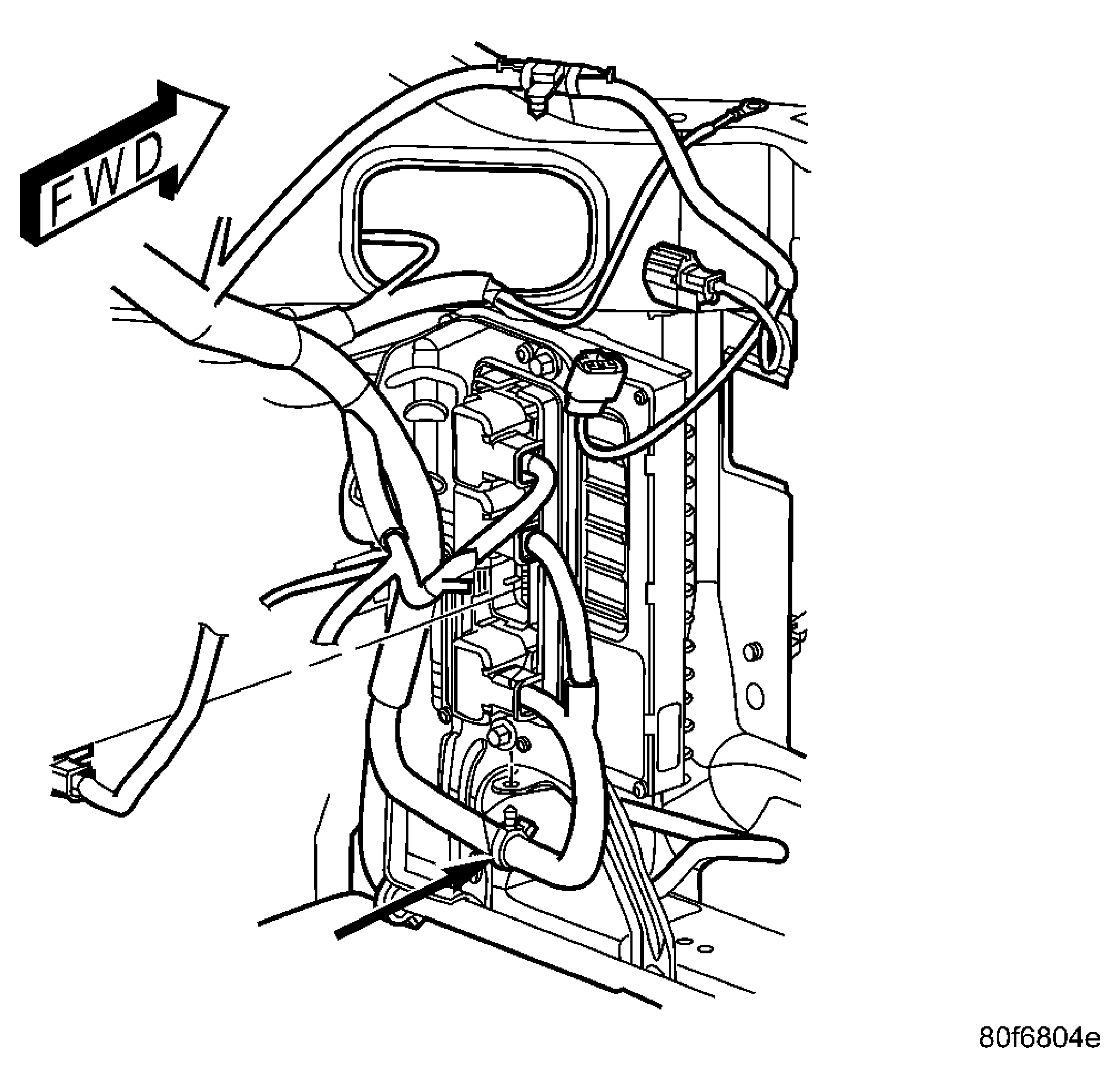

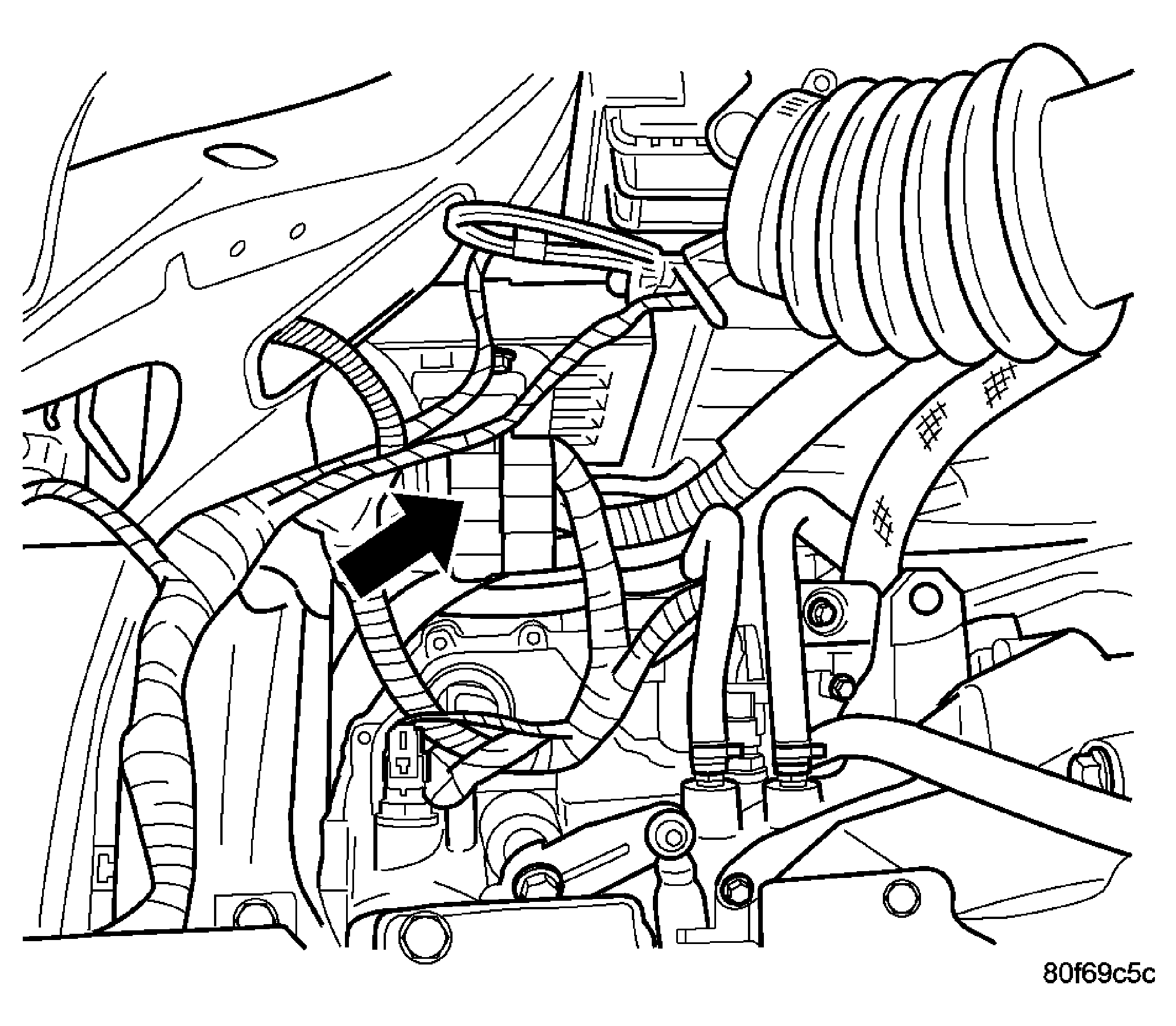

  6. Connect the electrical connectors and lock at the PCM. See Figure.

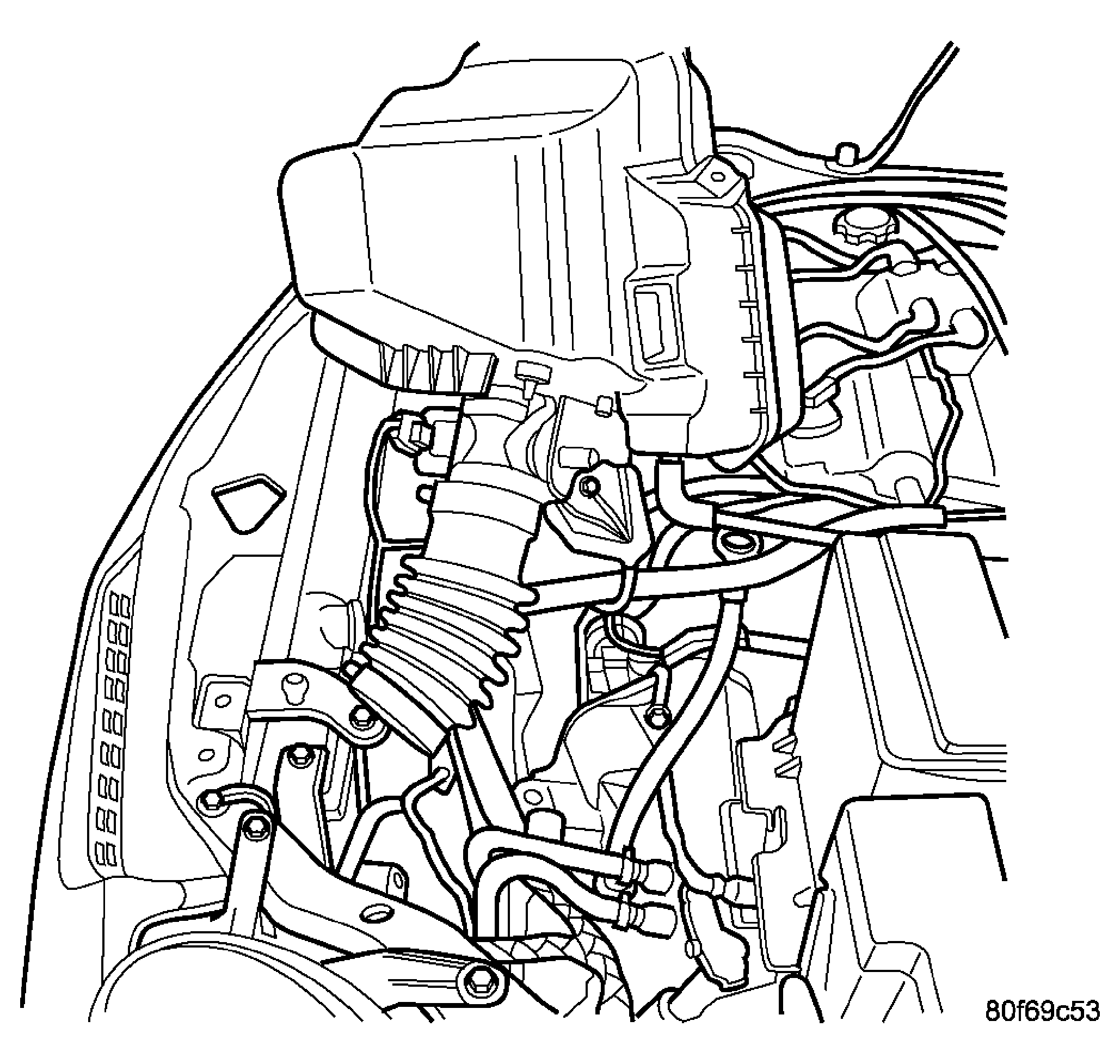

  7. Install the air cleaner box, refer to AIR CLEANER HOUSING (2.0) or AIR CLEANER HOUSING (2.4) for more information. See Figure.
  8. Connect the negative battery cable.
