Removal - 1.6L

WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the air cleaner box, refer to the air cleaner box removal. See Fig 1.

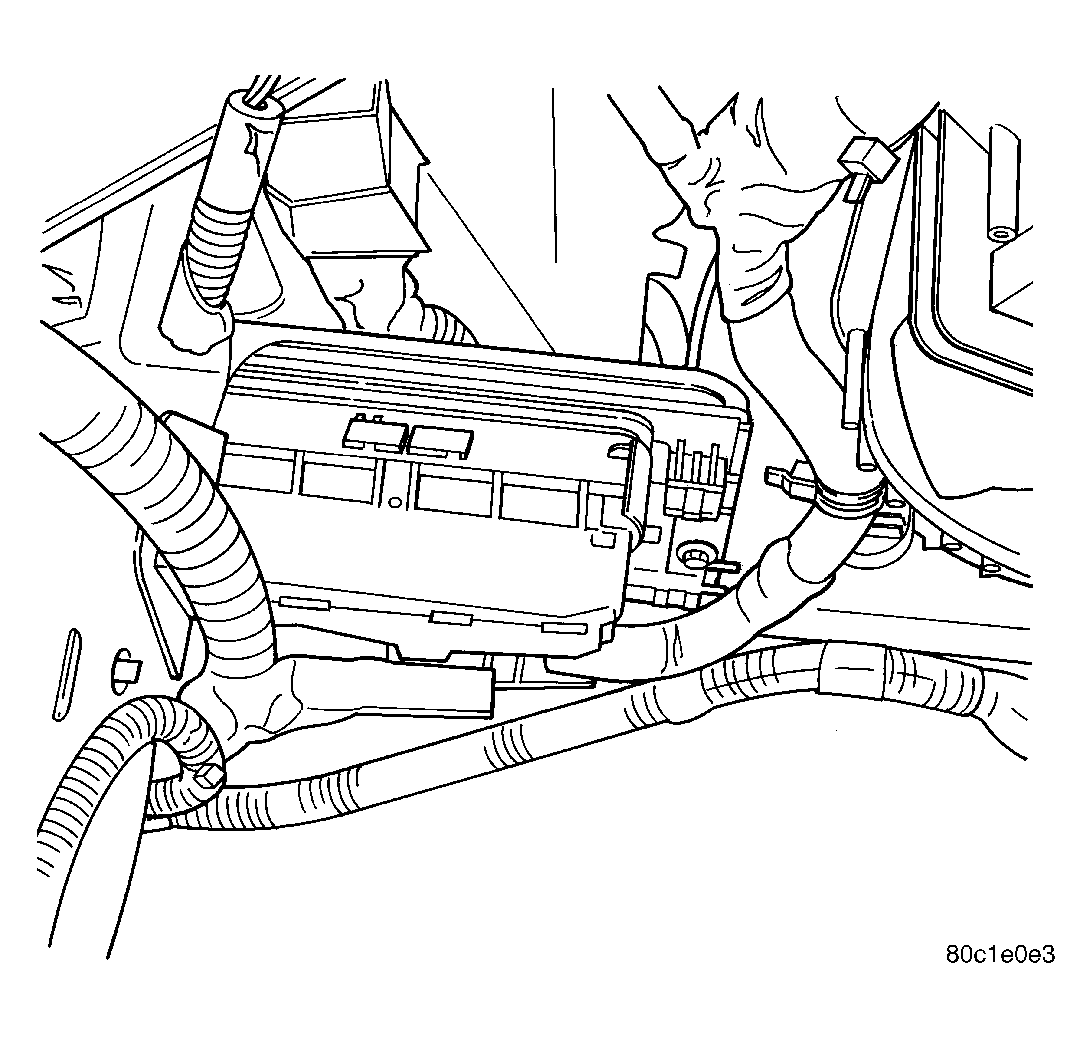

Fig 1: PCM LOCATION
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the Powertrain Control Module connector.
Remove the 4 bolts. See Fig 2.

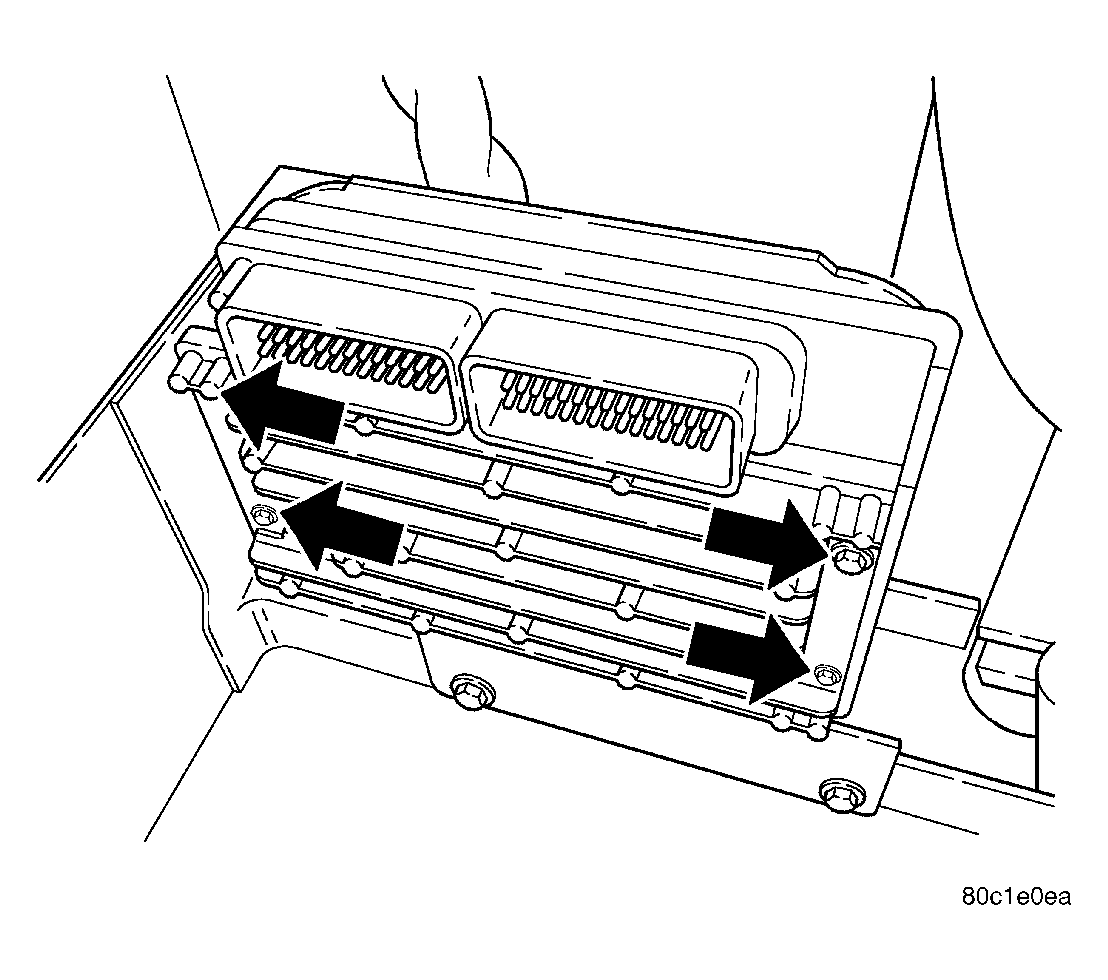

Fig 2: PCM BOLTS
Courtesy of DAIMLERCHRYSLER CORP.
Remove the PCM from bracket.
