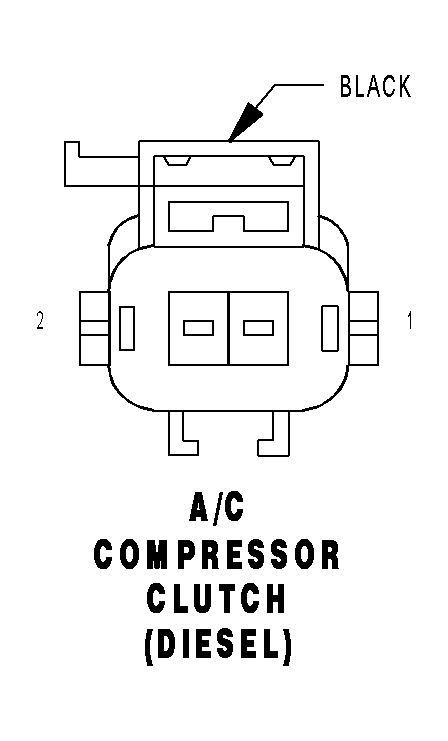

A/C Compressor Clutch (Diesel) Connector End View
A/C COMPRESSOR CLUTCH (DIESEL) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C3 20DB/BK |
A/C COMPRESSOR CLUTCH RELAY OUTPUT |
| 2 |
Z1 20BK |
GROUND |
