Ambient Temperature Sensor / Switch HVAC

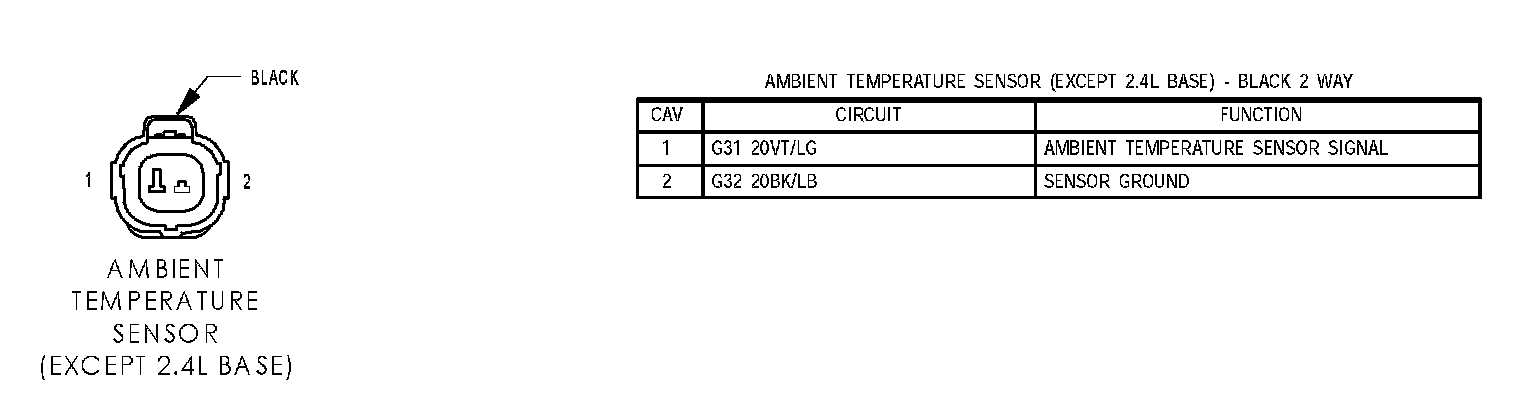

Ambient Temperature Sensor (Except 2.4L Base):

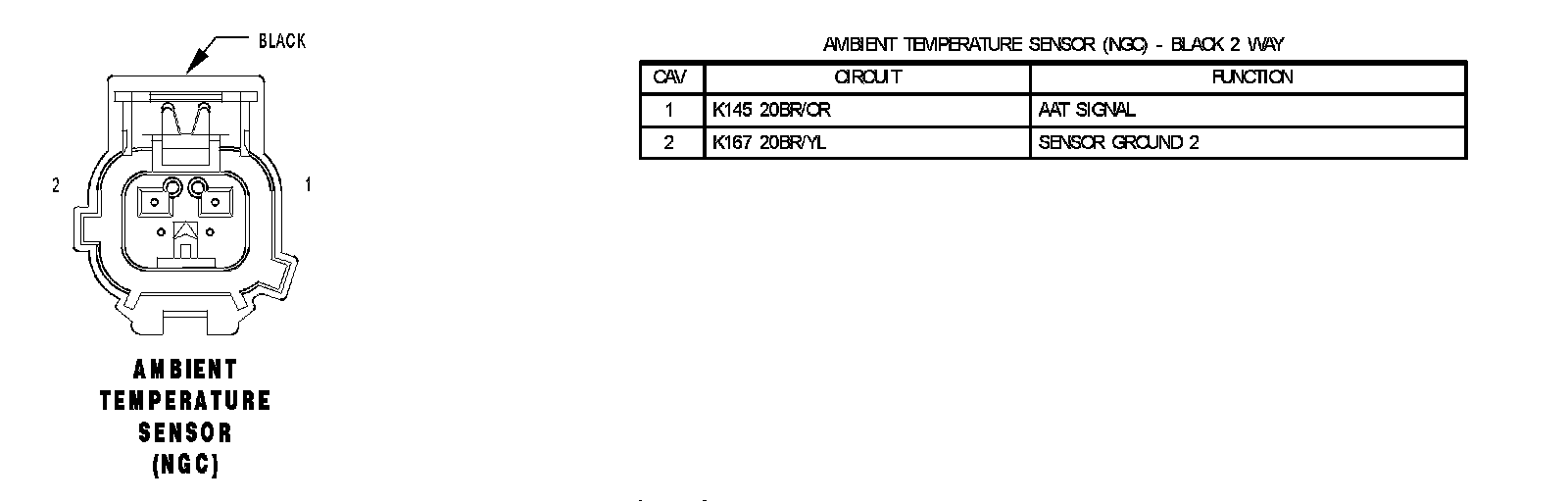

Ambient Temperature Sensor (NGC):
