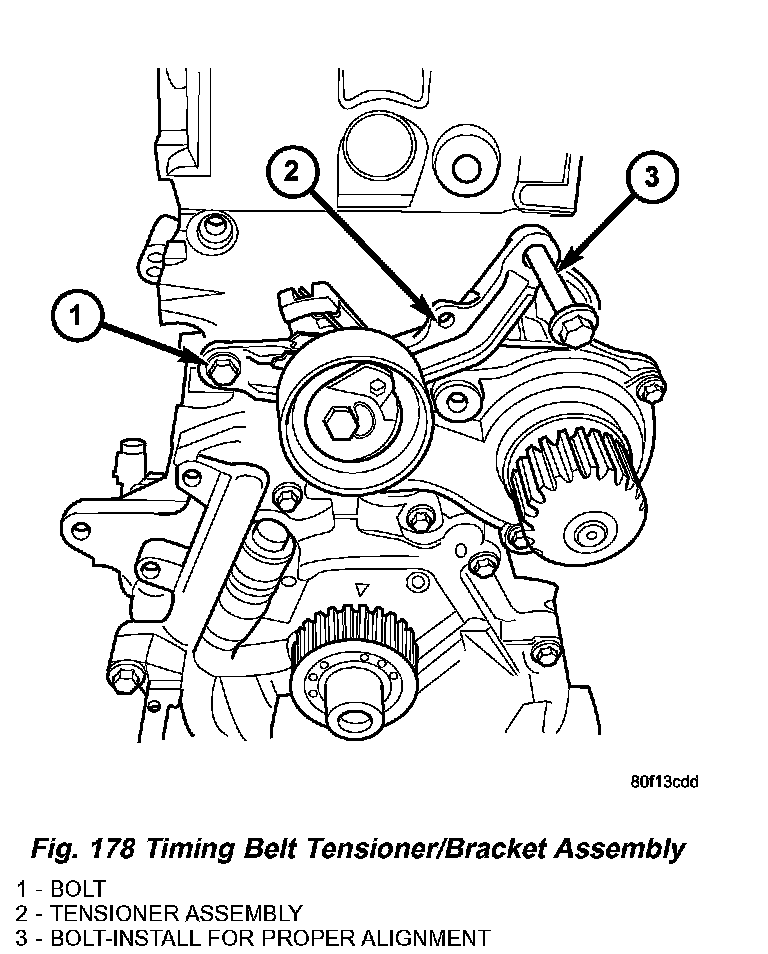

Timing Belt Tensioner
Timing Belt Tensioner
Lock Bolt
25 Nm (220 inch lbs.)
Assembly-Bolts
61 Nm (45 ft. lbs.)
