VTSS Fails to Arm From Liftgate Cylinder Lock Switch Export Only)

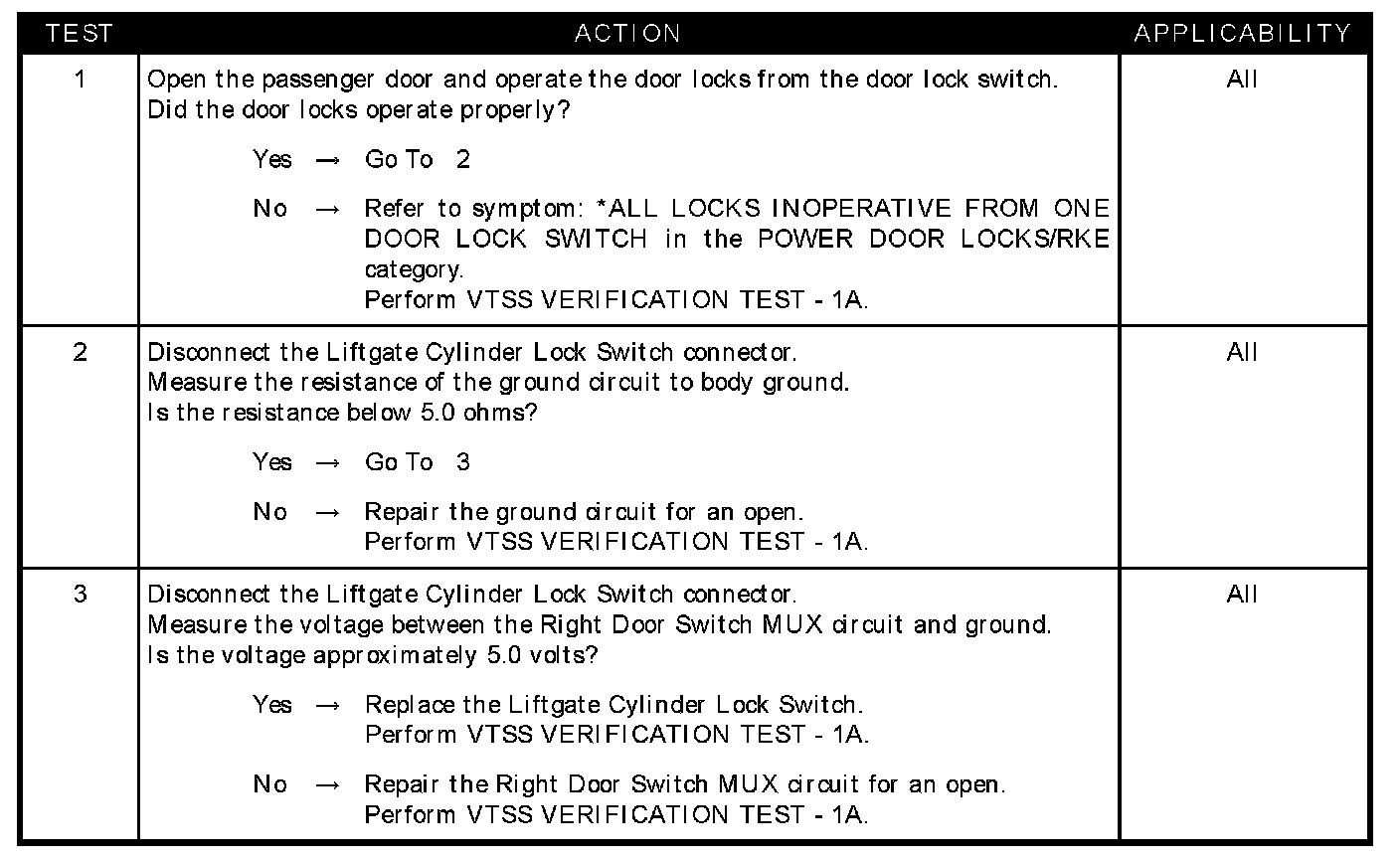

Test 1 - 3:






SYMPTOM
VTSS FAILS TO ARM FROM LIFTGATE CYLINDER LOCK SWITCH (EXPORT ONLY)

POSSIBLE CAUSES
- Door lock operation test
- Ground circuit open
- Right door switch MUX circuit open
- Liftgate cylinder lock switch
