Passenger Door Module Connector End View (C3)

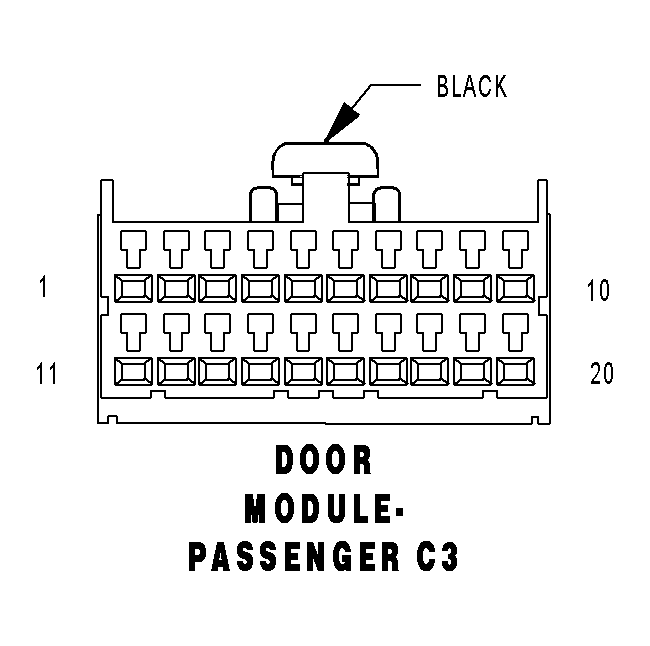

DOOR MODULE-PASSENGER C3 - BLACK 20 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Z74 20BK/WT | GROUND |
| 2 | P68 22TN/YL | PASSENGER MIRROR HORIZONTAL POSITION SIGNAL |
| 3 | - | - |
| 4 | - | - |
| 5 | Q2 20WT/TN | PASSENGER REAR WINDOW SWITCH MUX |
| 6 | P66 22TN/LG | PASSENGER MIRROR SENSOR GROUND |
| 7 | M44 20OR/DB | RIGHT DOOR COURTESY LAMP DRIVER |
| 8 | E26 20OR/GY | PANEL LAMPS DRIVER |
| 9 | P70 22TN/LB | PASSENGER MIRROR COMMON DRIVER |
| 10 | P74 22TN/OR | PASSENGER MIRROR HORIZONTAL DRIVER |
| 11 | G74 20VT/WT | PASSENGER DOOR AJAR SWITCH SENSE |
| 12 | P64 22TN | PASSENGER MIRROR VERTICAL POSITION SIGNAL |
| 13 | - | - |
| 14 | C16 20DB/GY | PASSENGER HEATED MIRROR FEED |
| 15 | D25 20WT/VT | PCI BUS |
| 16 | - | - |
| 17 | Z322 20BK/BR | GROUND |
| 18 | P54 20OR/LG | PASSENGER HEATED MIRROR DRIVER |
| 19 | - | - |
| 20 | P72 20TN/GY | PASSENGER MIRROR VERTICAL DRIVER |
