Battery Temperature Sensor: Installation

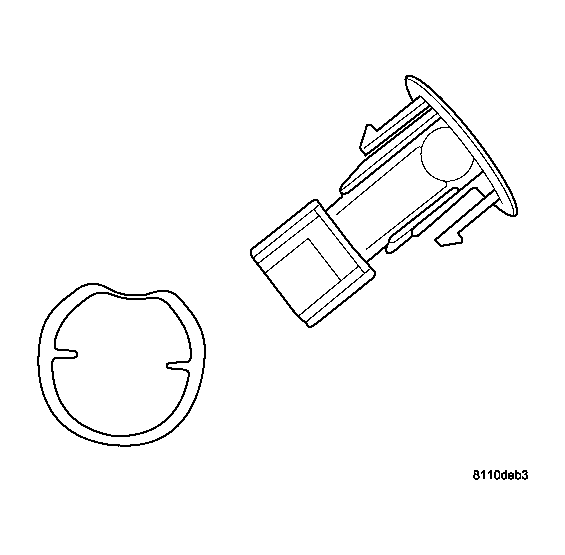

- Install the Battery Temperature Sensor to the battery tray. Make sure that the spring is installed with the sensor. See Fig 1.
Courtesy of DAIMLERCHRYSLER CORP.

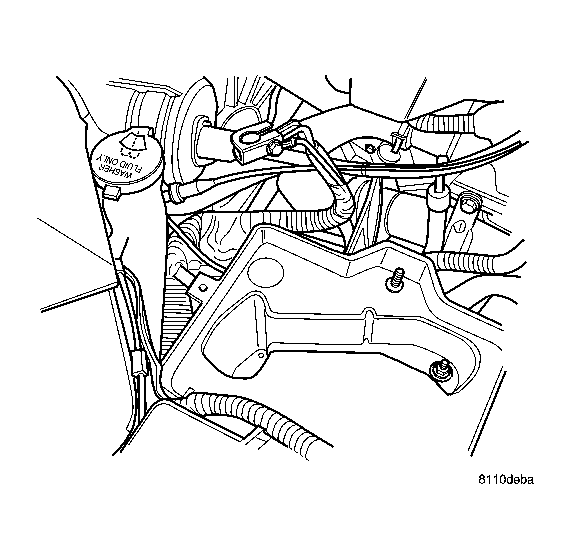

- Connect the Battery Temperature Sensor electrical connector. See Fig 2.
- Make sure that the sensor moves vertically in the battery tray by pushing on the sensor. The sensor should move with each push and return to the original location after pressure is removed.
- Install battery to battery tray.
- Connect the battery positive cable then the negative cable.
Courtesy of DAIMLERCHRYSLER CORP.
