Charging System: Generator: Installation: 3.5L

  1. Install generator.
  2. Install the 2 lower mounting bolts. See Fig 1.
  3. Install the upper mounting bracket. See Fig 2.

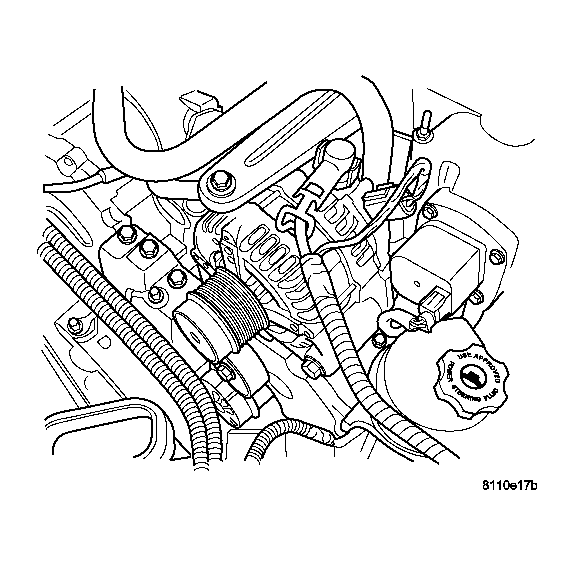

    Fig 1: Installing Generator
    GC0002284Courtesy of DAIMLERCHRYSLER CORP.

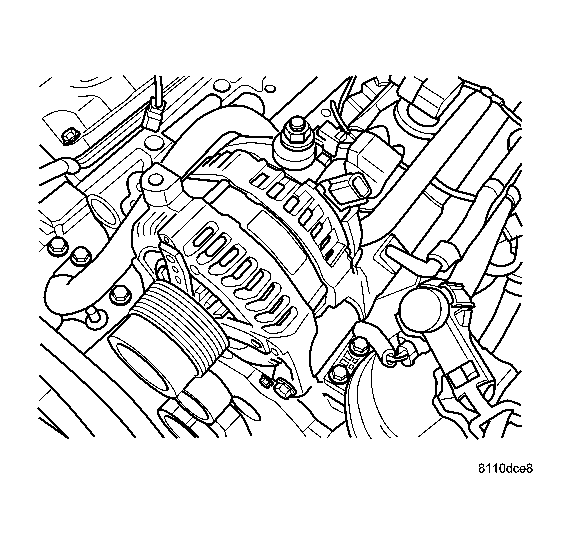

    Fig 2: Upper Mounting Bracket
    GC0002286Courtesy of DAIMLERCHRYSLER CORP.
  4. Tighten the 2 lower bolts first, tighten bolts to 54.2 N.m (40 ft. lbs.) then tighten the 2 upper bolts, tighten bolts to 28.2 N.m (20.8 ft. lbs.)
  5. Connect the generator field circuit wiring connector. See Fig 3. Push the RED  locking tab to lock connector.

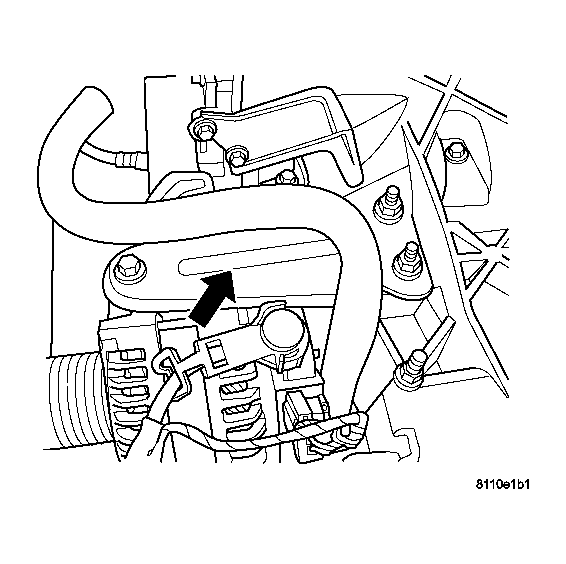

    Fig 3: Positive Battery Cable & Field Connector
    GC0002285Courtesy of DAIMLERCHRYSLER CORP.
  6. Install the B+ terminal nut and wire making sure the terminal is properly oriented with the anti-rotation tab. See Figure.
  7. Tighten nut to 12.5 N.m (110 in. lbs.).
  8. Install the generator drive belt. Refer to (COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
  9. Install the engine cover.
  10. Connect battery negative cable.
