Overhead Console: Description: Notes

Four different overhead console options are available on the CS model. The base overhead console includes a universal transmitter and push buttons. Option two includes the universal transmitter and power liftgate push buttons. See Fig 1. Option three includes the universal transmitter and power sunroof push buttons. The final option includes all of the features mentioned, universal transmitter, power liftgate and power sunroof push buttons. All overhead consoles are equipped with a internal Compass Mini-Trip Computer (CMTC) module, two reading/courtesy lamps and a storage bin. The overhead console is mounted with one screw and two snap clips to a molded plastic retainer bracket located above the headliner.

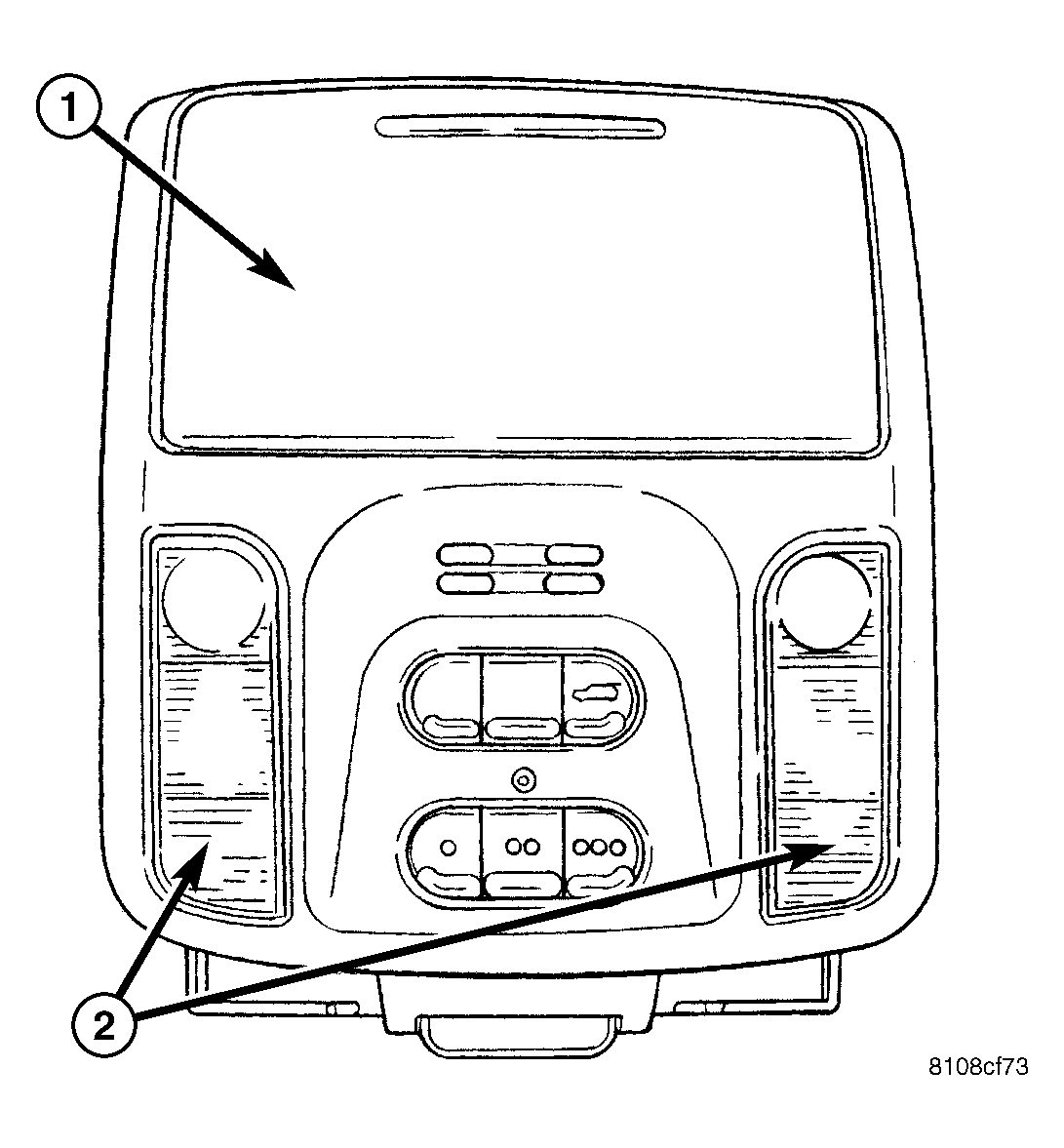

Fig 1: CS Overhead Console

Courtesy of DAIMLERCHRYSLER CORP.

The overhead console CMTC module display and Electronic Vehicle Information Center (EVIC) is built in to the instrument cluster on this model. The instrument panel switch pod contains the US/M, MENU, STEP and RESET push buttons used to control the CMTC and EVIC displays. Refer to INSTRUMENT CLUSTER and INSTRUMENT PANEL SWITCH POD for more information.
