3.8L - Upper O2 Sensor
The engines uses two heated oxygen sensors.
CAUTION:
When disconnecting the sensor electrical connector, do not pull directly on wire going into sensor.
- Disconnect negative battery cable.

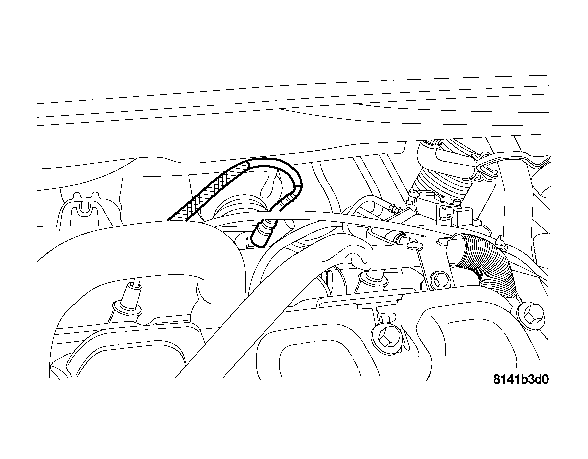

- Disconnect the upper O2 sensor connector. See Fig 1.
Courtesy of DAIMLERCHRYSLER CORP.

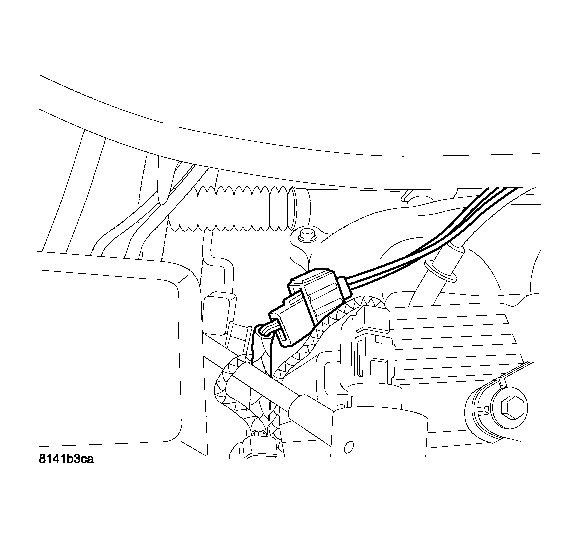

- Use a socket such as Snap-On YA8875 or a crow foot wrench to remove oxygen sensor. See Fig 2.
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - Item_1xftjhxfdj |
| 2 - Item _2tjsryjy |
