Vehicle Identification Number

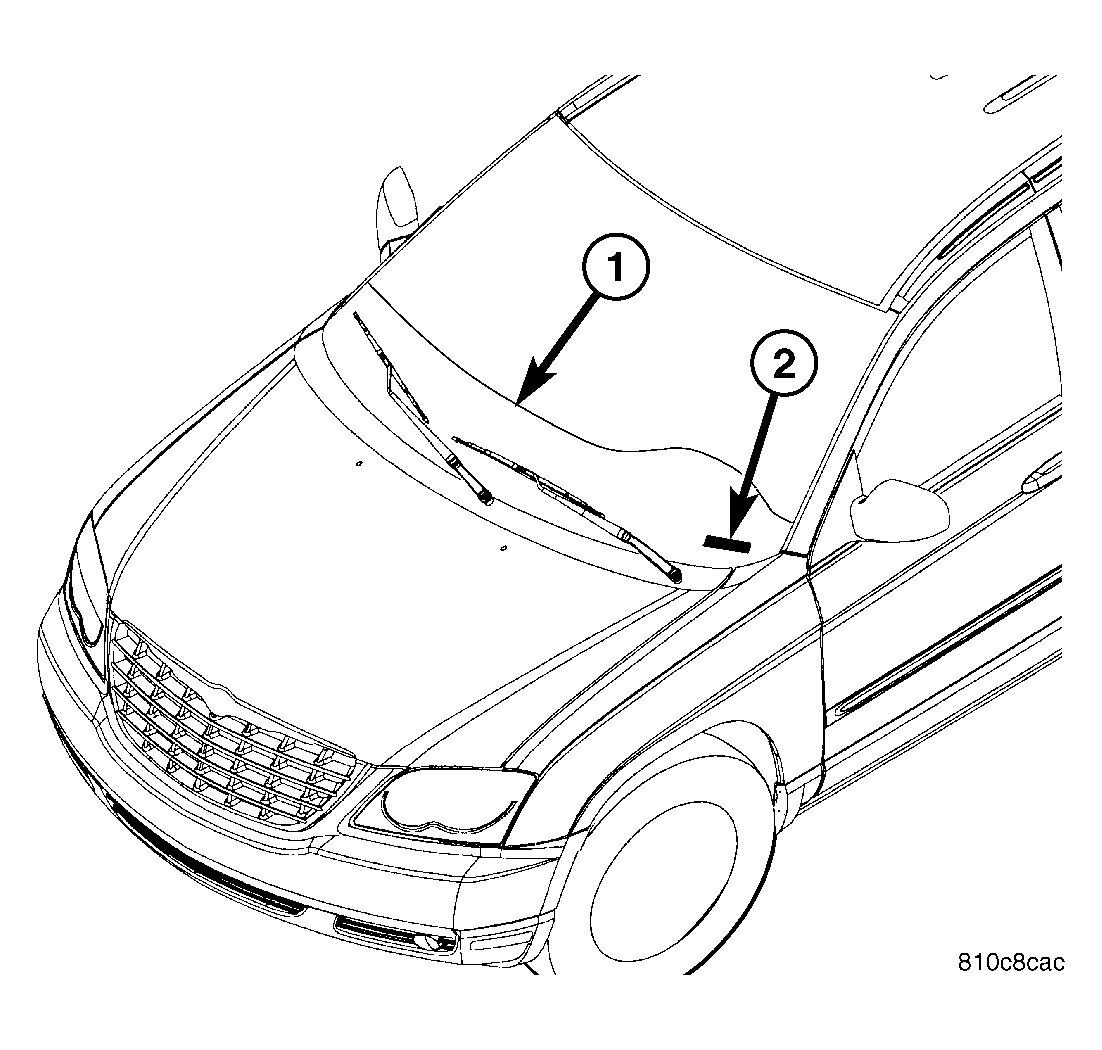

The Vehicle Identification Number (VIN) can be viewed through the windshield at the upper left corner of the instrument panel, near the left windshield pillar. See Fig 1. The VIN consists of 17 characters in a combination of letters and numbers that provide specific information about the vehicle. Refer to VIN Code Breakdown Chart for decoding information.
To protect the consumer from theft and possible fraud the manufacturer is required to include a Check Digit at the ninth position of the vehicle identification number. The check digit is used by the manufacturer and government agencies to verify the authenticity of the vehicle and official documentation. The formula to use the check digit is not released to the general public.
| 1 - INSTRUMENT PANEL |
| 2 - VEHICLE IDENTIFICATION NUMBER (VIN) |
VIN CODE BREAKDOWN CHART
| POSITION | INTERPRETATION | CODE = DESCRIPTION |
|---|---|---|
| 1 | Country of Origin | 1 = Manufactured by DaimlerChrysler Corporation |
| 2 = Manufactured by DaimlerChrysler Canada Inc. | ||
| 2 | Make | C = Chrysler |
| 3 | Vehicle Type | 4 = Multipurpose Passenger Vehicle Less Side Airbags |
| 8 = Multipurpose Passenger Vehicle With Side Airbags | ||
| 4 | Gross Vehicle Weight Rating | F = 1815 - 2267 kg. (4001 - 5000 lbs.) |
| G = 2268 - 2721 kg. (5001 - 6000) | ||
| 5 | Car Line | F = Pacifica - AWD |
| M = Pacifica - FWD | ||
| 6 | Series | 5 = Premium |
| 6 = Sport | ||
| 7 | Body Style | 8 = Sport Utility 4 Door |
| 8 | Engine | 4 = 3.5L V6 cyl. 24 - Valve Gasoline (MPI) |
| L = 3.8L V6 cyl. Gasline (SMPI) | ||
| 9 | Check Digit | See explanation in this section. |
| 10 | Model Year | 5 = 2005 |
| 11 | Assembly Plant | R = Windsor Assembly |
| 12 through 17 | Sequence Number | A six digit number assigned by assembly plant. |
