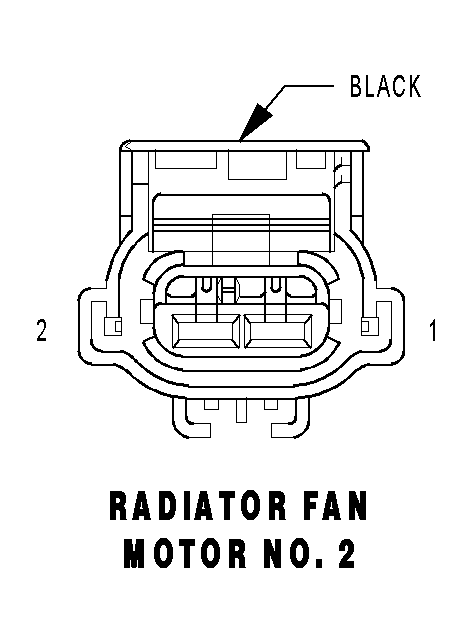

Radiator Fan Motor 2 Connector End View
RADIATOR FAN MOTOR NO. 2 - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
N23 12DB/DG |
RADIATOR FAN RELAY OUTPUT |
| 2 |
Z223 12BK/DG |
GROUND |
