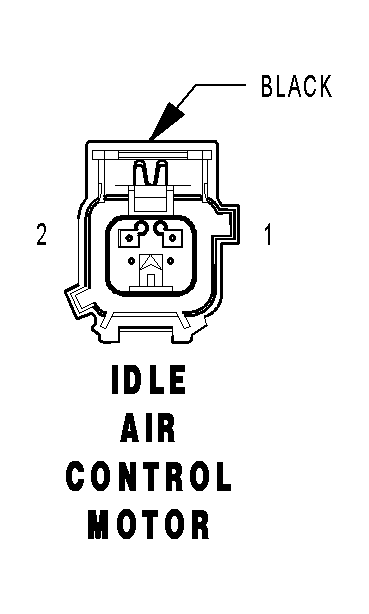

Idle Air Control Motor Connector End View
IDLE AIR CONTROL MOTOR - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K61 20VT/GY |
IAC MOTOR CONTROL |
| 2 |
K961 20BR/VT |
IAC RETURN |
