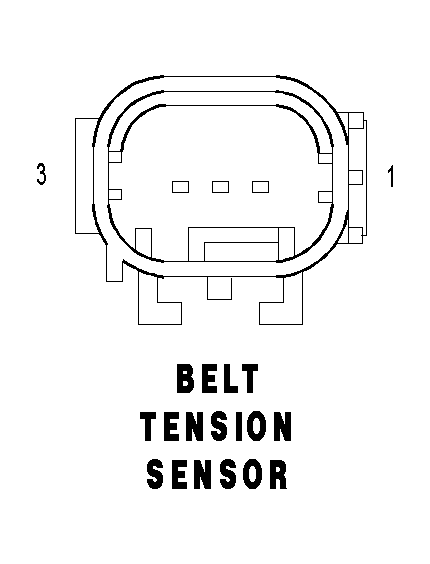

Belt Tension Sensor Connector End View
BELT TENSION SENSOR - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R86 20LG/LB |
BELT TENSION SENSOR FEED |
| 2 |
R986 20LG/BR |
BELT TENSION SENSOR GROUND |
| 3 |
D105 20WT/OR |
BELT TENSION SENSOR SIGNAL |
