No Response From Transmission Control Module

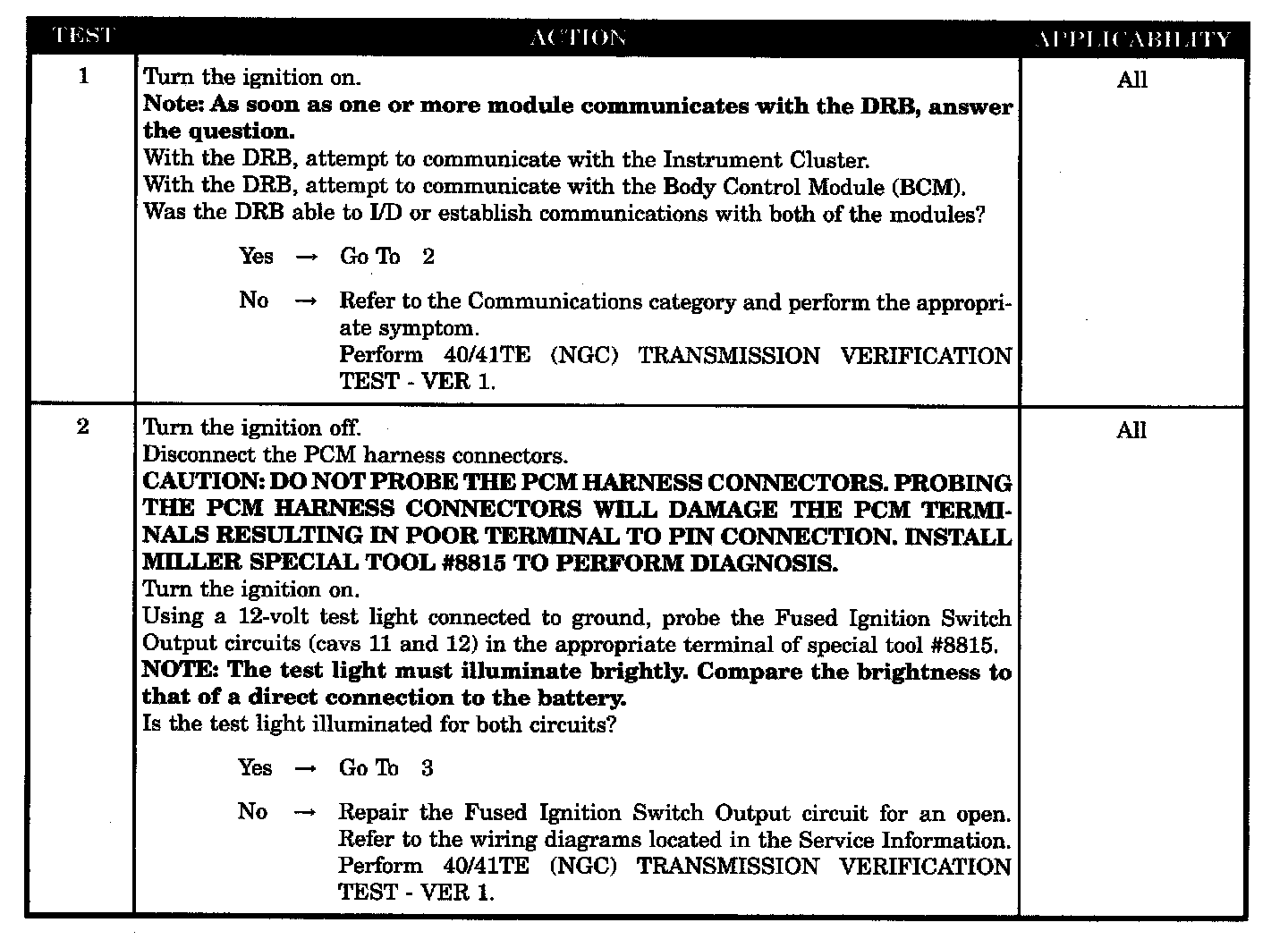

Test 1 - 2:

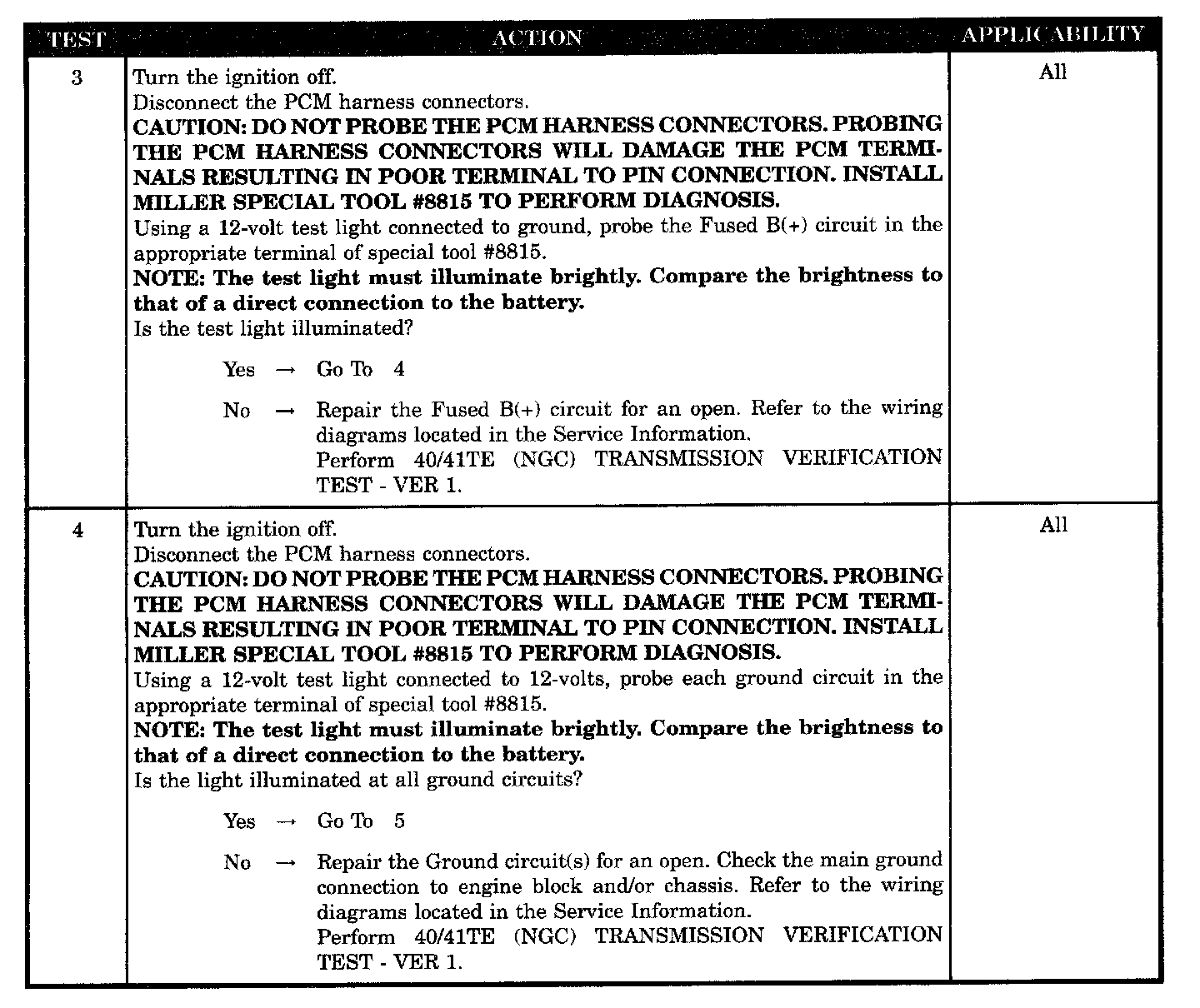

Test 3 - 4:

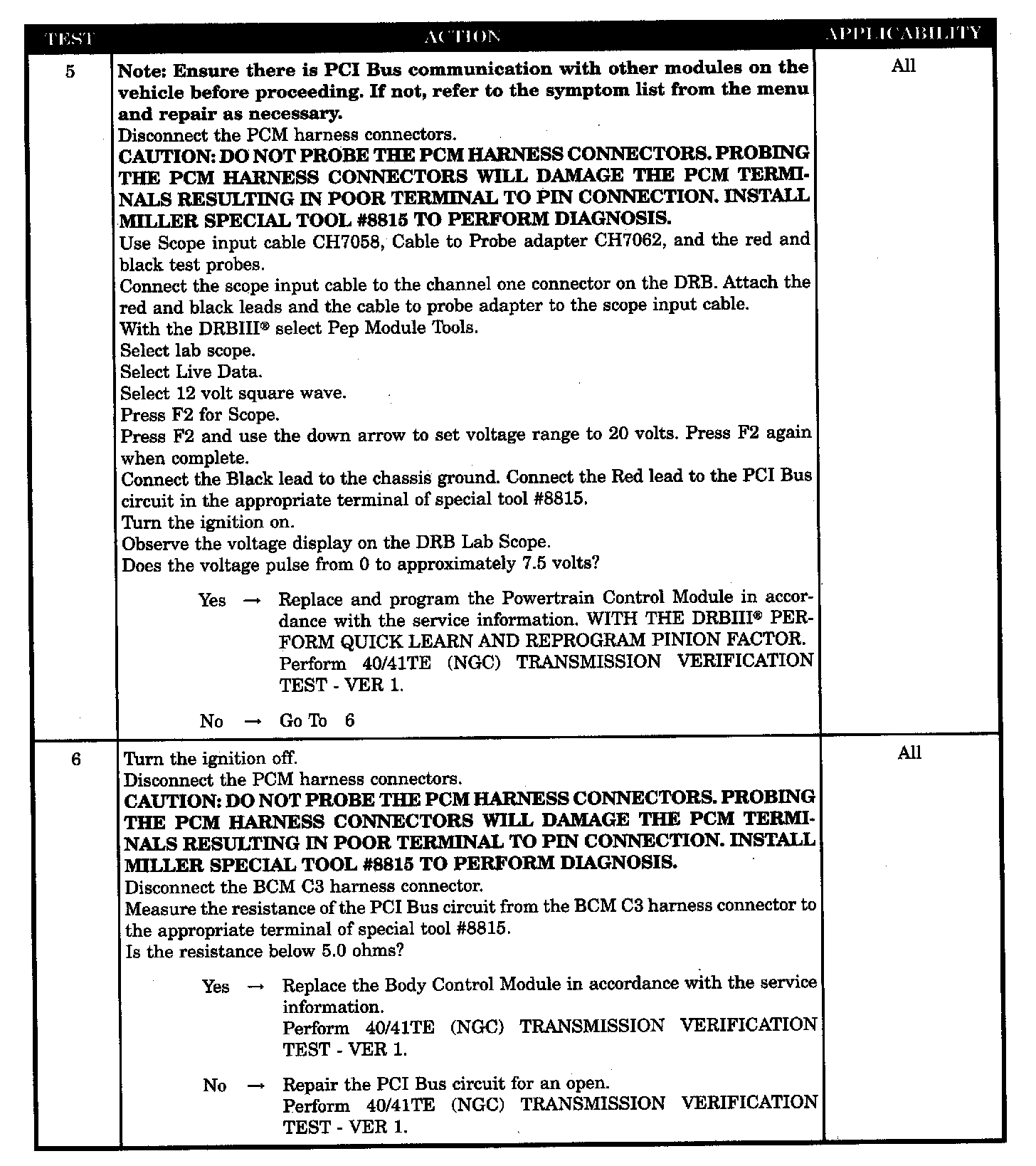

Test 5 - 6:

SYMPTOM:
NO RESPONSE FROM TRANSMISSION CONTROL MODULE

POSSIBLE CAUSES
- No response from transmission control module
- Fused ignition switch output circuit open
- Fused B(+) circuit open
- Ground circuit(s) open
- Powertrain control module
- PCI BUS circuit open
- Body control module
