Diagnosis And Testing - Traction Control Switch
- Remove lower steering column shroud. (Refer to STEERING/COLUMN/LOWER SHROUD - REMOVAL)

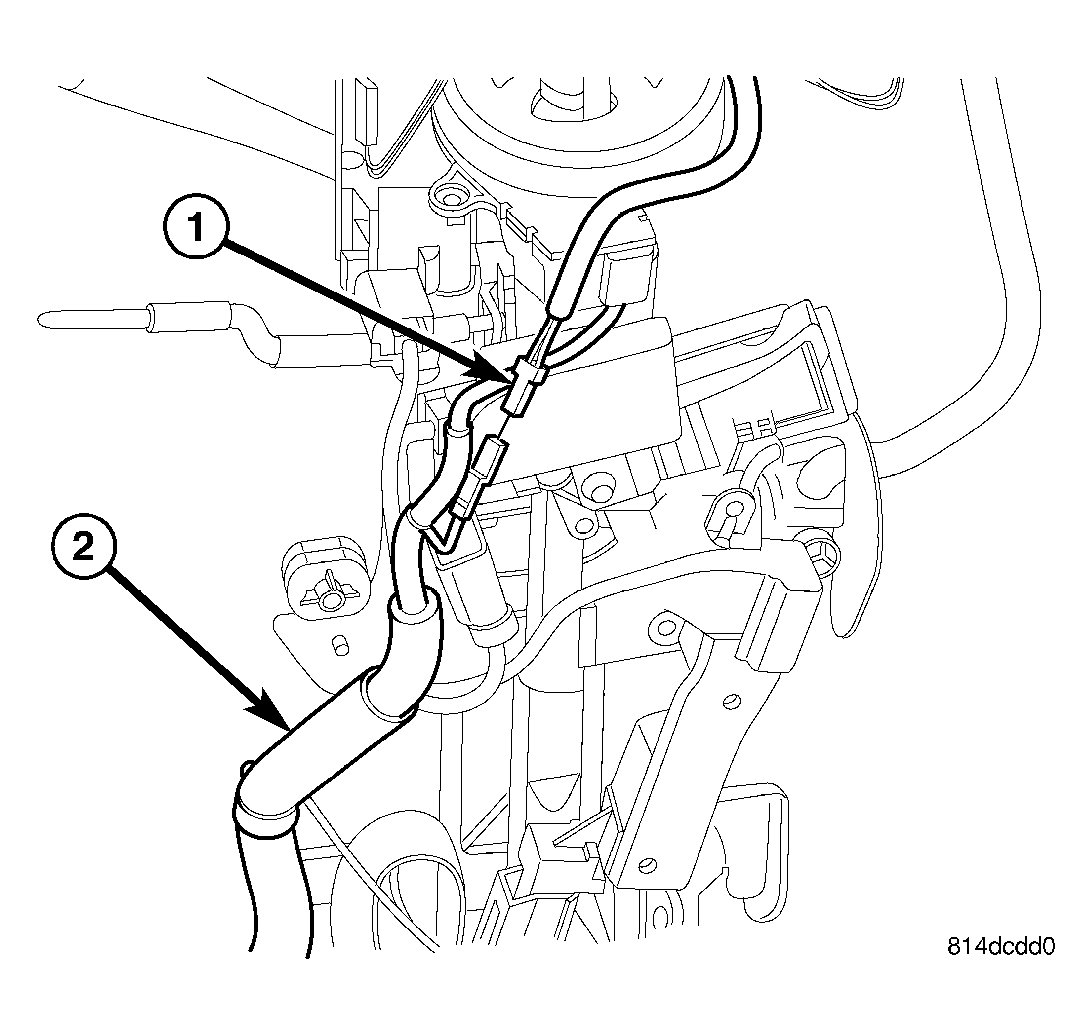

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - TRACTION CONTROL WIRING CONNECTOR |
| 2 - COLUMN WIRING HARNESS |
- Disconnect traction control switch harness from column harness. See Fig 1.
- Using an ohmmeter, check for continuity between pins 1 and 2. With the switch actuated, there should be continuity between the two pins. With the switch off, there should be no continuity.
