Sensor-Crankshaft Position: Installation

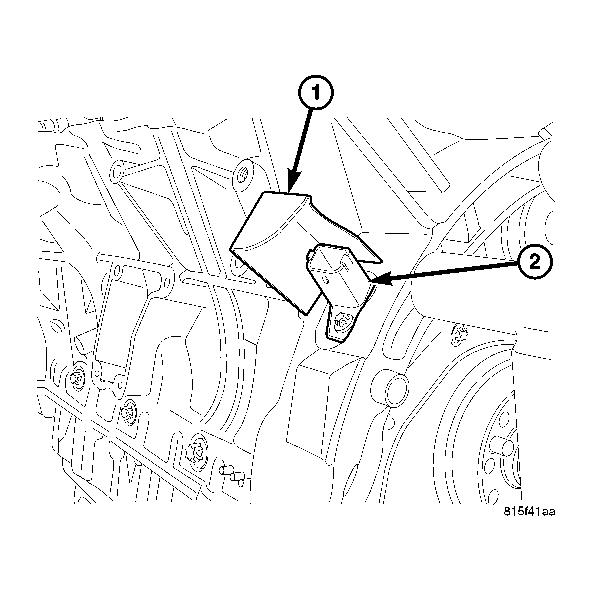

Fig 1: Locating Crankshaft Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEAT SHIELD

2 - CRANKSHAFT POSITION SENSOR

Clean the crankshaft sensor bore and install the sensor (2). See Fig 1. Tighten the bolt to 9 N.m (80 in. lbs.).
Connect the engine harness connector.
Install the heat shield (1). See Fig 1.
Lower the vehicle.
Connect the negative battery cable.
