Diagnostic Test

  1. 1)  DTC IS ACTIVE

    Ignition on, engine not running.

    With the Scan Tool, select Clear Stored DTCs in the Memory Seat Module.

    Move the Steering Column Tilt Switch to the Up and Down positions several times, holding the switch in position for at least 2 seconds each time.

    With the Scan Tool, select View DTCs in the Memory Seat Module.

    Does this DTC reset and/or remain active?

    Yes

    1. Go to step  2).

    No

    1. Go to step  10).
  2. 2)  CHECK DTC WITH HARNESS DISCONNECTED

    Turn the ignition off.

    Disconnect the Steering Tilt Motor harness connector.

    Ignition on, engine not running.

    Move the Steering Column Tilt Switch to the Up and Down positions several times.

    With the Scan Tool, select Clear Stored DTCs in the Memory Seat Module.

    Move the Steering Column Tilt Switch to the Up and Down positions several times, holding the switch in position for at least 2 seconds each time.

    With the Scan Tool, select View DTCs in the Memory Seat Module.

    Does this DTC reset and/or remain active?

    Yes

    1. Go to step  3).

    No

    1. Go to step  8).
  3. 3)  (P151) TILT STEERING UP/DOWN POSITION SENSE CIRCUIT OPEN

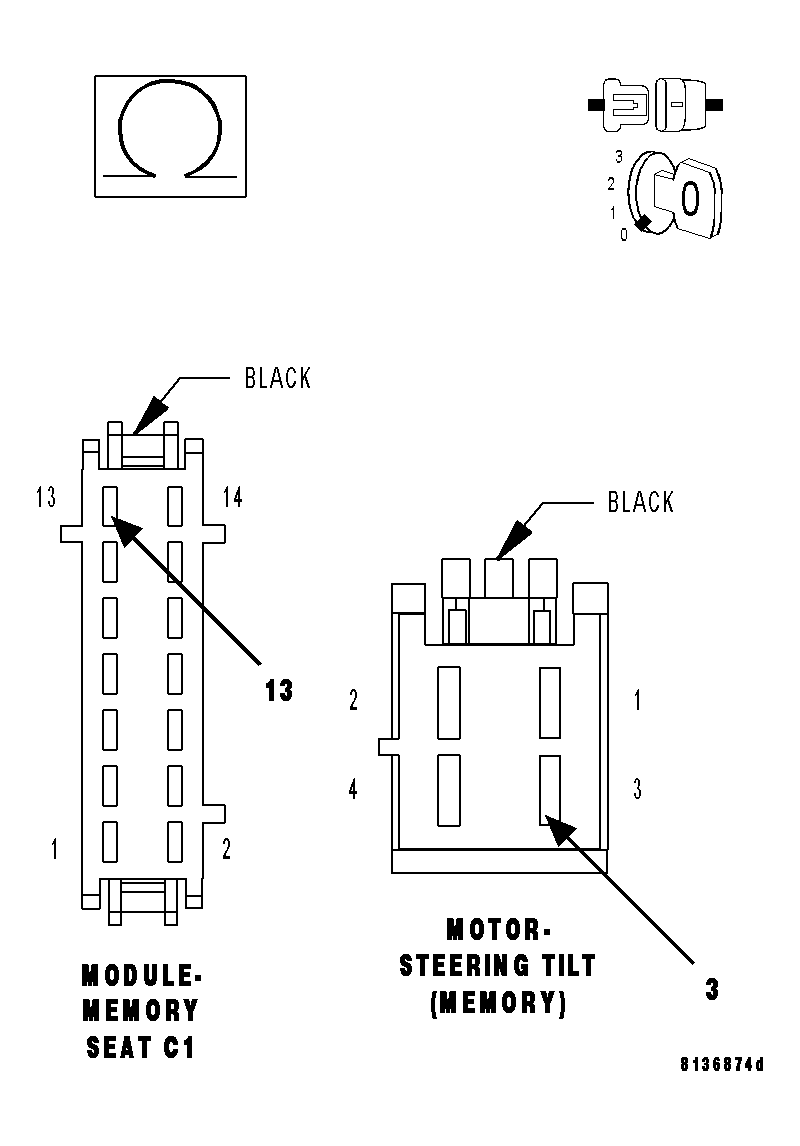

    Fig 1: Measuring Resistance Of Tilt Steering Up/Down Position Sense Circuit
    GC0013185Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the Memory Seat Module (MSM) C1 connector.

    Measure the resistance of the (P151) Tilt Steering Up/Down Position Sense circuit.

    Is the resistance above 5.0 ohms?

    Yes

    1. Repair the (P151) Tilt Steering Up/Down Position Sense circuit for an open.

    No

    1. Go to step  4).
  4. 4)  (P151) TILT STEERING UP/DOWN POSITION SENSE CIRCUIT SHORT TO VOLTAGE
    Fig 2: Measuring Voltage Of Tilt Steering Up/Down Position Sense Circuit
    GC0013186Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition on.

    Measure the voltage of the (P151) Tilt Steering Up/Down Position Sense circuit.

    Is there any voltage present?

    Yes

    1. Repair the (P151) Tilt Steering Up/Down Position Sense circuit for a short to voltage.

    No

    1. Go to step  5).
  5. 5)  (P151) TILT STEERING UP/DOWN POSITION SENSE CIRCUIT SHORT TO TILT/TELESCOPE MOTOR CIRCUIT(S)
    Fig 3: Measuring Resistance Between Circuits At Memory Seat Module (MSM) C1 Connector
    GC0013187Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Measure the resistance between the following circuits at the Memory Seat Module (MSM) C1 connector :

    1. The (P151) Tilt Steering Up/Down Position Sense circuit and the (P157) Telescope Steering Motor Forward/Rearward Driver circuit.
    1. The (P151) Tilt Steering Up/Down Position Sense circuit and the (P153) Tilt Steering Motor Up/Down Driver circuit.
    1. The (P151) Tilt Steering Up/Down Position Sense circuit and the (P953) Steering Motor Common circuit.

    Is the resistance below 5.0 ohms for any of the circuit tests?

    Yes

    1. Repair the (P151) Tilt Steering Up/Down Position Sense circuit for a short to the motor circuit(s).

    No

    1. Go to step  6).
  6. 6)  (G914) SENSOR RETURN CIRCUIT OPEN

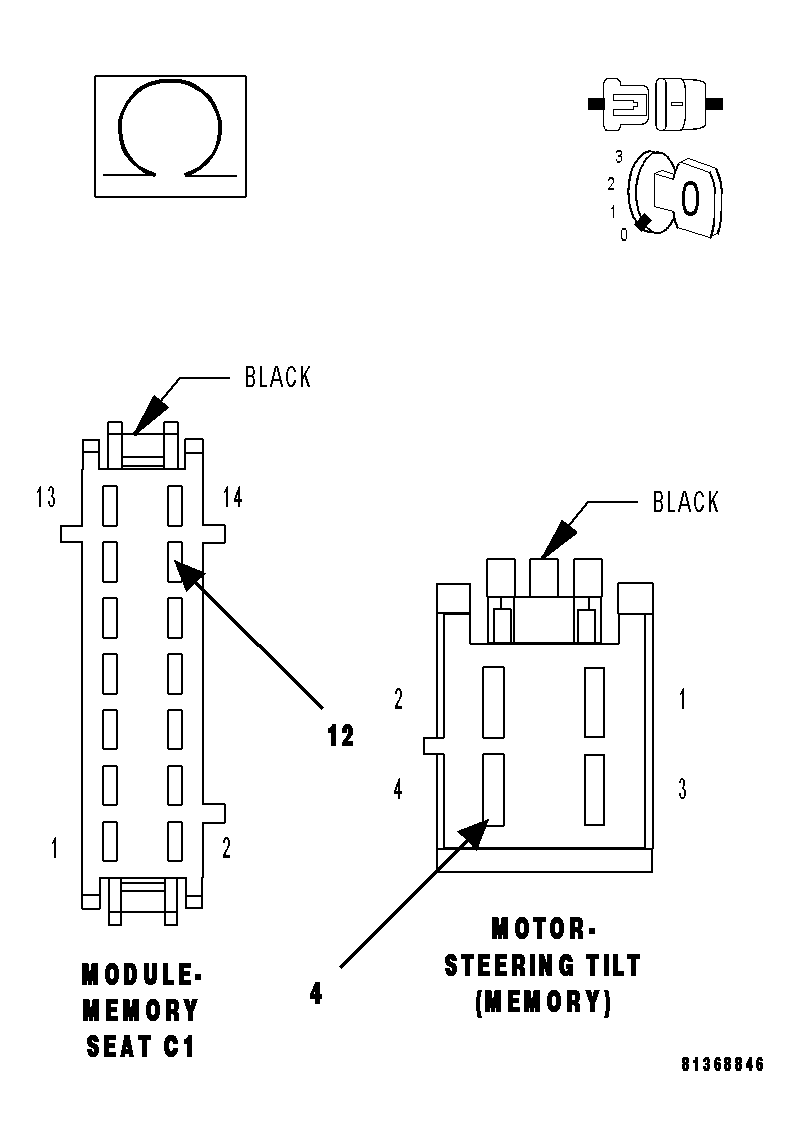

    Fig 4: Measuring Resistance Of Sensor Return Circuit
    GC0013188Courtesy of DAIMLERCHRYSLER CORP.

    Measure the resistance of the (G914) Sensor Return circuit.

    Is the resistance above 5.0 ohms?

    Yes

    1. Repair the (G914) Sensor Return circuit for an open.

    No

    1. Go to step  7).
  7. 7)  (G914) SENSOR RETURN CIRCUIT SHORT TO VOLTAGE
    Fig 5: Measuring Voltage Of Sensor Return Circuit
    GC0013189Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition on.

    Measure the voltage of the (G914) Sensor Return circuit.

    Is there any voltage present?

    Yes

    1. Repair the (G914) Sensor Return circuit for a short to voltage.

    No

    1. Go to step  9).
  8. 8)  STEERING COLUMN TILT MOTOR

    Thoroughly inspect the wiring and connectors between the Memory Seat Module harness connector and the Steering Tilt Motor for a short to voltage or to any other circuit. If any problems are found, repair as necessary. If no other problems are found, view repair.

    Repair

    1. Replace the Steering Column Tilt Motor in accordance with the Service Information.
  9. 9)  MEMORY SEAT MODULE (MSM)

    Thoroughly inspect the wiring and connectors between the Memory Seat Module harness connector and the Steering Tilt Motor harness connector for a short to voltage or to any other circuit. If any problems are found, repair as necessary. If no other problems are found, view repair.

    Repair

    1. Replace the Memory Seat Module (MSM) in accordance with the Service Information.
  10. 10)  INTERMITTENT STEERING COLUMN TILT POSITION SENSOR CIRCUIT HIGH DTC

    The conditions necessary to set this DTC are not present at this time.

    While monitoring the scan tool data relative to this circuit, wiggle test the component and connectors and move the switch to each position.

    Look for the data to change other than as expected or for the DTC to reset during the wiggle test.

    Were any problems found?

    Yes

    1. Repair as necessary.

    No

    1. Test complete.
