B2332-Horn Switch Input Circuit/Performance: Notes

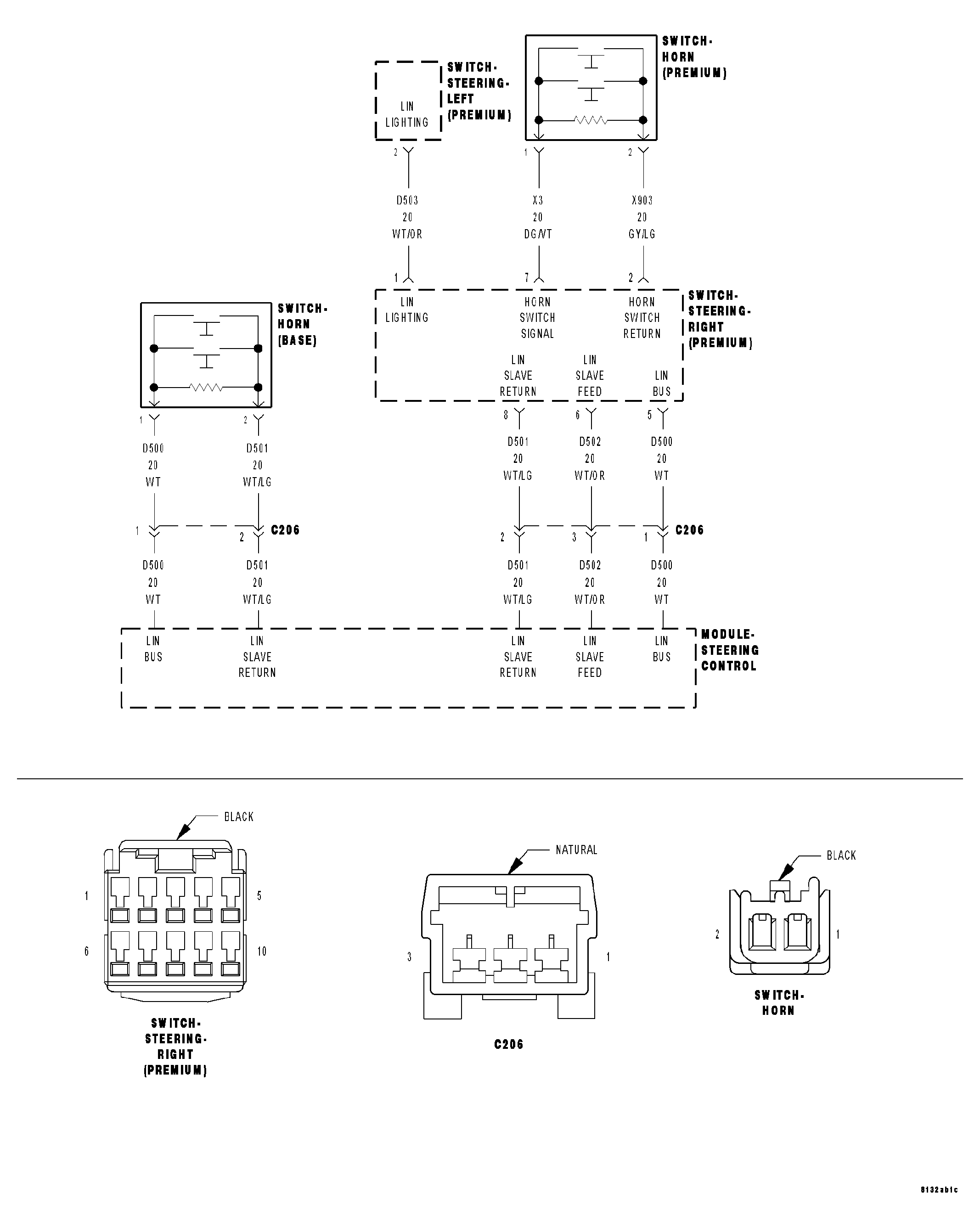

Fig 1: Horn Switch Circuit

GC0013212

Courtesy of DAIMLERCHRYSLER CORP.
