300 Base, 42RLE/VLP
>>
Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
Steering System - Electrical Diagnostics
>>
Column Electrical Diagnosis
>>
DTC Troubleshooting
>>
U0019-Can B Bus Circuit
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

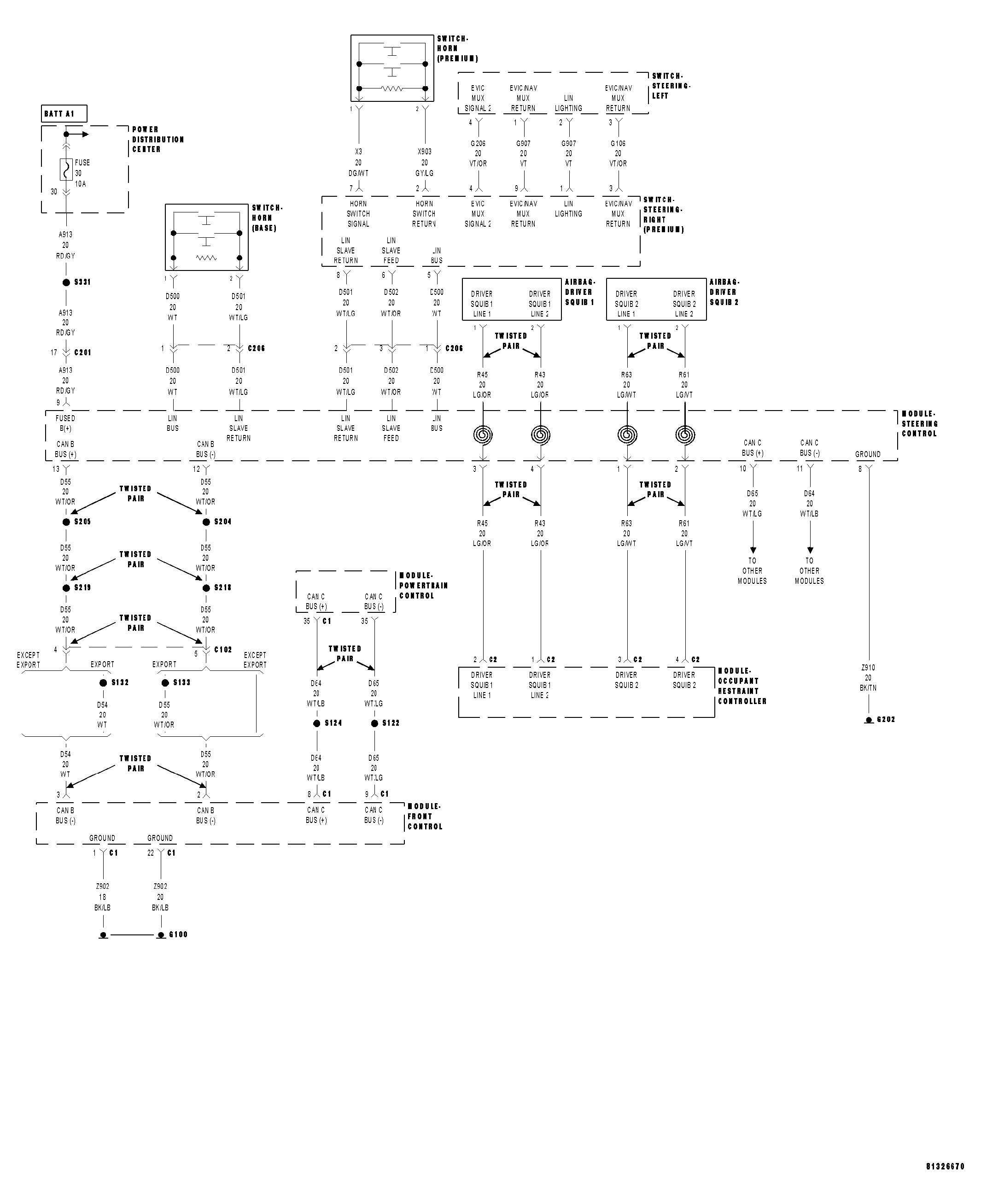

Fig 1: Steering Control Module Circuit Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
