Diagnostic Test

  1. 1) CHECKING THE RIGHT FRONT POWER WINDOW SWITCH
    Fig 1: Checking Right Front Power Window Switch
    GC0035560Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition on.

    Push and hold the Right Power Window Switch to roll down the window.

    While holding the Right Front Power Window Switch down and then up, measure the voltage of the Right Power Window Switch Sense circuit by backprobing the Right Front Power Window Switch harness connector.

    Is the voltage between 8.0 - 9.0 volts rolling the window down and between 4.0 - 5.0 volts rolling the window up?

    Yes

    1. Go to step  5).
    2. Perform BODY VERIFICATION TEST .

    No

    1. Go to step  2).
  2. 2) MEASURE THE VOLTAGE OF THE RIGHT POWER WINDOW SWITCH SENSE CIRCUIT
    Fig 2: Measuring Voltage Of Right Power Window Switch Sense Circuit
    GC0035563Courtesy of DAIMLERCHRYSLER CORP.

    Release the Right Power Window Switch.

    Turn the ignition off.

    Disconnect the Right Front Power Window Switch harness connector.

    NOTE: Check connectors - Clean/repair as necessary.

    Turn the ignition on.

    Measure the voltage of the Right Power Window Switch Sense circuit at the Right Front Power Window Switch harness connector.

    Is the voltage above 10 volts?

    Yes

    1. Go to step  4).

    No

    1. Go to step  3).
  3. 3) MEASURE RIGHT POWER WINDOW SWITCH SENSE CIRCUIT RESISTANCE
    Fig 3: Measuring Right Power Window Switch Sense Circuit Resistance
    GC0035564Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the Body Control Module (BCM) harness connector.

    NOTE: Check connectors - Clean/repair as necessary.

    Measure the resistance of the Right Power Window Switch Sense circuit from the Right Front Power Window Switch harness connector to the BCM C4 harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Replace the Body Control Module. (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES/BODY CONTROL/CENTRAL TIMER MODULE - REMOVAL) .
    2. Perform BODY VERIFICATION TEST .

    No

    1. Repair the Right Power Window Switch Sense circuit for an open.
    2. Perform BODY VERIFICATION TEST .
  4. 4) MEASURE GROUND CIRCUIT RESISTANCE
    Fig 4: Measuring Ground Circuit Resistance
    GC0035565Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the Body Control Module (BCM) harness connector.

    NOTE: Check connectors - Clean/repair as necessary.

    Measure the resistance of the Ground circuit from the Right Front Power Window Switch harness connector to the BCM C4 harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Replace the Right Front Power Window Switch. (Refer to ELECTRICAL/POWER WINDOWS/POWER WINDOW SWITCH - REMOVAL) .
    2. Perform BODY VERIFICATION TEST .

    No

    1. Repair the Ground circuit for an open.
    2. Perform BODY VERIFICATION TEST .
  5. 5) TEST THE RIGHT FRONT POWER WINDOW MOTOR

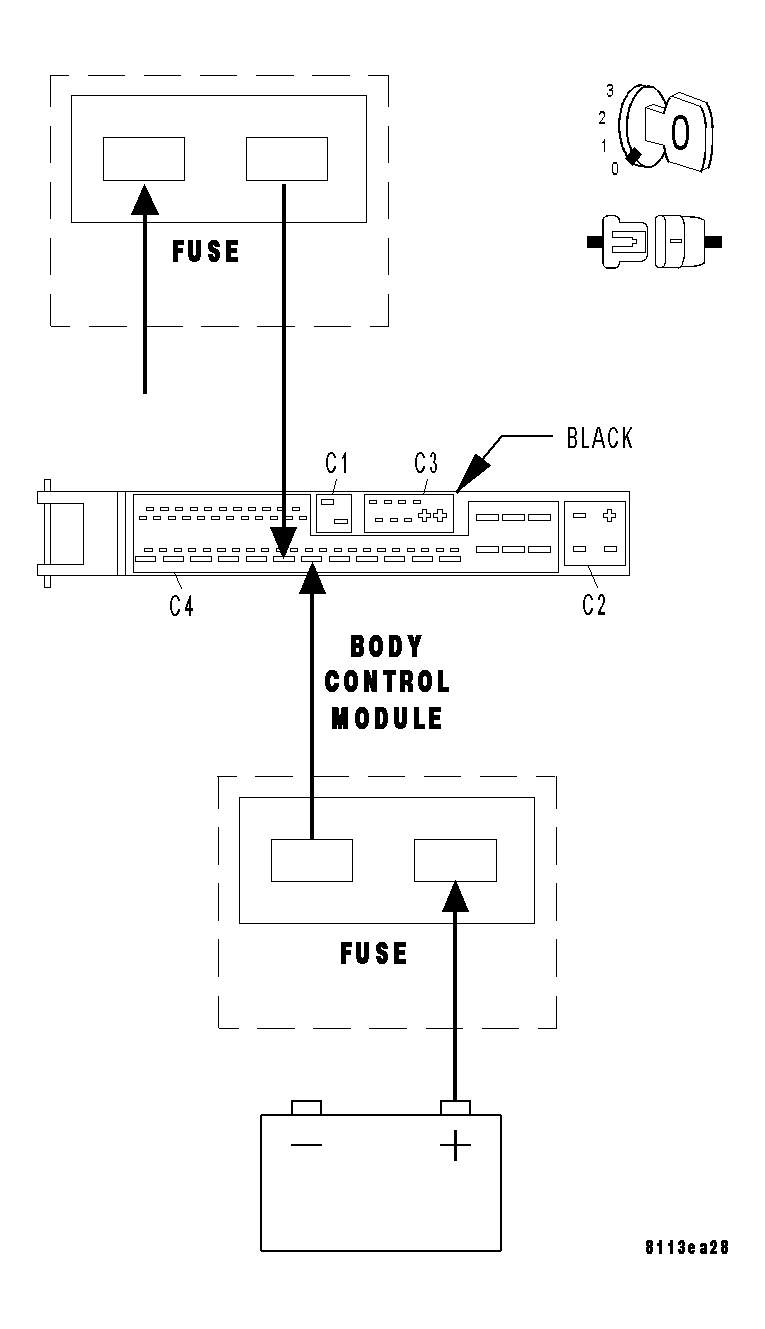

    Fig 5: Testing Right Front Power Window Motor
    GC0035561Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the Body Control Module (BCM) harness connector.

    NOTE: Check connectors - Clean/repair as necessary.

    Connect a fused jumper wire from cavity 10 of the BCM C4 harness connector to B(+).

    Connect a second fused jumper wire to cavity 11 of the BCM C4 harness connector and momentarily connect the jumper to ground.

    Note the window movement; if the Right front window does not move, reverse the jumper wires at the B(+) and ground connections.

    Did the Right front window move upward or downward?

    Yes

    1. Replace the Body Control Module. (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES/BODY CONTROL/CENTRAL TIMER MODULE - REMOVAL) .
    2. Perform BODY VERIFICATION TEST .

    No

    1. Go to step  6).
  6. 6) MEASURE RIGHT FRONT POWER WINDOW DRIVER MOTOR CIRCUIT RESISTANCE

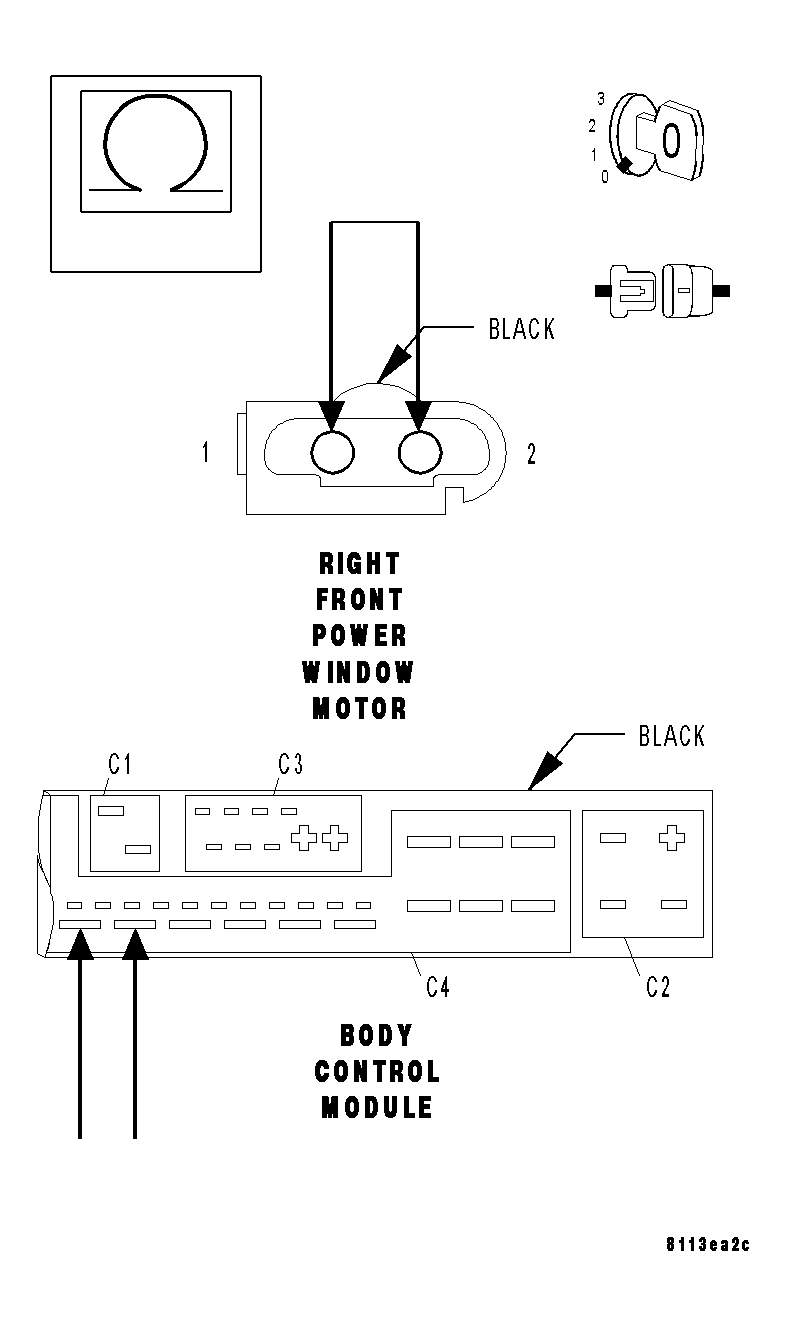

    Fig 6: Measuring Right Front Power Window Driver Motor Circuit Resistance
    GC0035562Courtesy of DAIMLERCHRYSLER CORP.

    With the ignition off.

    Disconnect the Right Front Power Window Motor harness connector.

    NOTE: Check connectors - Clean/repair as necessary.

    Connect a jumper wire between cavity 1 and cavity 2 of the Right Front Power Window Motor harness connector.

    Measure the resistance between cavity 10 and cavity 11 of the BCM C4 harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Replace the Right Front Power Window Motor. (Refer to ELECTRICAL/POWER WINDOWS/WINDOW MOTOR - REMOVAL) .
    2. Perform BODY VERIFICATION TEST .

    No

    1. Repair the Right Front Power Window Drive circuit(s) for an open.
    2. Perform BODY VERIFICATION TEST .
