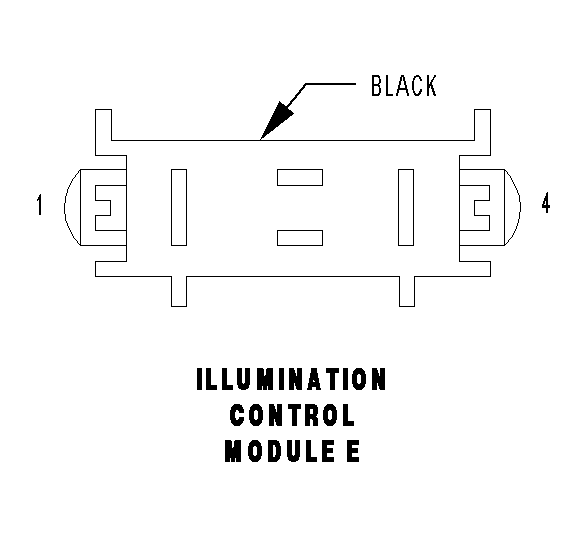

Illumination Control Module E Connector End View
ILLUMINATION CONTROL MODULE E - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
12RD |
FUSED B(+) |
| 2 |
20DG/VT |
PARK BRAKE SWITCH SENSE |
| 3 |
- |
- |
| 4 |
12PK/RD |
FUSED IGNITION SWITCH OUTPUT |
