Battery System: Tray: Removal: Notes

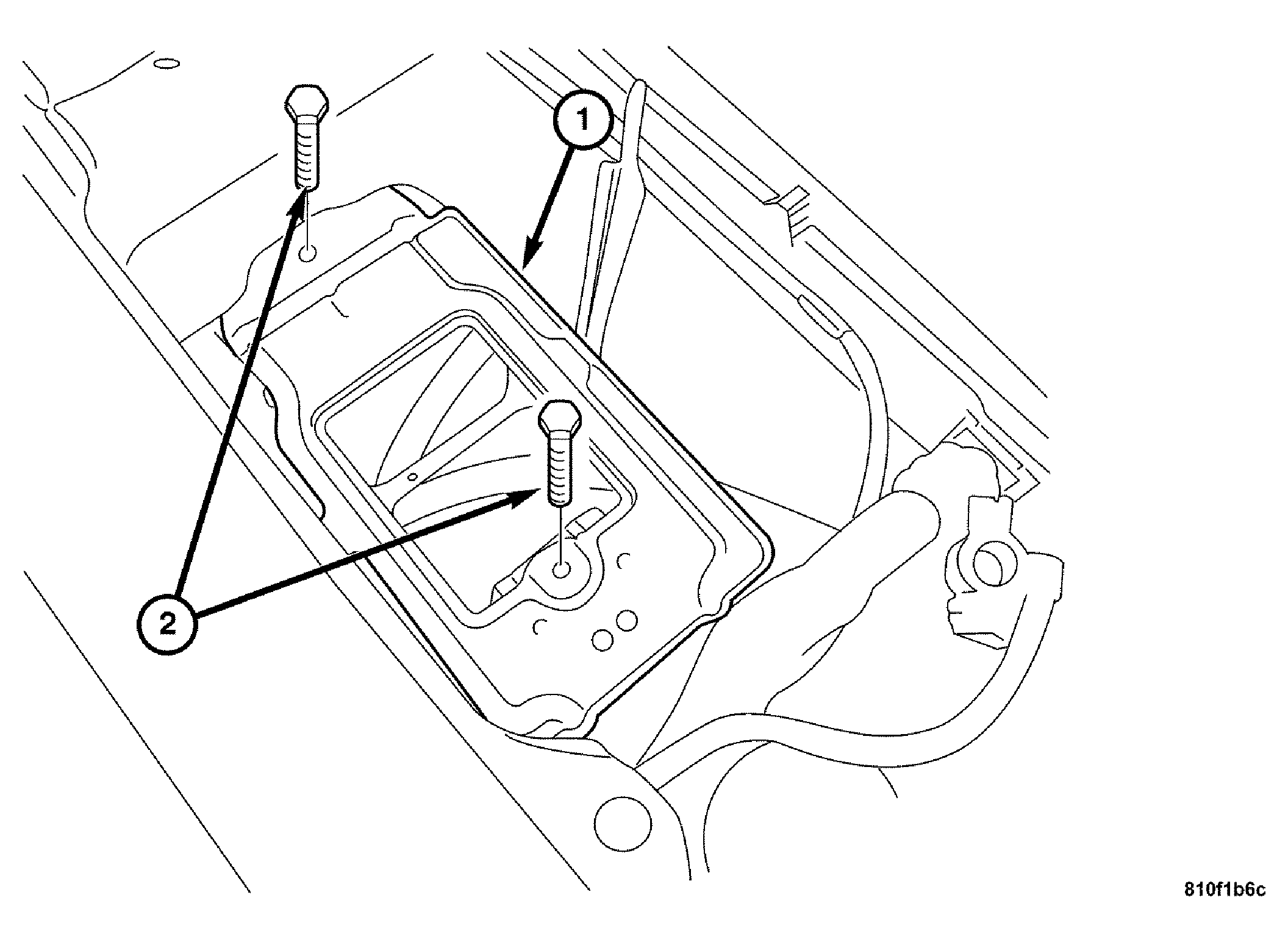

Fig 1: Removing Battery Tray - LHD
GC0034875Courtesy of DAIMLERCHRYSLER CORP.
1 - BATTERY TRAY
2 - BOLTS
  1. Remove the battery. (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL) .
  2. Remove the battery tray (1) retaining bolts (2).
  3. Remove the battery tray (1).
