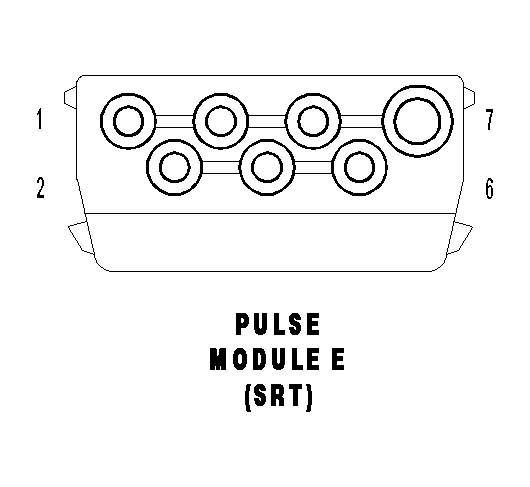

Pulse Module E (SRT) Connector End View
PULSE MODULE E (SRT) - 7 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
18PK/RD |
FUSED IGNITION SWITCH OUTPUT |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
18GY/BL |
CHARGE AIR COOLER CIRCULATION PUMP CONTROL |
| 6 |
- |
- |
| 7 |
18RD/BL |
CHARGE AIR COOLER CIRCULATION PUMP DRIVER |
