P0660 - Boost Pressure Control Unit: Notes

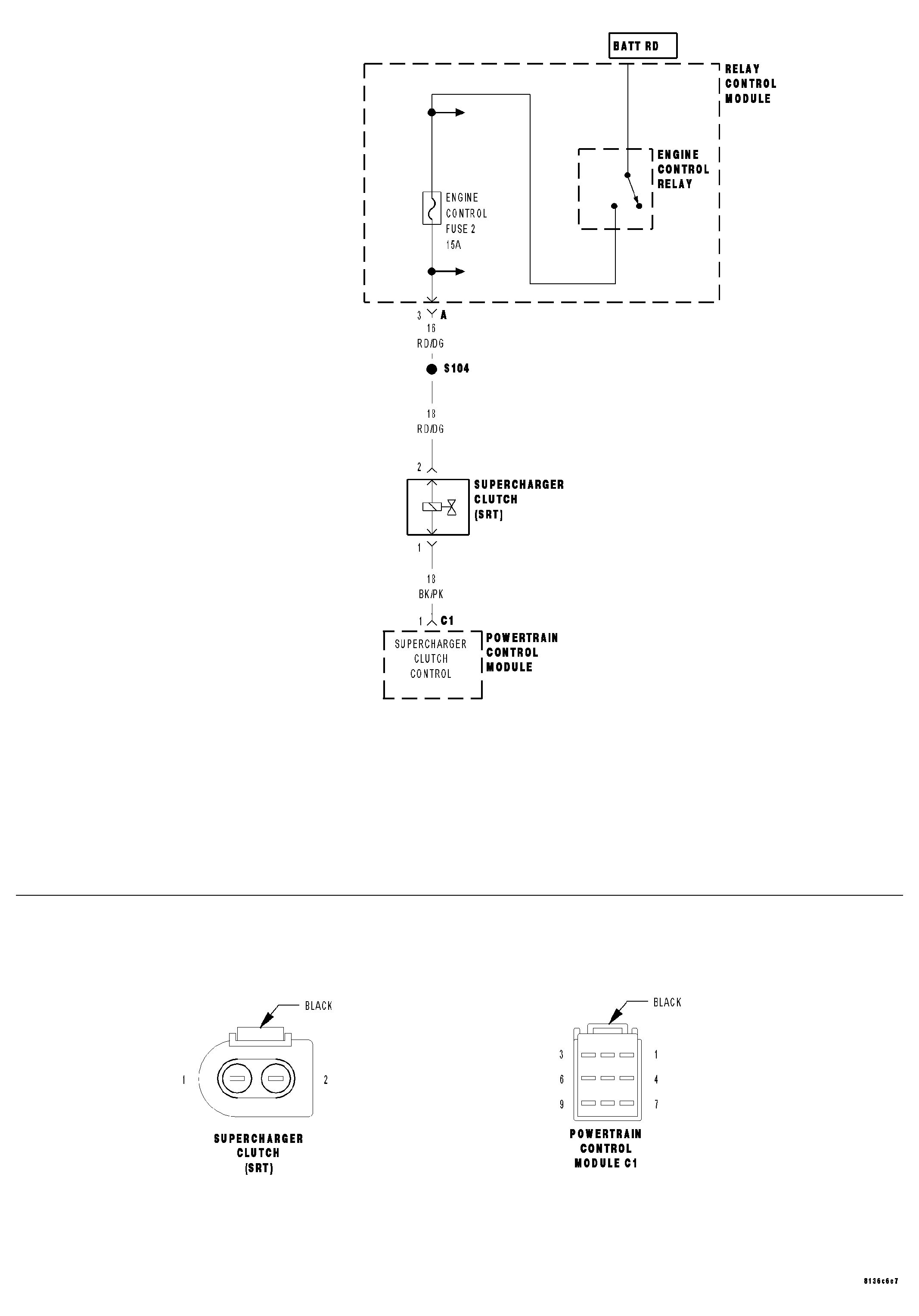

Fig 1: Supercharger Clutch Control Circuit Schematic
GC0034368Courtesy of DAIMLERCHRYSLER CORP.
