DTC 02-04: Airbag Warning Indicator Circuit Short To Ground Or Open: Notes

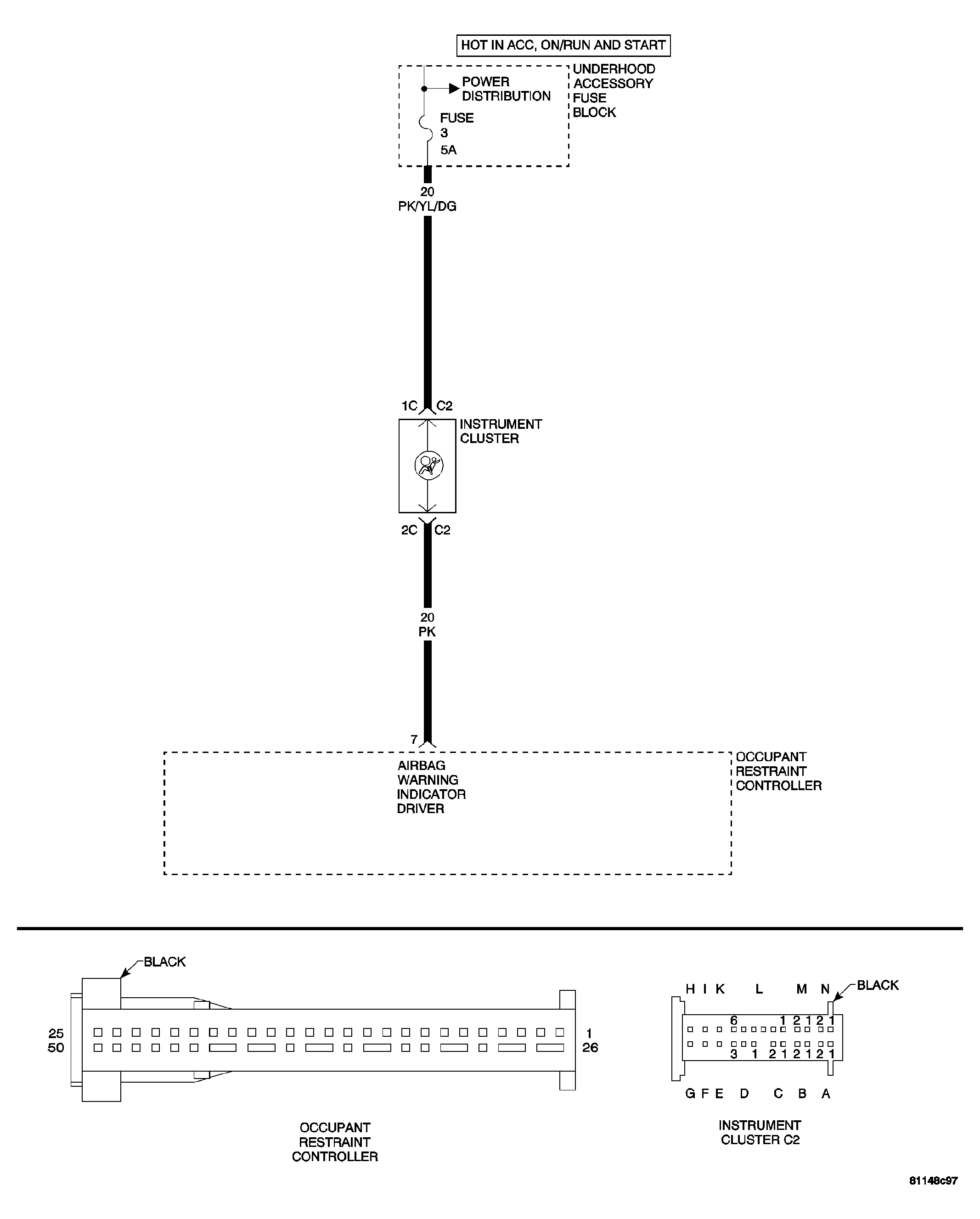

Fig 1: Airbag Warning Indicator Circuit Diagram
GC0035626Courtesy of DAIMLERCHRYSLER CORP.
