Ignition Lock Cable: Installation

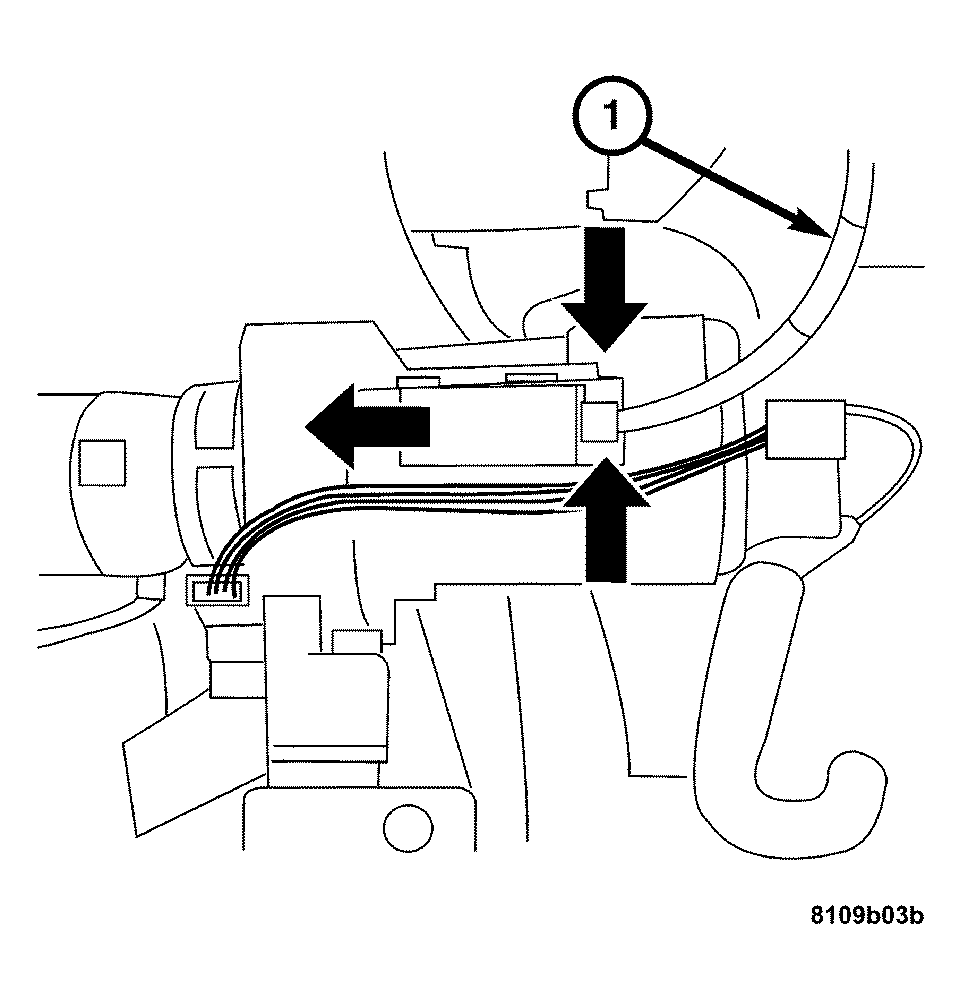

Fig 1: Removing/Installing Ignition Lock Cable To Ignition/Starter Switch

Courtesy of DAIMLERCHRYSLER CORP.

Install the ignition lock cable (1) to the ignition/starter switch by sliding it into the retaining slot until the tabs click.

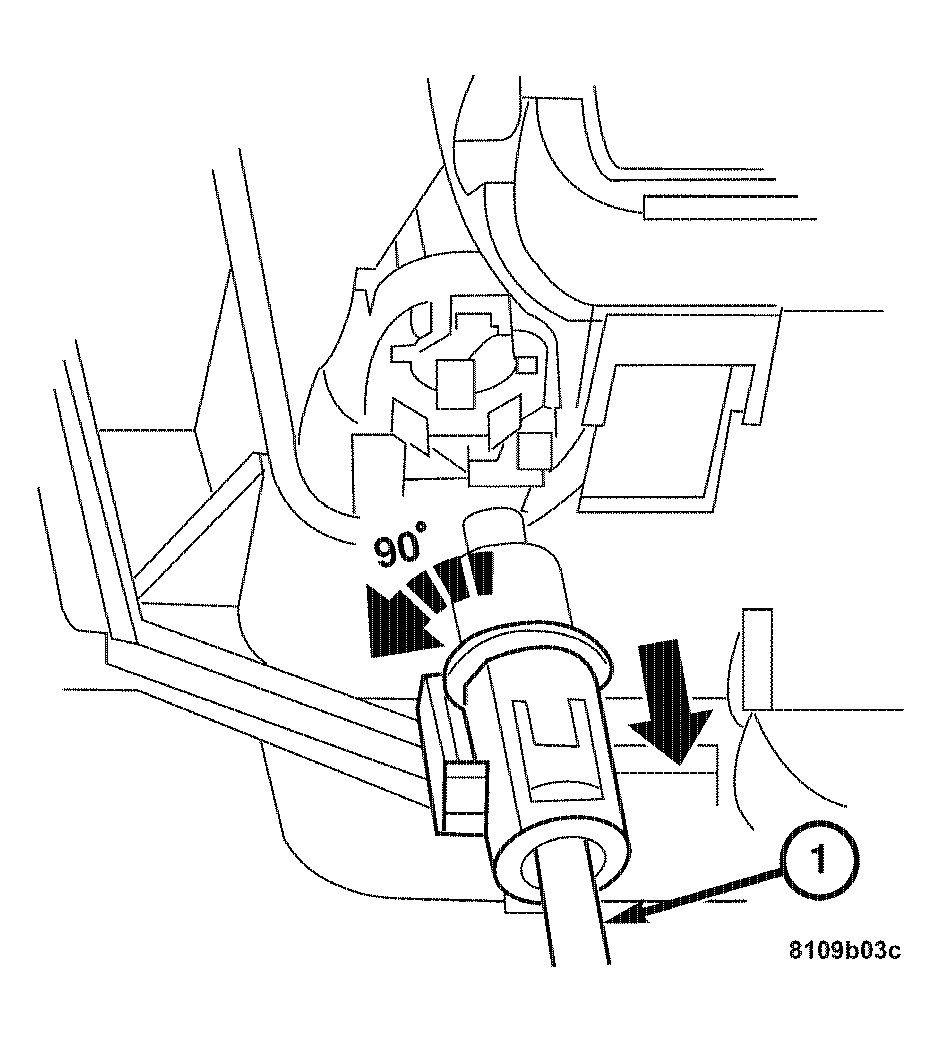

Fig 2: Removing/Installinging Ignition Lock Cable
Courtesy of DAIMLERCHRYSLER CORP.
Install the ignition lock cable (1) to the shift lever assembly by inserting it into the mounting hole and then turning it 90° to the right.
Turn the ignition switch to the OFF/LOCK position. It should only be possible to move the shift lever out of the Park position when the ignition switch is in the ON/RUN position and the brake pedal is depressed. It should only be possible to remove the ignition key when the shift lever is in the Park position and the ignition switch is in the OFF/LOCK position.

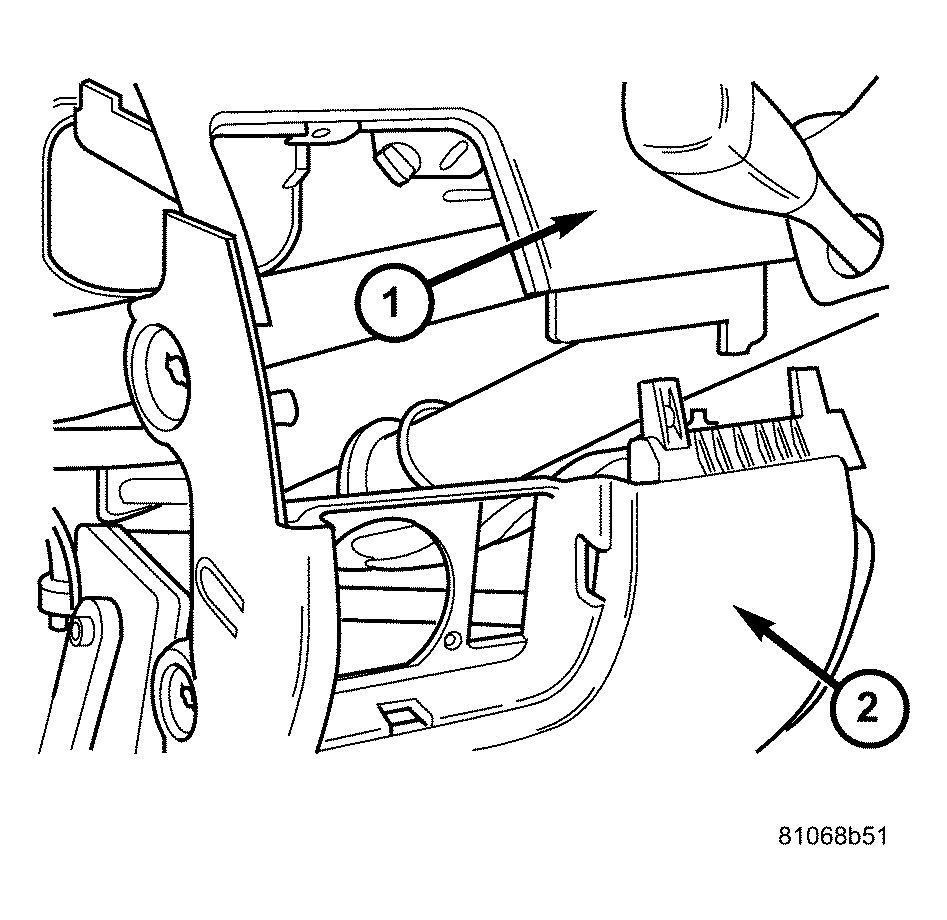

Fig 3: Identifying Cluster Cover & Lower Panel
Courtesy of DAIMLERCHRYSLER CORP.
Install the lower instrument panel (2). (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION) .

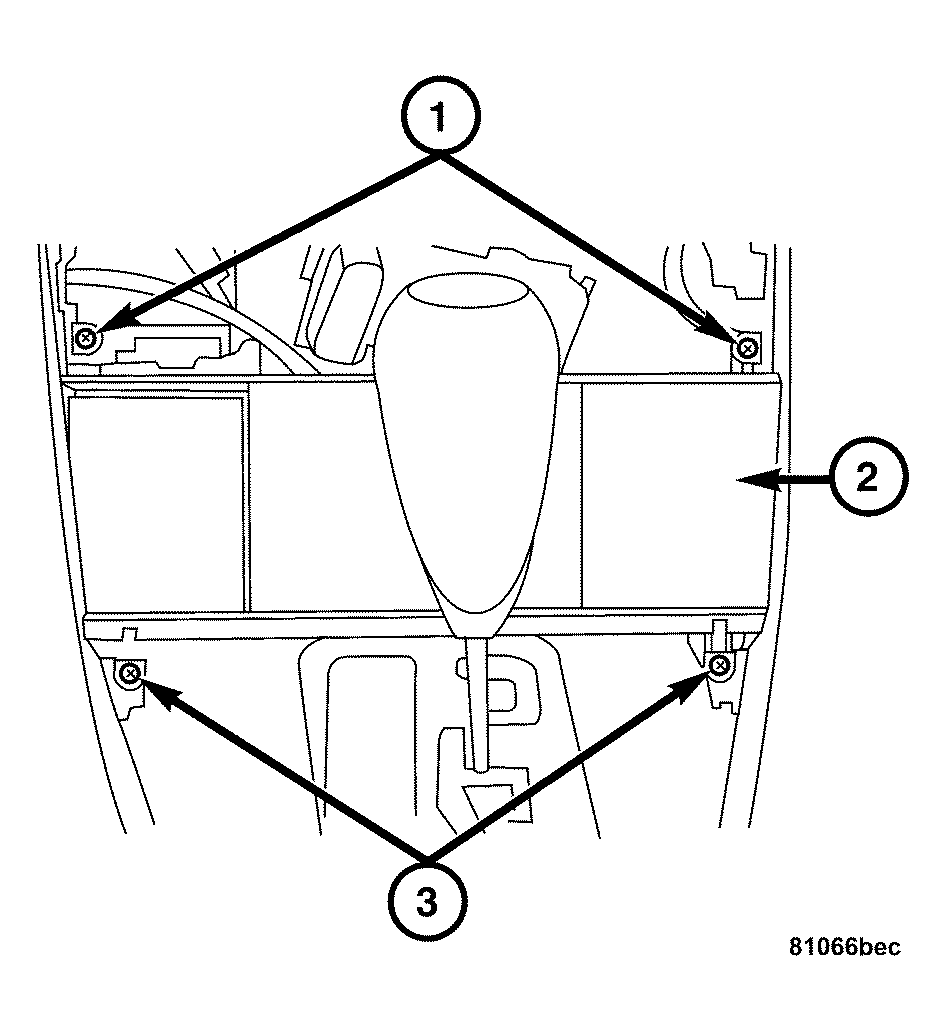

Fig 4: Removing/Installing Ash Tray
Courtesy of DAIMLERCHRYSLER CORP.
Install the ash tray (2) in the front center console.

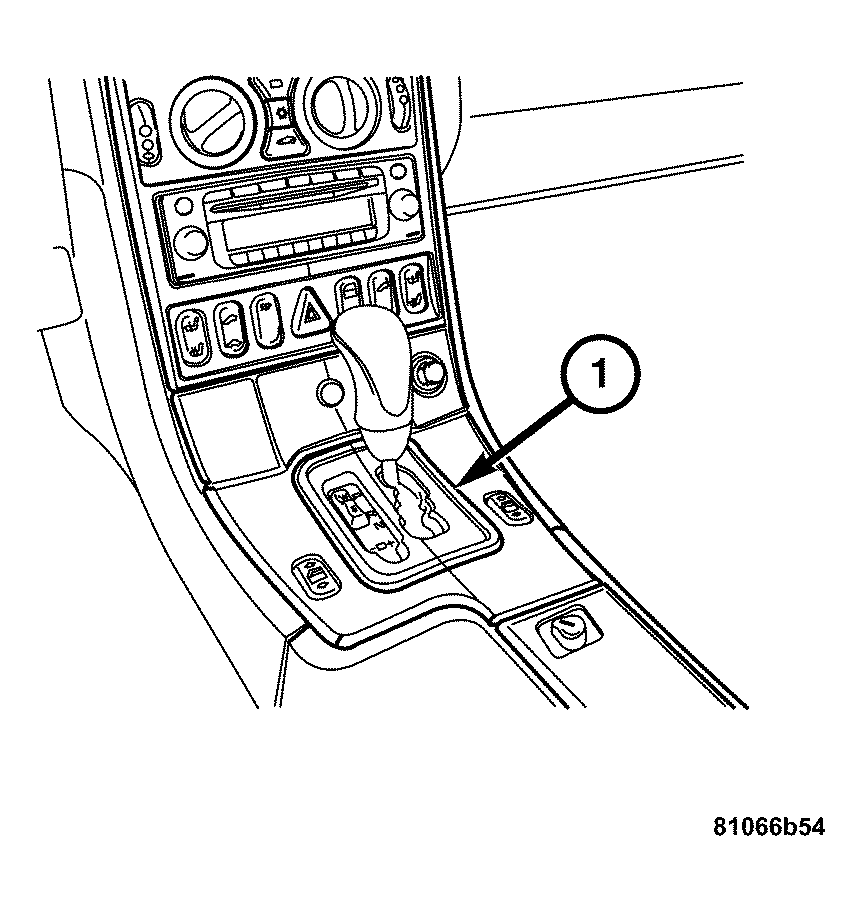

Fig 5: Identifying Shift Lever Cover
Courtesy of DAIMLERCHRYSLER CORP.
Install the shifter cover (1). (Refer to BODY/INTERIOR/CENTER CONSOLE - INSTALLATION) .
