Rack & Pinion Power Steering System: Linkage: Damper: Installation: Notes

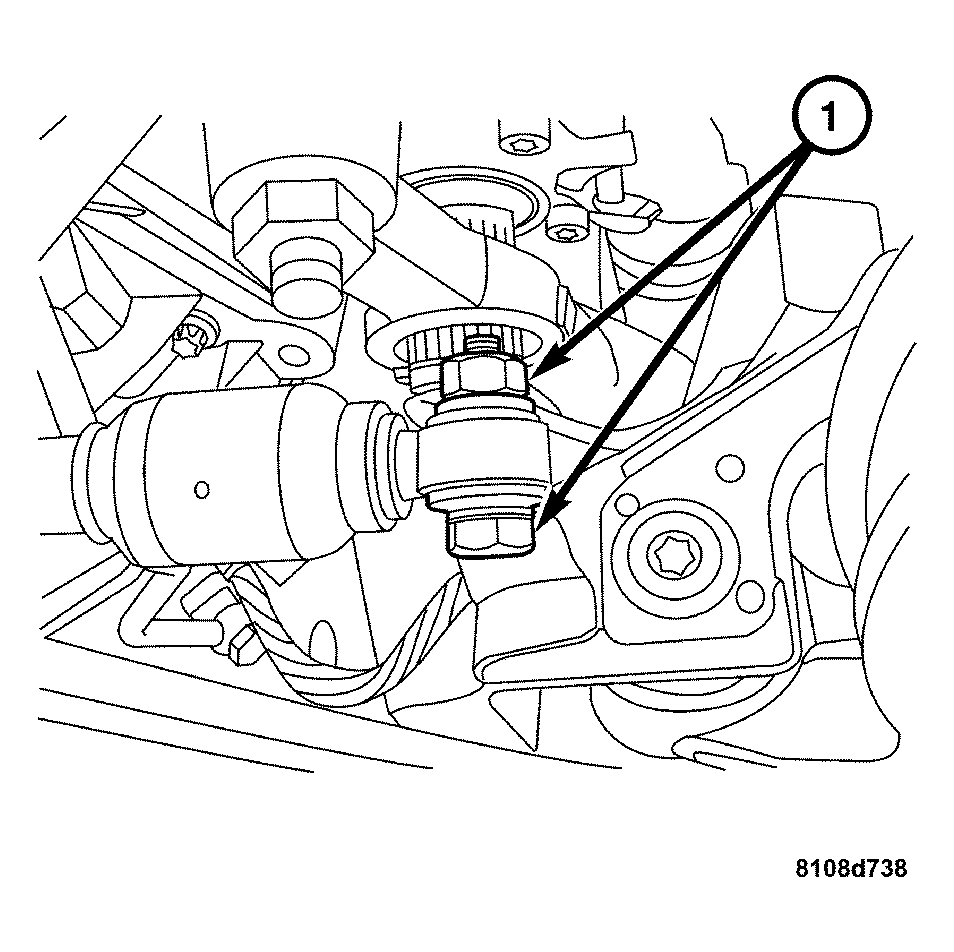

Fig 1: Removing/Installing Nut & Bolt From Steering Damper Mounting Bracket - LHD

Courtesy of DAIMLERCHRYSLER CORP.

1. Install the steering damper into the vehicle.
2. Install the nut and bolt to the drag link. Tighten to 40 N.m (29 ft. lbs.).
3. Install the bolt and nut (1) to the steering damper bracket. Tighten to 40 N.m (29 ft. lbs.).
