Pitman Arm: Installation: Notes

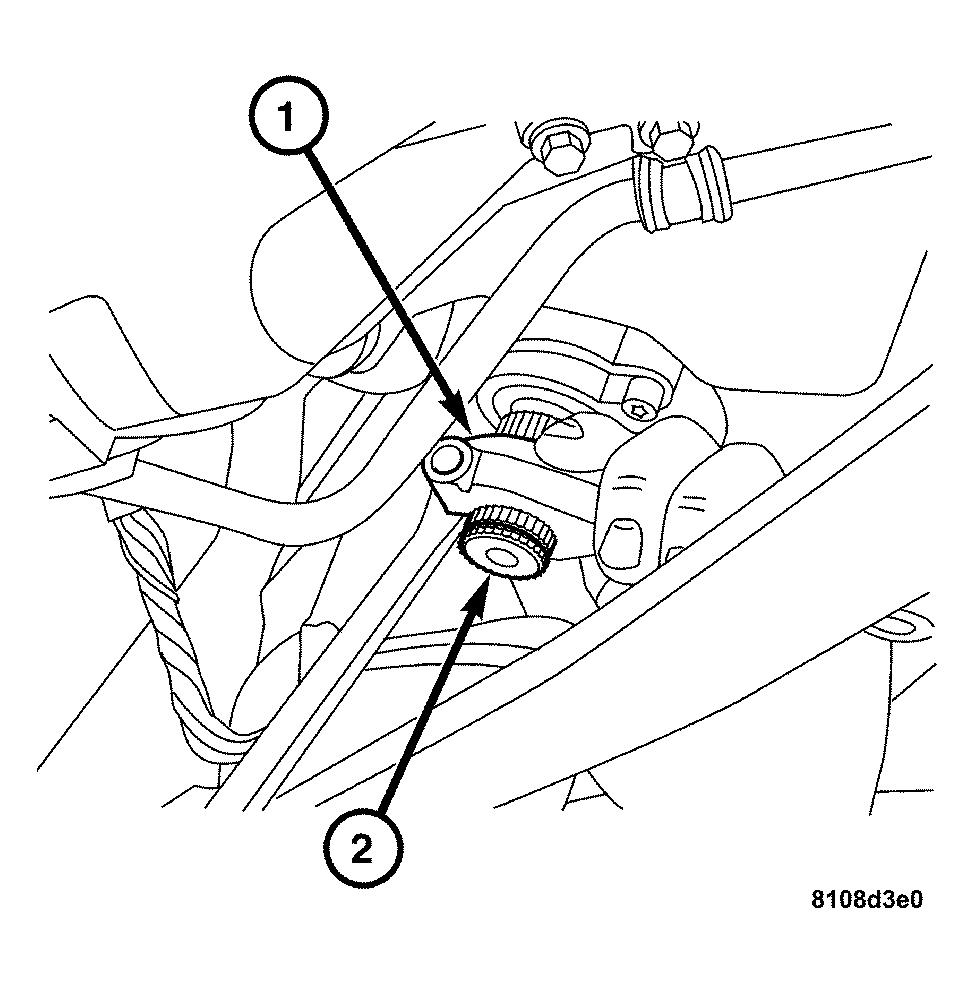

Fig 1: Removing/Installing Pitman Arm

Courtesy of DAIMLERCHRYSLER CORP.

Remove any oil and grease from the splined section of the pitman arm shaft and the pitman arm.
Install the pitman arm (1) to the pitman arm shaft (2).

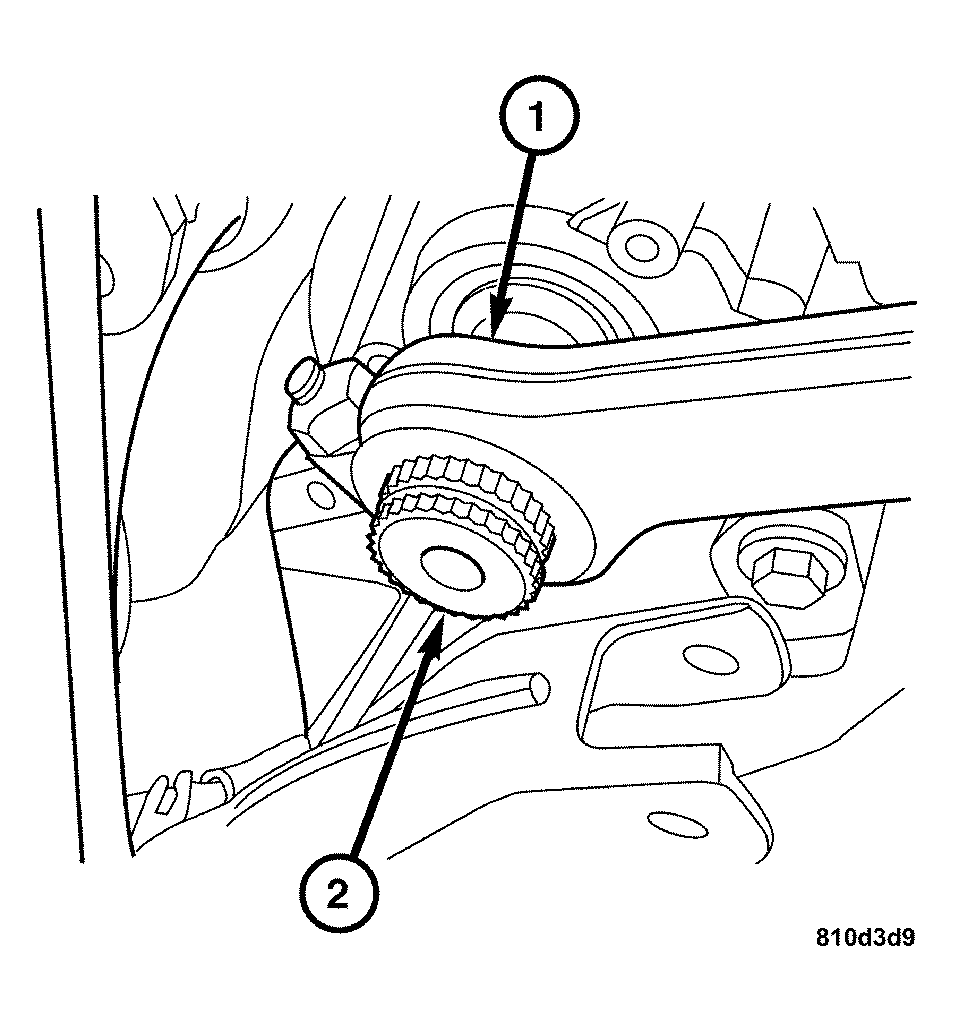

Fig 2: Removing/Installing Snap Ring At Pitman Arm (LHD)
Courtesy of DAIMLERCHRYSLER CORP.
Install the snap ring (2).

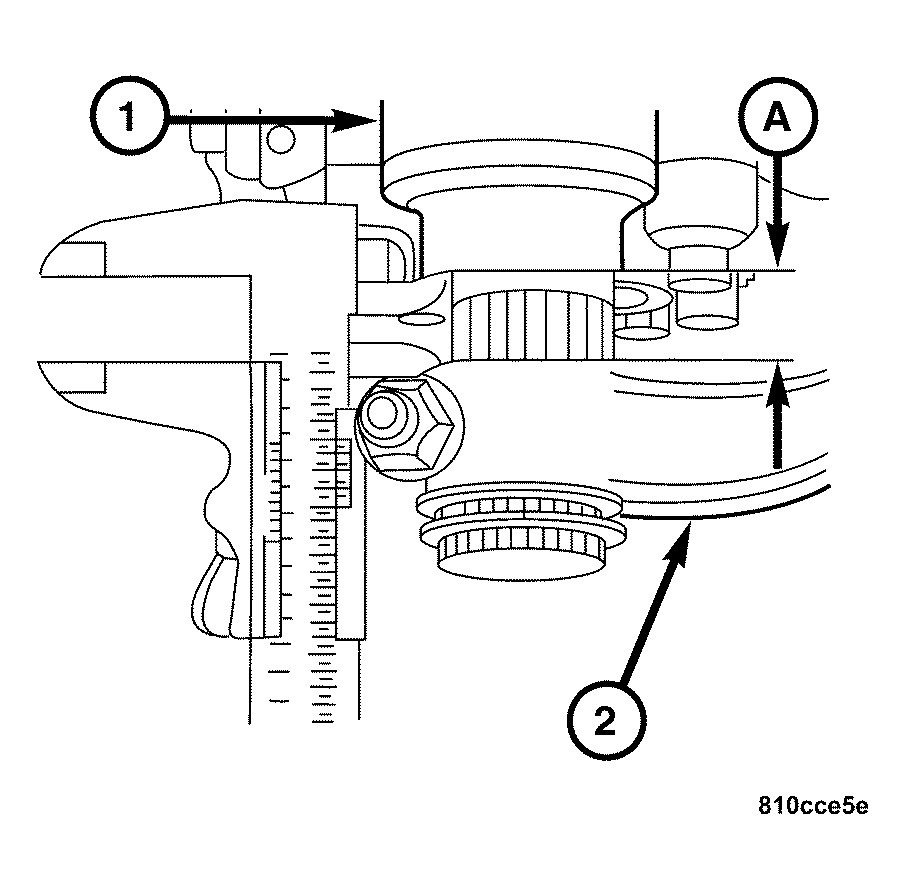

Fig 3: Removing/Installing Pitman Arm
Courtesy of DAIMLERCHRYSLER CORP.
Install the pitman arm to the previously measured depth of measurement "A". Tighten the pinch bolt to 55 N.m (41 ft. lbs.).
