Glow Plug: Installation

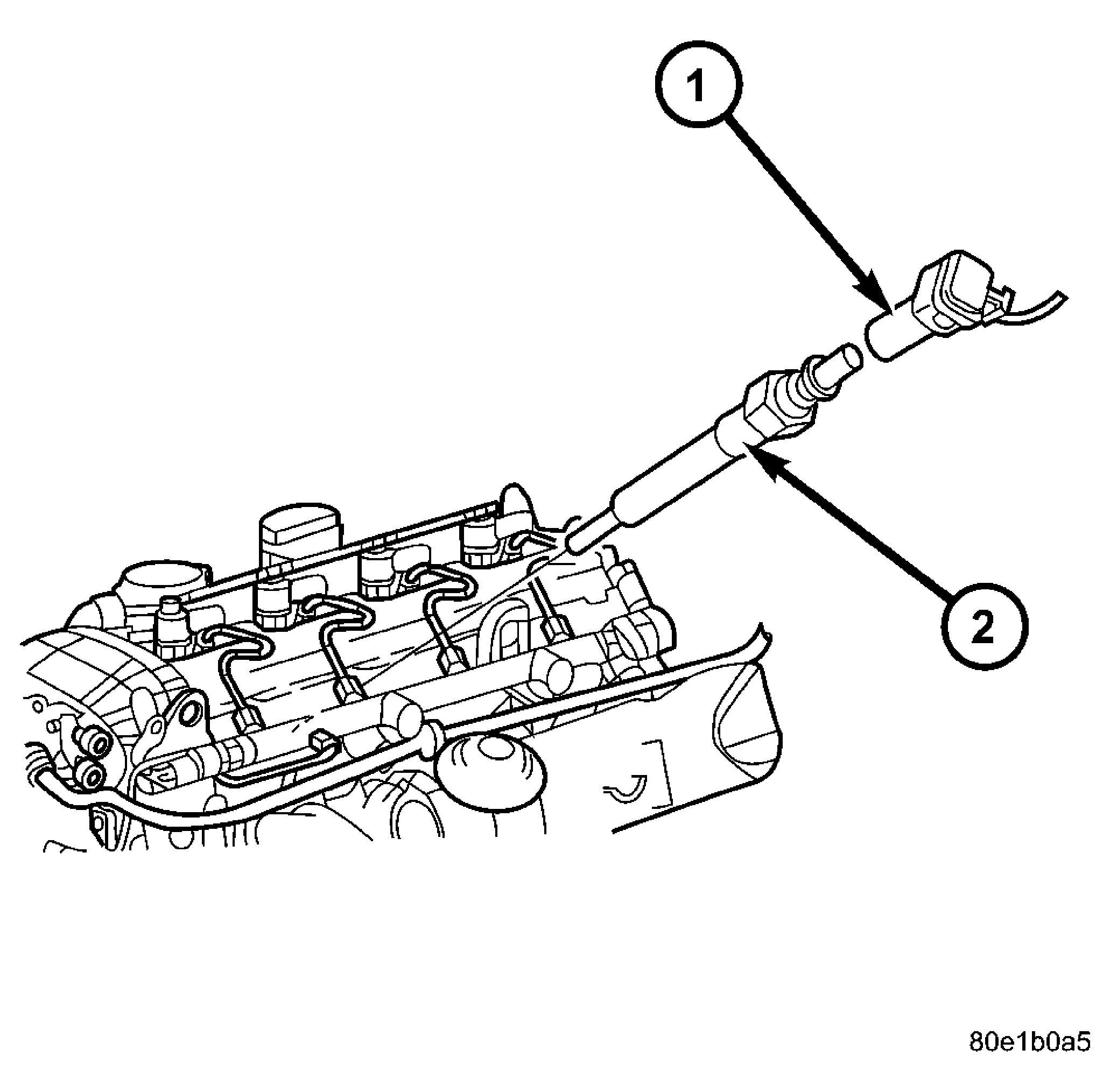

Fig 1: GLOW PLUG LOCATION - TYPICAL
GC0043578Courtesy of DAIMLERCHRYSLER CORP.
1 - GLOW PLUG ELECTRICAL CONNECTOR
2 - GLOW PLUG
  1. Clean glow plug bay and install glow plug (2). See Fig 1. Tighten glow plugs to 12 N.m (106 lbs. in.).
  2. Connect glow plug electrical connector (1). See Fig 1.

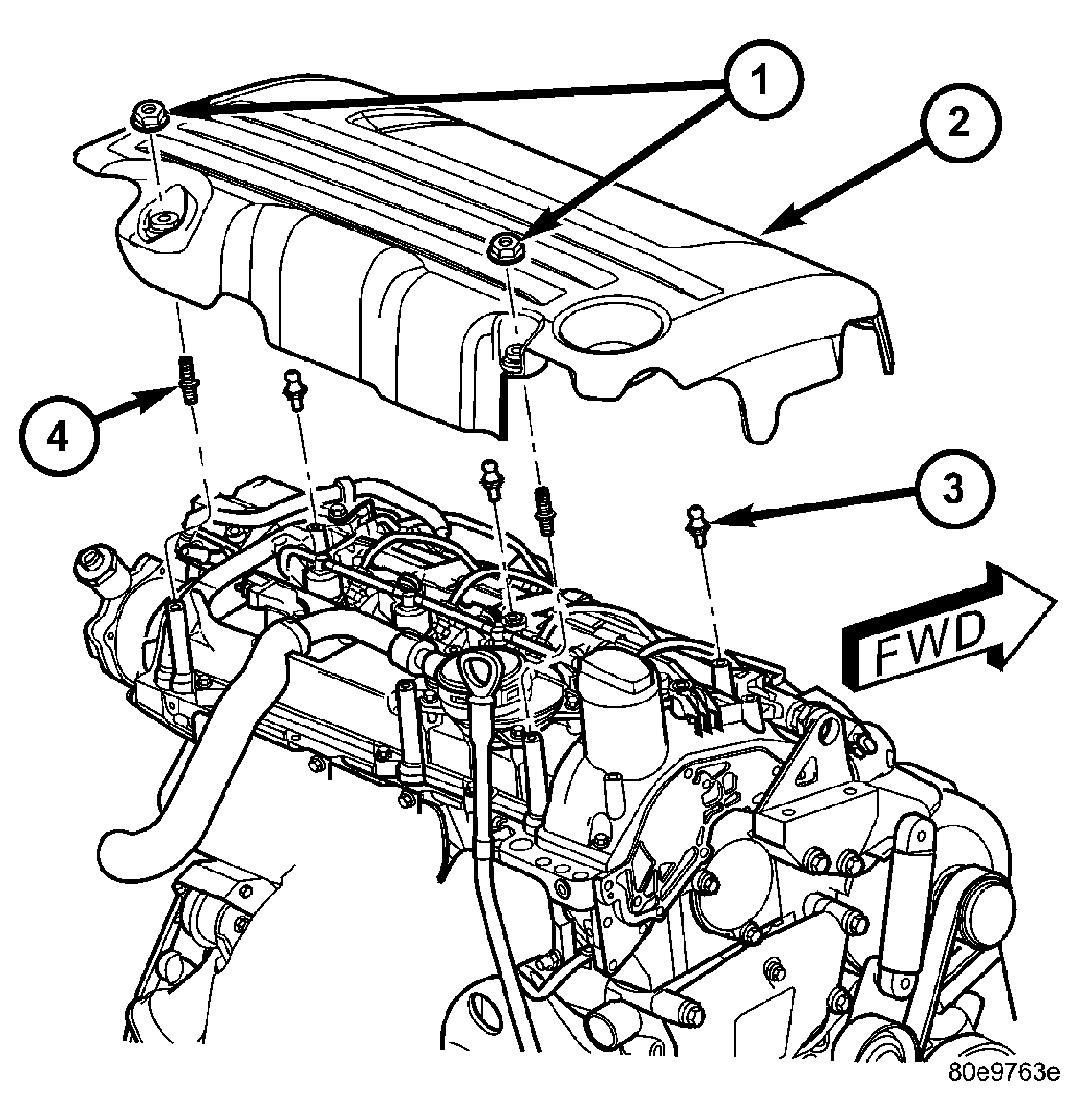

    Fig 2: Engine Cover And Mounting Fasteners
    GC0043579Courtesy of DAIMLERCHRYSLER CORP.
    1 - ENGINE COVER RETAINING NUTS
    2 - ENGINE COVER
    3 - ENGINE COVER MOUNTS
    4 - ENGINE COVER MOUNTING STUDS
  3. Install engine cover (2).

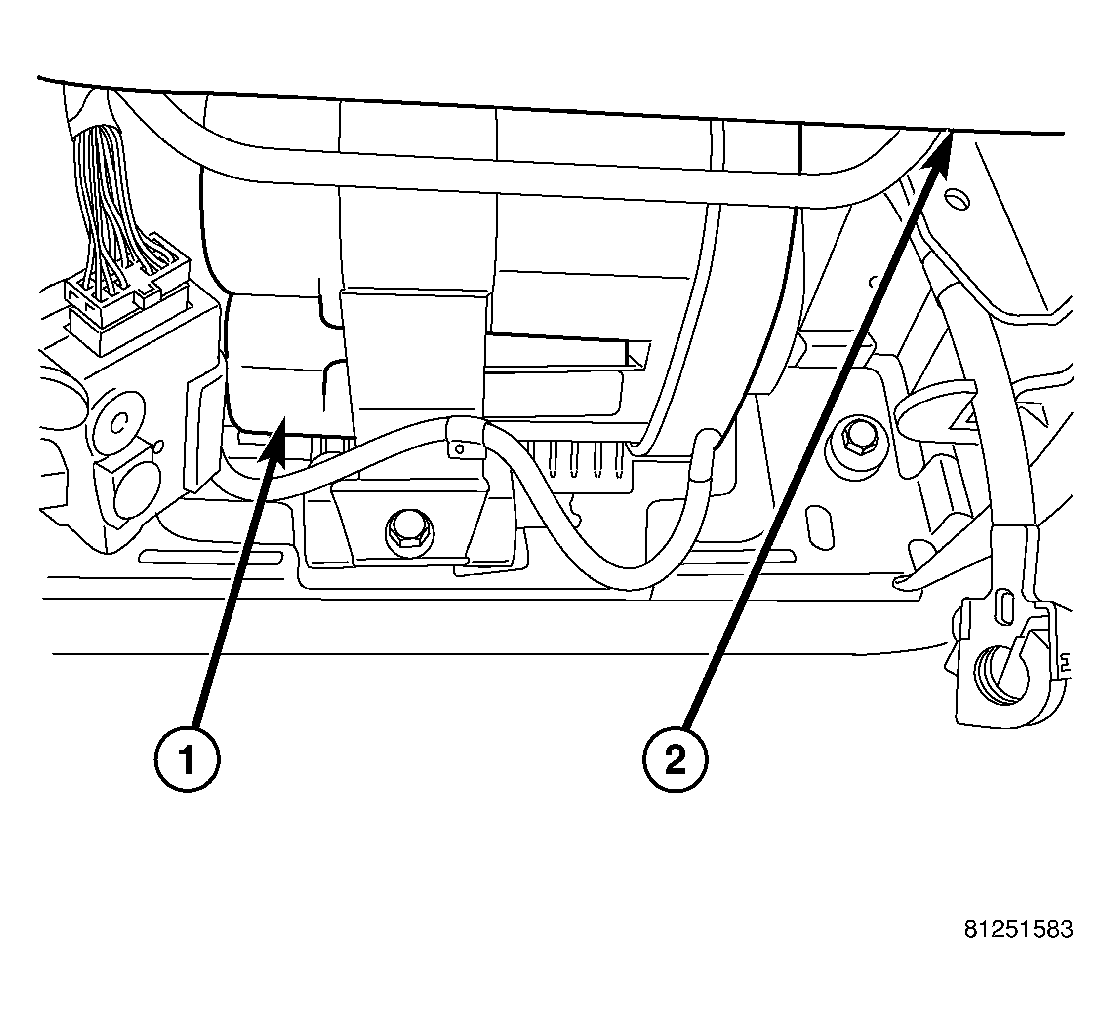

    Fig 3: Location Of Battery
    GC0043580Courtesy of DAIMLERCHRYSLER CORP.
    1 - BATTERY
    2 - PASSENGER SEAT
  4. Connect negative battery (1) cable.
