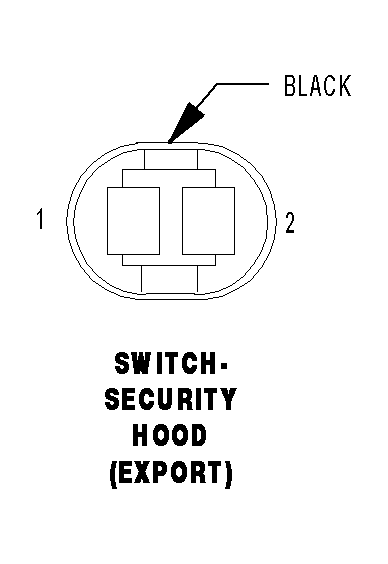

Security Hood Switch (Export) Connector End View
SWITCH-SECURITY HOOD (EXPORT) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G70 20BR/TN |
HOOD AJAR SWITCH SENSE |
| 2 |
Z902 20BK |
GROUND |
