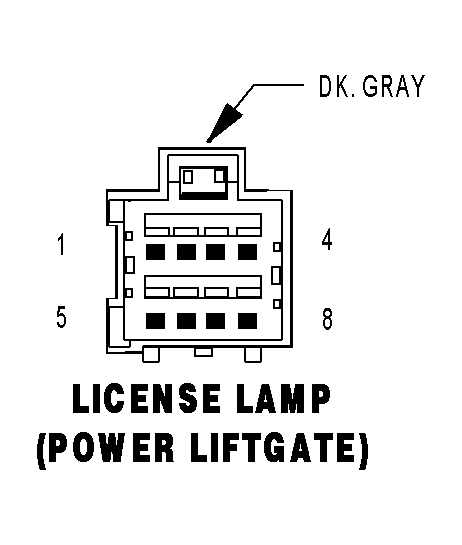

License Lamp (Power Liftgate) Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
LICENSE LAMP (POWER LIFTGATE) - DK. GRAY 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L77 18WT/BR | FUSED PARK LAMP RELAY OUTPUT (LEFT) |
| 2 | Z367 20BK/BR | GROUND |
| 3 | P30 20TN/DG | LIFTGATE HANDLE SWITCH SENSE |
| 4 | Z430 20BK/LG | GROUND |
| 5 | Q94 22TN/LG | LIFTGATE CHIME DRIVER |
| 6 | Z294 20BK/LG | GROUND |
| 7 | G32 20VT/LB | LIFTGATE TEMPERATURE SENSOR SIGNAL |
| 8 | Z78 20BK/OR | GROUND |
