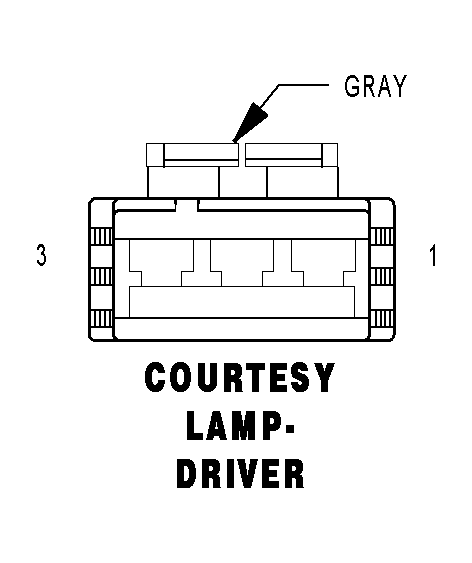

Driver Courtesy Lamp Connector End View
COURTESY LAMP-DRIVER - GRAY 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z321 20BK/BR |
GROUND |
| 2 |
- |
- |
| 3 |
M43 20OR/LB |
LEFT DOOR COURTESY LAMP DRIVER |
