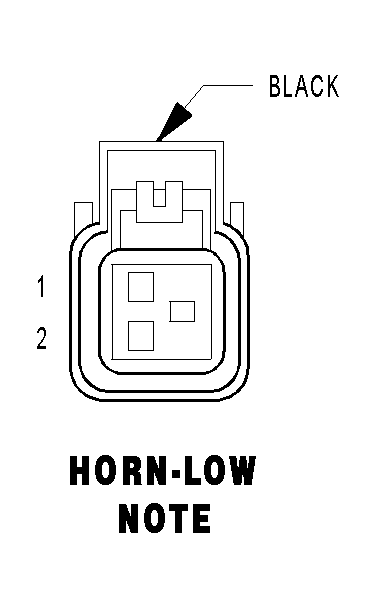

Low Note Horn Connector End View
HORN-LOW NOTE - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z298 16BK/DB |
GROUND |
| 2 |
X2 16DG/OR |
HORN RELAY OUTPUT |
