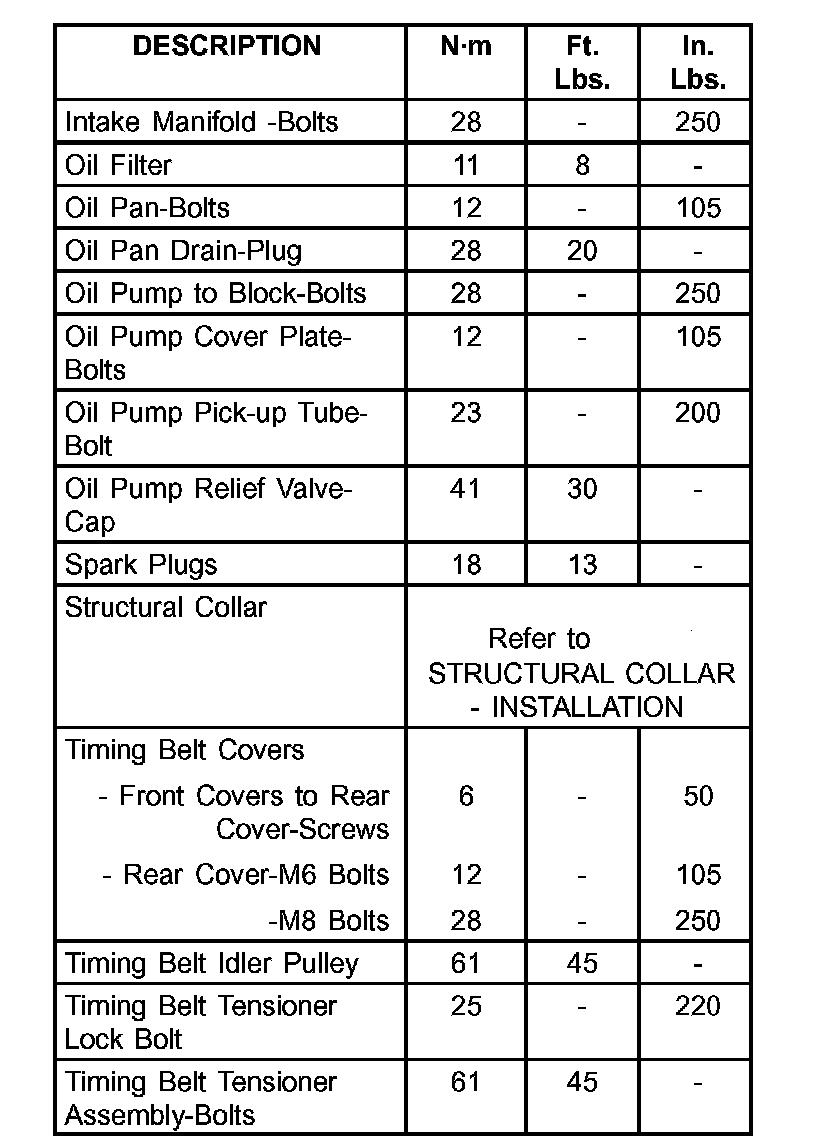

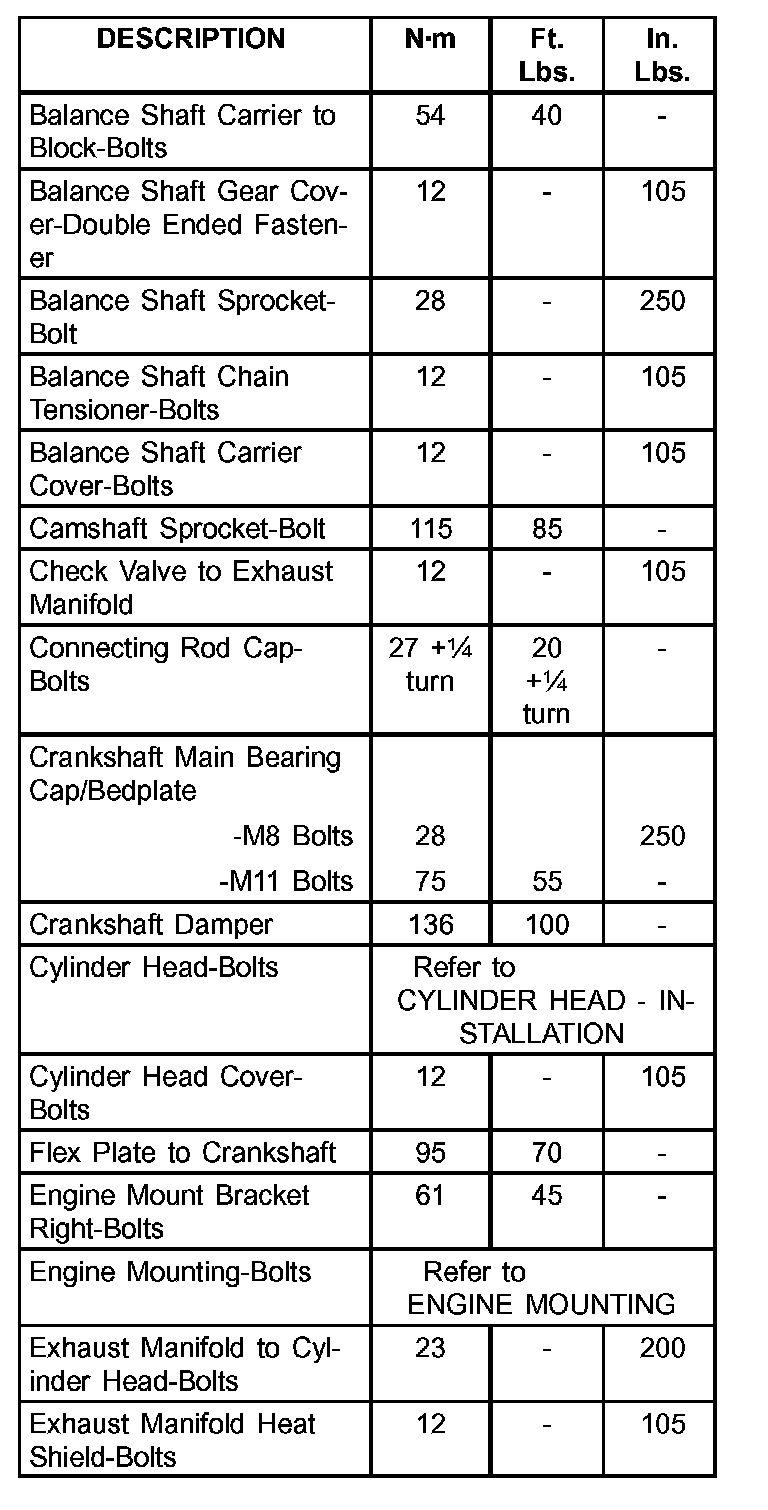

Engine Torque Specifications

TORQUE:




TORQUE:





Bolts-Water Pump Mounting 2.4L/2.7L 12 Nm (105 inch lbs.)
