Service Specifications

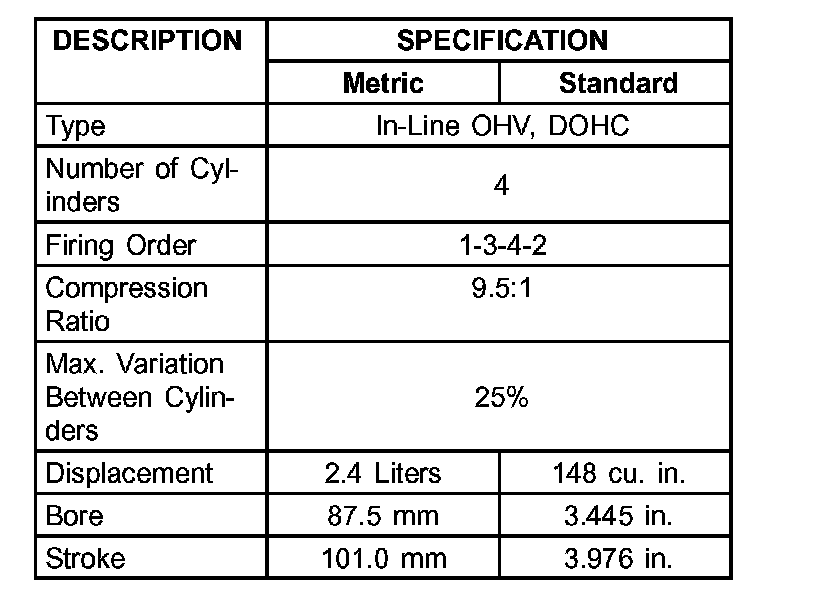

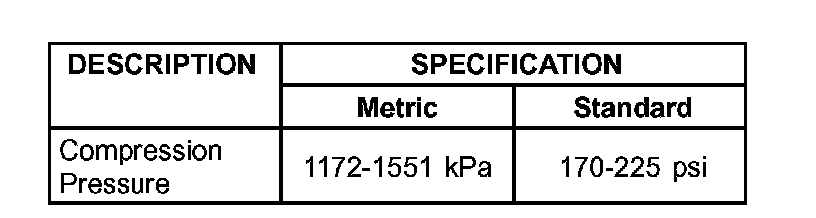

GENERAL SPECIFICATIONS:

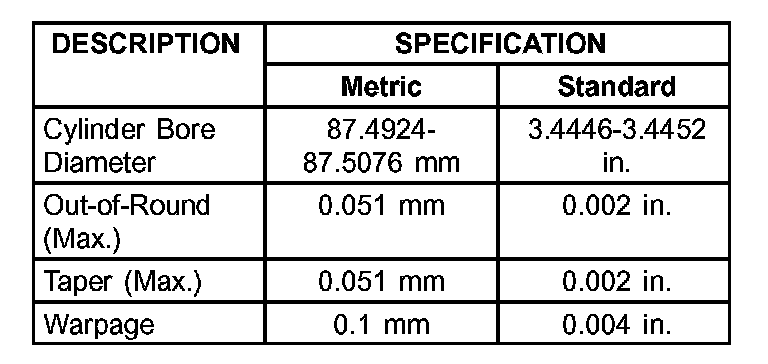

CYLINDER BLOCK:

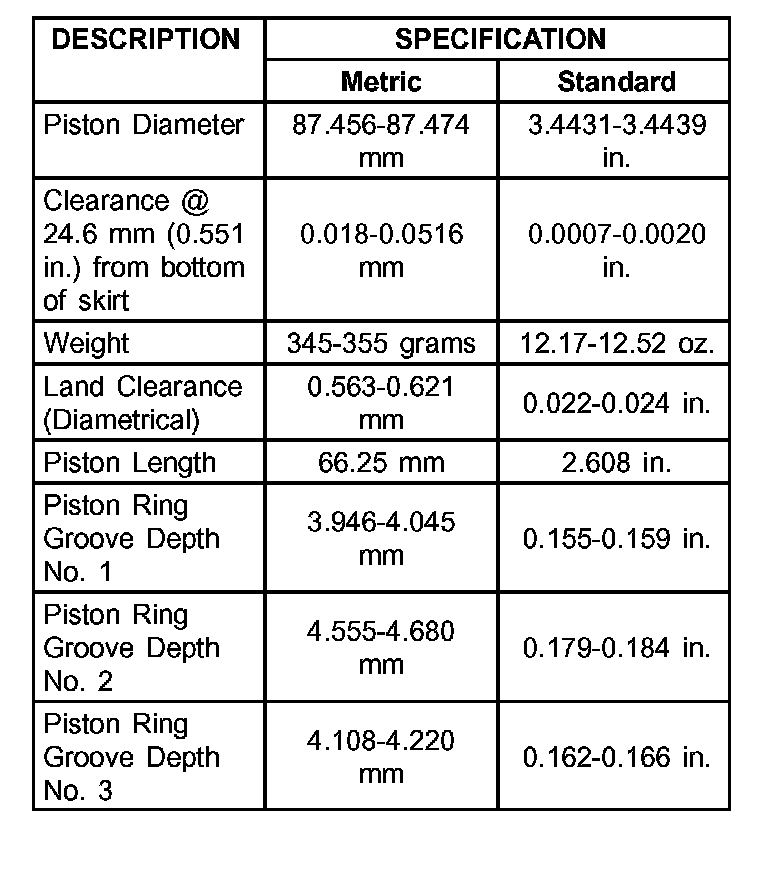

PISTONS:

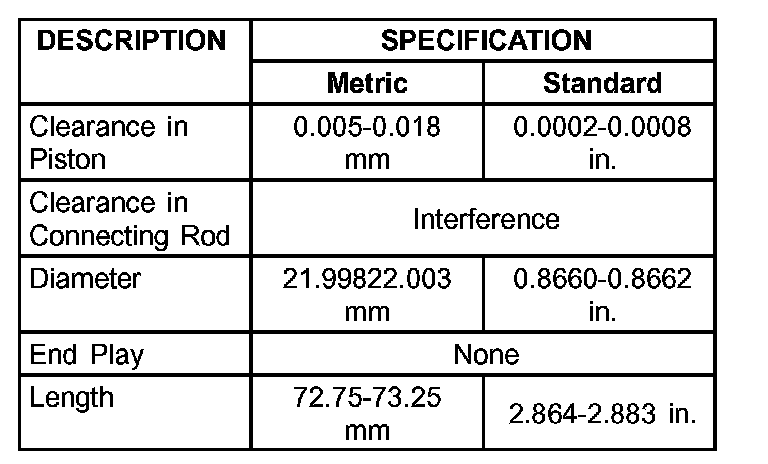

PISTON PINS:

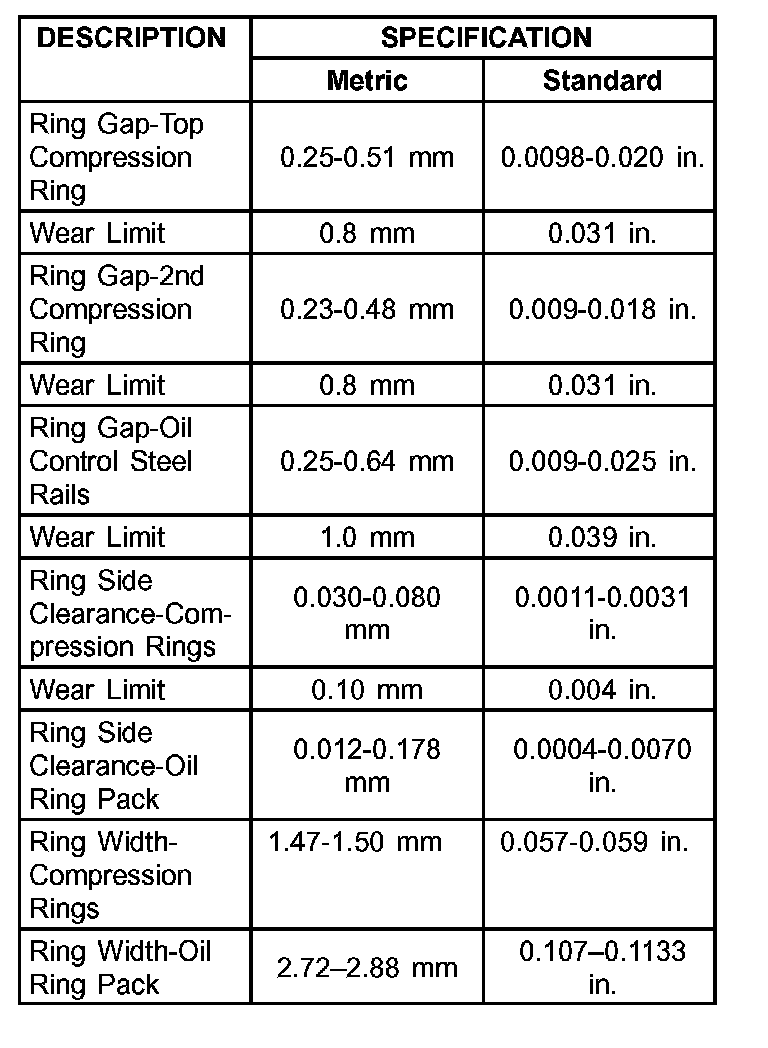

PISTON RINGS:

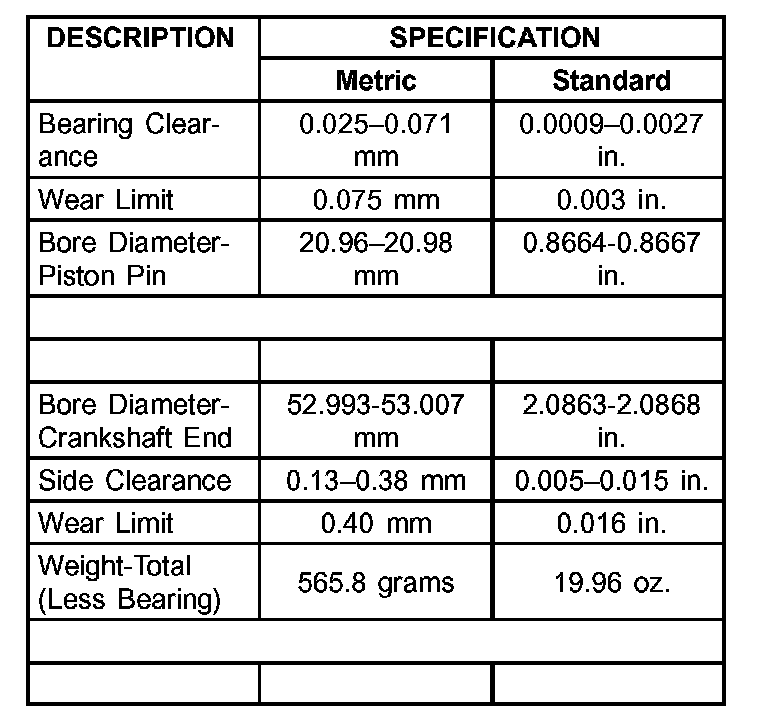

CONNECTING ROD:

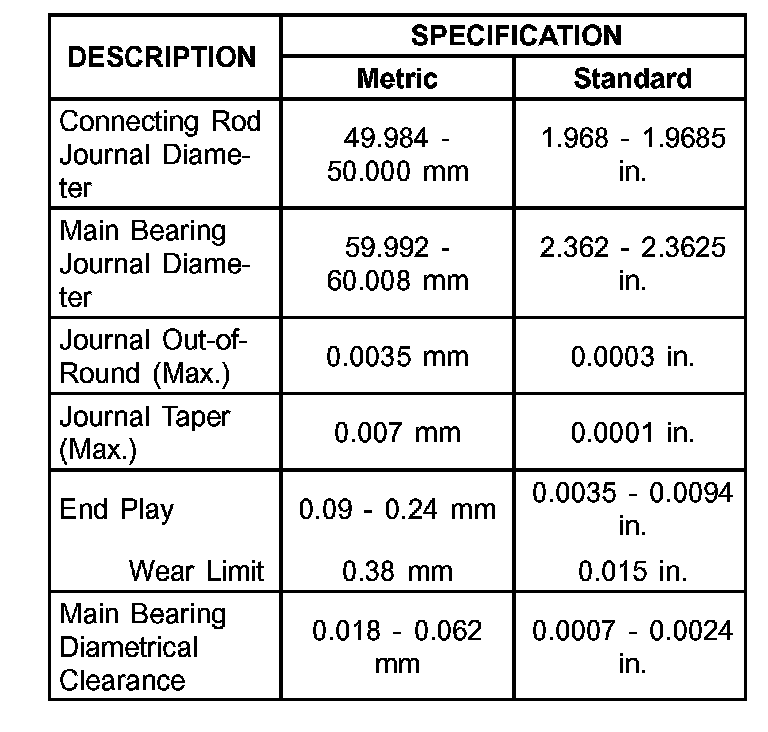

CRANKSHAFT:

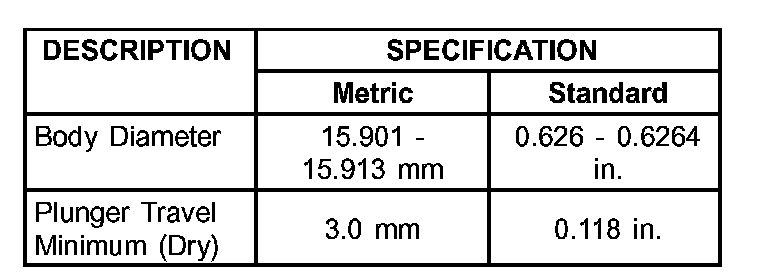

HYDRAULIC LASH ADJUSTER:

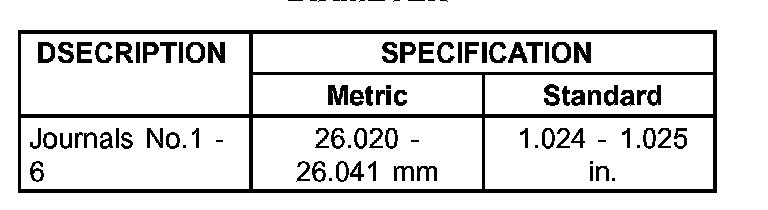

CYLINDER HEAD CAMSHAFT BEARING BORE DIAMETER:

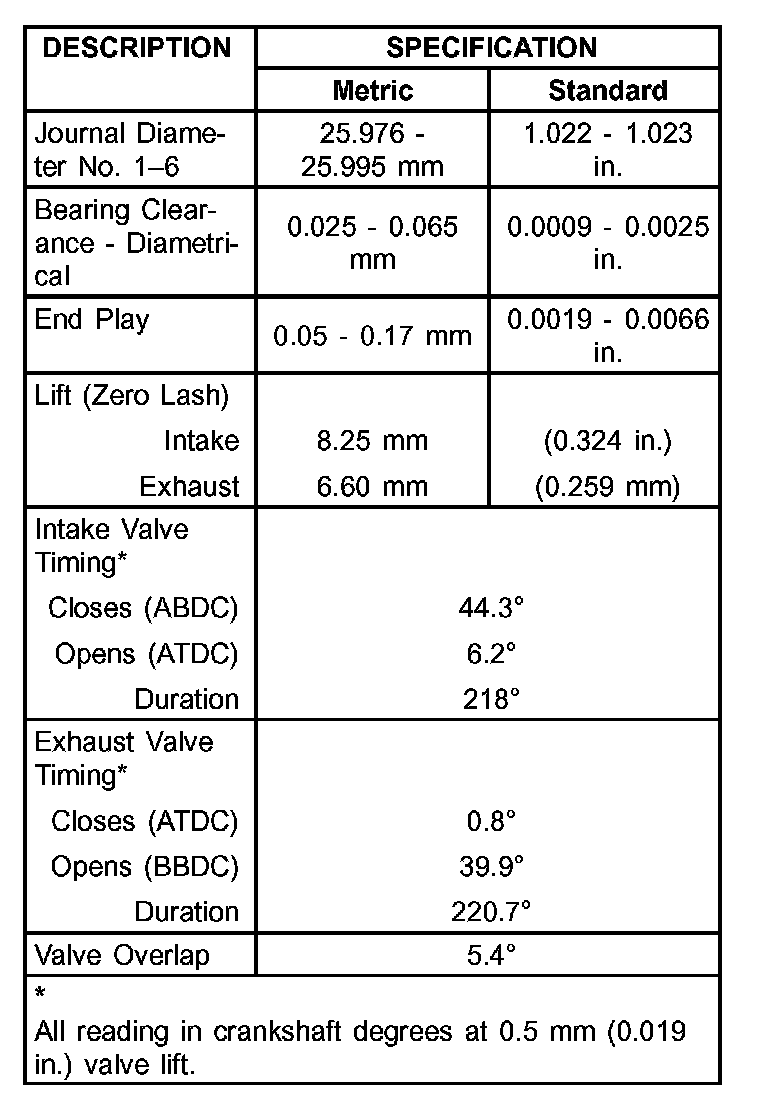

CAMSHAFT:

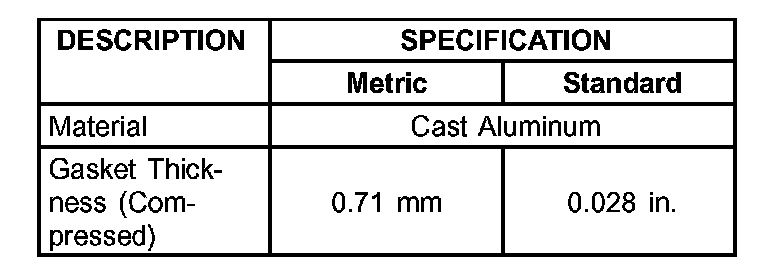

CYLINDER HEAD:

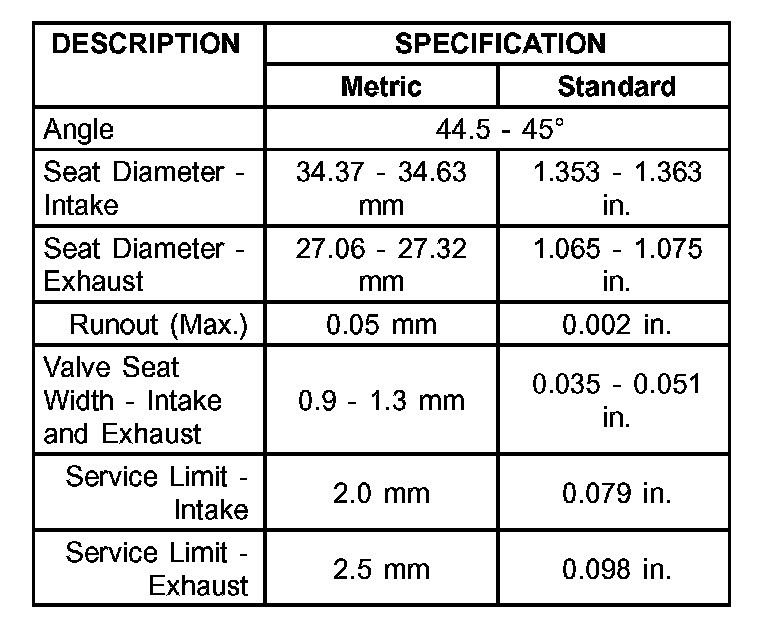

VALVE SEAT:

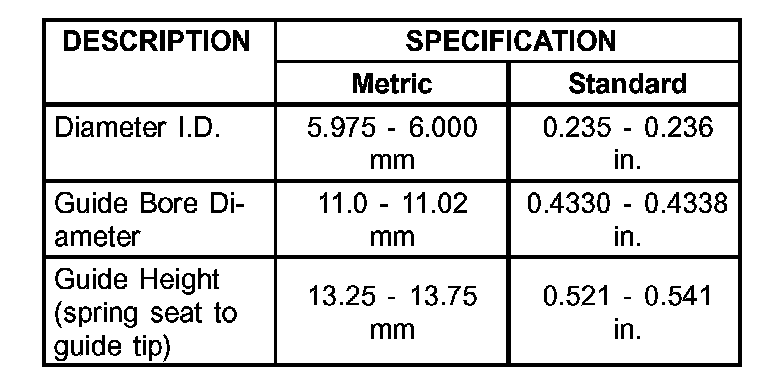

VALVE GUIDE:

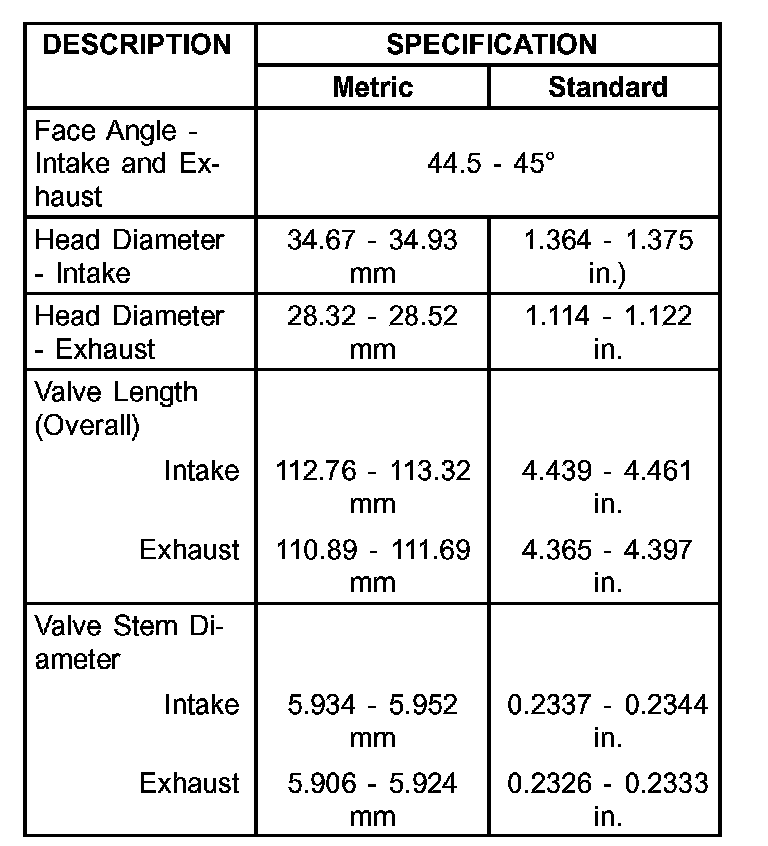

VALVES:

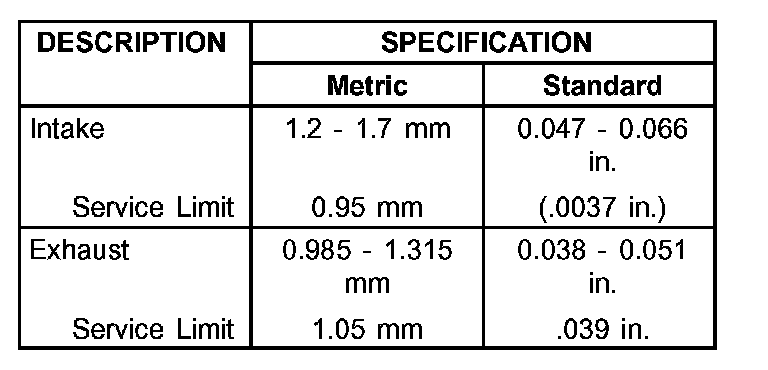

VALVE MARGIN:

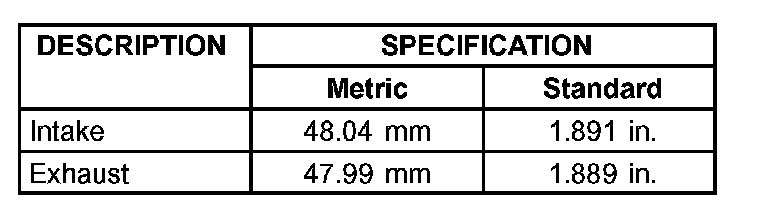

VALVE STEM TIP HEIGHT:

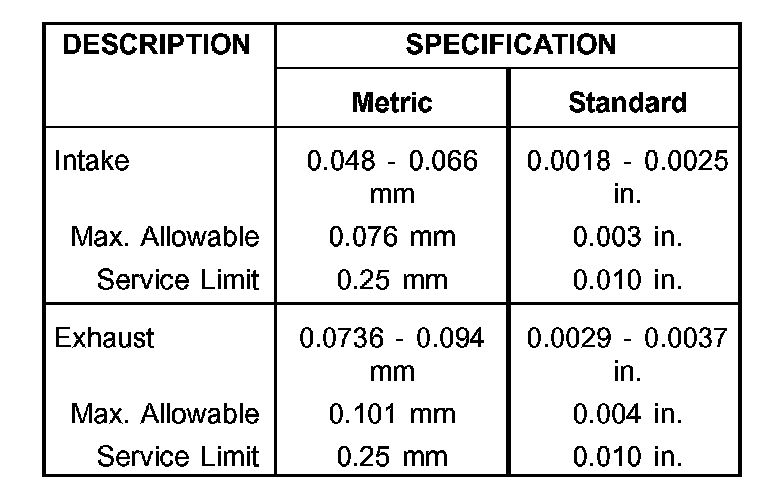

VALVE STEM TO GUIDE CLEARANCE:

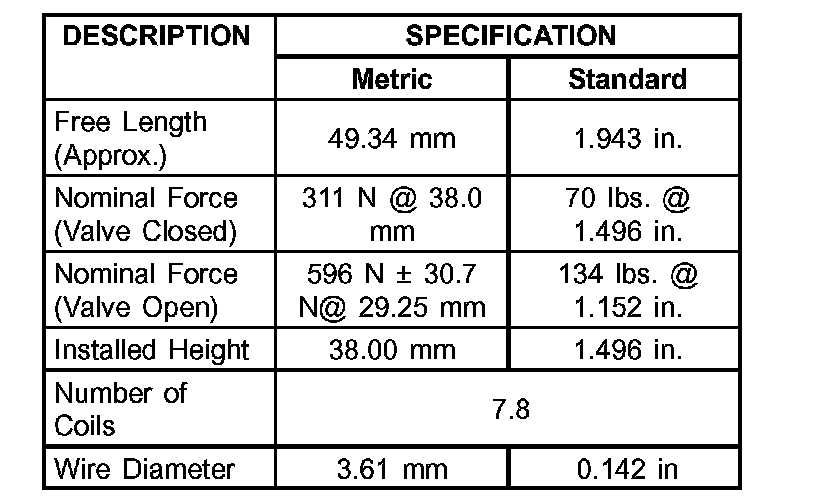

VALVE SPRINGS:

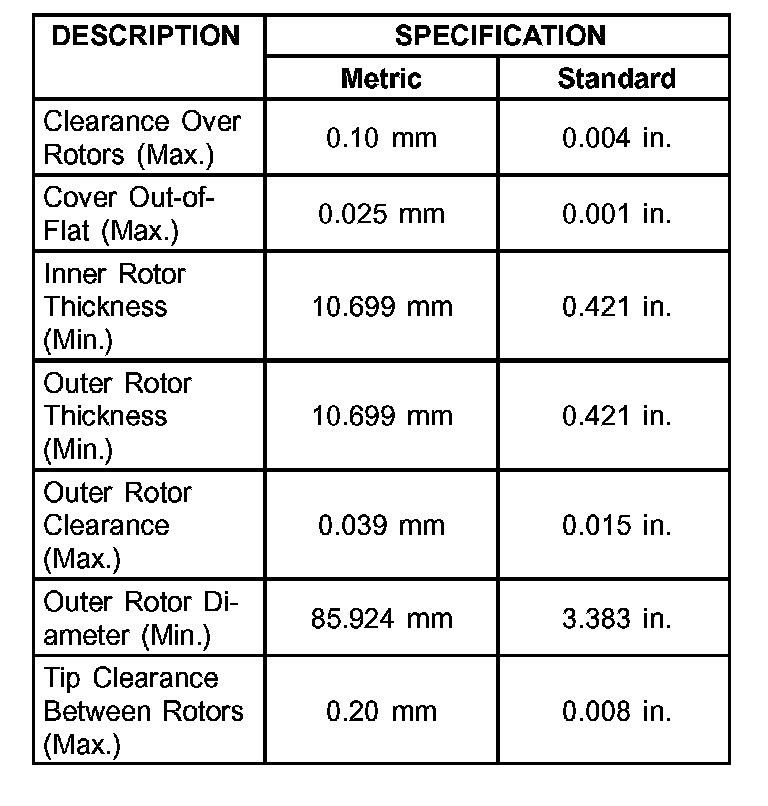

OIL PUMP:

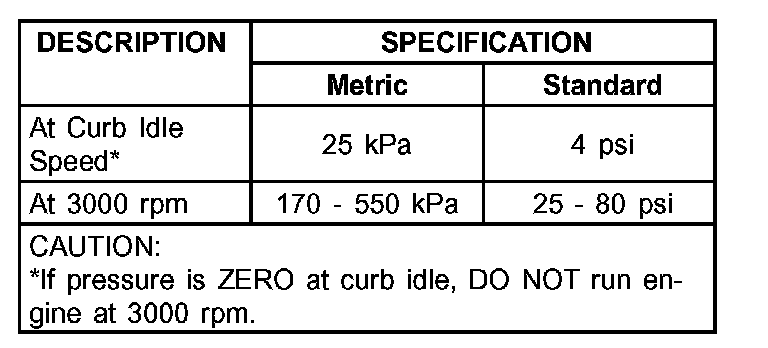

OIL PRESSURE:
